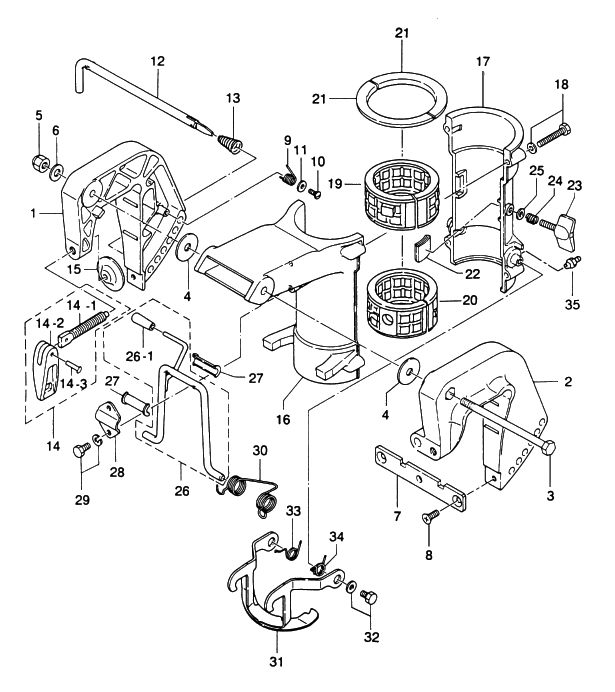

11. BRACKET - REVERSE LOCK ARM

Click Here for Microfiche Usage Tip
(1) STERN BRACKET RIGHT(2) STERN BRACKET LEFT(3) BOLT, 8-122(4) WASHER, 8.5-28-1(4) WASHER, 8.5-28-1(5) NYLON NUT, 8-P1.25(6) WASHER(7) DISTANCE PLATE, BRACKET(8) SCREW(9) SPRING, STERN BRACKET(10) SCREW(11) WASHER, 4.3-16-1.5(12) THRUST ROD(13) SPRING, THRUST ROD(14) CLAMP SCREW ASSY(14-1) CLAMP SCREW(14-2) HANDLE, CLAMP SCREW(14-3) RIVET, 3-22(15) PAD, CLAMP SCREW(16) SWIVEL BRACKET "A"(17) SWIVEL BRACKET "B"(18) BOLT(19) BUSHING UPPER, STEERING(20) BUSHING LOWER, STEERING(21) THRUST PLATE(21) THRUST PLATE(22) FRICTION PLATE, BRACKET(23) SCREW, FRICTION PLATE(24) SPRING, FRICTION PLATE(25) WASHER(26) TILT STOPPER(26-1) GRIP, TILT STOPPER(27) BUSHING, TILT STOPPER(27) BUSHING, TILT STOPPER(28) SET PLATE, TILT STOPPER(29) BOLT(30) SPRING, TILT STOPPER(31) REVERSE LOCK ARM(32) BOLT(33) SPRING "R", REVERSE LOCK ARM(34) SPRING "L", REVERSE LOCK ARM(35) GREASE NIPPLE



Parts List
2003 :: 5 HP :: 2 Stroke Nissan NS5B :: BRACKET - REVERSE LOCK ARM
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STERN BRACKET R 369S621123 369S62112-3 STARBOARD $57.36 1
(2) STERN BRACKET L 369S621132 369S62113-2 PORT $57.36 1
(3) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(4) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(5) NYLON NUT 8-P1.25 9304460800M 930446-0800 $1.99 1 Sold Out View More Details
(6) WASHER 9401130800M 940113-0800 $0.84 1
(7) DISTANCE PLATE BRACKET 369621180M 369-62118-0 $6.47 1
(8) SCREW 9216130612M 921613-0612 $0.98 2
(9) CLAMP BRACKET SPRING 369621461M 369-62146-1 $2.31 1
(10) SCREW 9207030406M 920703-0406 $0.67 1
(11) WASHER 4.3-16-1.5 369621470M 369-62147-0 $0.76 1
(12) THRUST ROD 350621211M 350-62121-1 $20.96 1
(13) THRUST ROD SPRING 369621222M 369-62122-2 $1.85 1 Sold Out View More Details
(14) CLAMP SCREW ASSY 369S621001 369S62100-1 $26.51 2
(14-1) CLAMP SCREW 369621030M 369-62103-0 $22.95 2
(14-2) HANDLE CLAMP SCREW 307S621021 307S62102-1 $9.29 2
(14-3) RIVET 3C8621041M 3C8-62104-1 $0.92 2
(15) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(16) SWIVEL BRACKET A 369S623912 369S62391-2 $108.15 1
(17) SWIVEL BRACKET B 393S623921 393S62392-1 $31.46 1
(18) BOLT 9101135635M 910113-5635 $1.96 4 Sold Out View More Details
(19) STEERING BUSHING 393624160M 393-62416-0 $12.66 1
(20) BUSHING LOWER STEERING 393624170M 393-62417-0 $12.66 1
(21) THRUST PLATE 369624220M 369-62422-0 $4.40 2
(22) FRICTION PLATE BRACKET 369624411M 369-62441-1 $6.65 2
(23) FRICTION PLATE SCREW 309S624422 309S62442-2 $8.17 1
(24) FRICTION PLATE SPRING 309624461M 309-62446-1 $1.59 1
(25) WASHER 9401130600M 940113-0600 $0.83 1
(26) TILT STOPPER ASSY 393S624312 393S62431-2 $22.08 1
(26-1) TILT STOPPER GRIP 393624330M 393-62433-0 $1.82 1
(27) TILT STOPPER BUSHING 393624370M 393-62437-0 $2.25 2
(28) TILT STOPPER SETTING PLATE 369624391M 369-62439-1 $4.40 1
(29) BOLT 9101135612M 910113-5612 $1.07 2
(30) TILT STOPPER SPRING 369624340M 369-62434-0 $10.12 1
(31) REVERSE LOCK ARM 369663130M 369-66313-0 $39.13 1
(32) BOLT 9101135614M 910113-5614 $1.07 2
(33) REVERSE LOCK ARM SPRING (RIGHT) 369663380M 369-66338-0 $2.31 1
(34) REVERSE LOCK ARM SPRING (LEFT) 369663390M 369-66339-0 $2.31 1
(35) GREASE FITTING 344671770M 344-67177-0 $2.56 2 Sold Out View More Details
