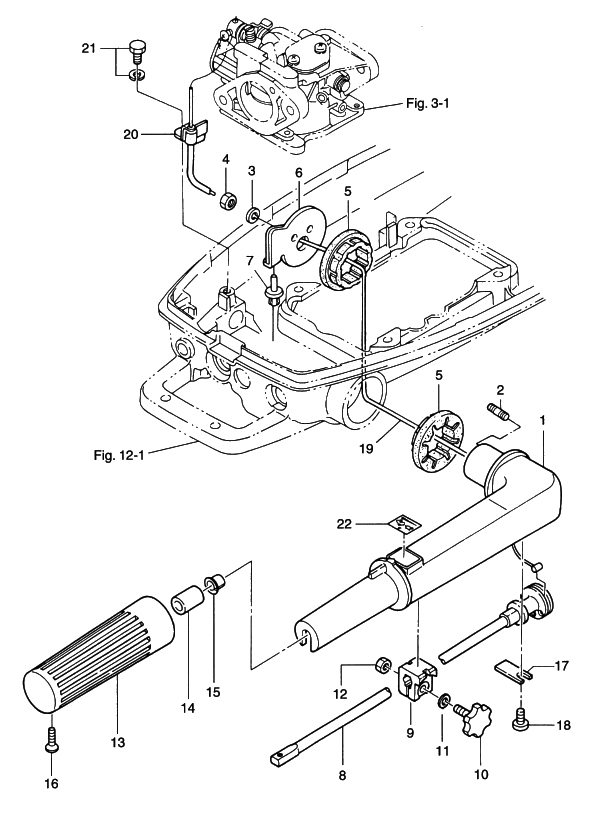

5. HANDLE - THROTTLE

Click Here for Microfiche Usage Tip
(1) STEERING HANDLE(2) STUD BOLT(3) SPRING WASHER(4) NUT(5) BUSHING, HANDLE(5) BUSHING, HANDLE(6) STOPPER, STEERING HANDLE(7) PLASTIC RIVET, 6.5(8) THROTTLE SHAFT(9) FRICTION PIECE, GRIP(10) ADJUST SCREW(11) WASHER(12) NUT(13) GRIP(14) RUBBER, THROTTLE SHAFT(15) BUSHING, 8.4-10-11(16) SCREW(17) SUPPORTER, THROTTLE SHAFT(18) SCREW(19) THROTTLE CABLE(20) BRACKET, THROTTLE CABLE(21) BOLT(22) LABEL, THROTTLE



Parts List
2003 :: 5 HP :: 2 Stroke Nissan NS5B :: HANDLE - THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STEERING HANDLE 3B2S630111 3B2S63011-1 $44.58 1
(2) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(4) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 2
(5) TILLER HANDLE BUSHING 369631020M 369-63102-0 $5.07 2
(6) STOPPER STEERING HANDLE 369631031M 369-63103-1 $11.96 1
(7) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(8) THROTTLE SHAFT 3B2630410M 3B2-63041-0 $18.64 1
(9) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(10) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(11) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 2
(12) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(13) GRIP 369630121M 369-63012-1 $29.88 1
(14) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(15) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 1
(16) SCREW 9208030518M 9208E3-0518 $0.92 1
(17) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(18) SCREW 9215030612M 921513-0612 OR 921513-0612 $0.93 1
(19) THROTTLE CABLE 369636001M 369-63600-1 $8.80 1
(20) BRACKET THROTTLE CABLE 369635080M 369-63508-0 $5.53 1
(21) BOLT 9101216612M 910121-6612 $0.70 1
(22) THROTTLE DECAL 369720191M 369-72019-1 $1.20 1
