15. ASSEMBLY - KITS

Click Here for Microfiche Usage Tip

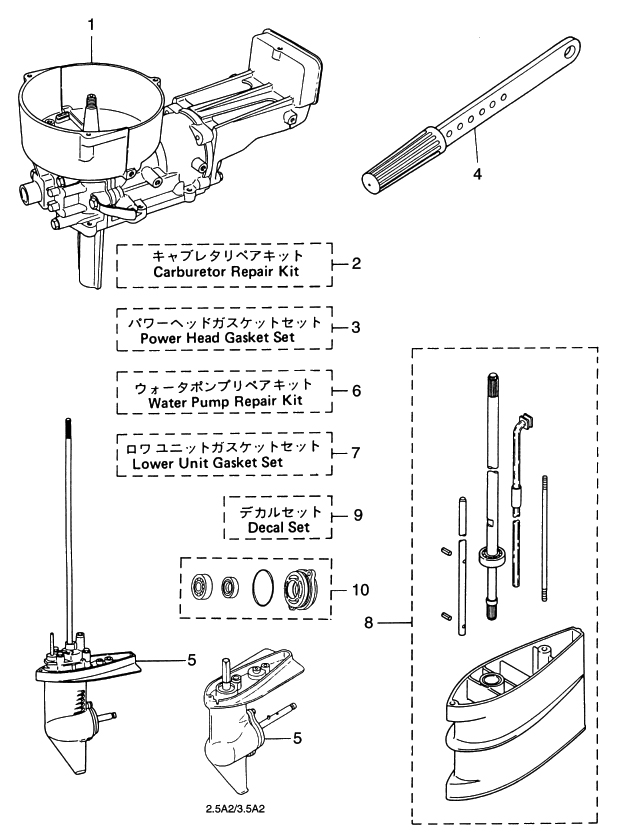

(1) ENGINE SHORT BLOCK(2) CARBURETOR REPAIR KIT(2) CLIP, JET NEEDLE(2) JET NEEDLE(2) GASKET, FLOAT CHAMBER(2) FLOAT(2) GASKET, DRAIN SCREW(2) PIN, FLOAT HINGE(2) FLOAT HINGE(2) NEEDLE VALVE(2) SEAT, NEEDLE VALVE(2) SLOW STOP SCREW(2) SCREW(2) O-RING, 2.4-15.7(3) POWER HEAD GASKET SET(3) GASKET, CYLINDER HEAD(3) GASKET, CRANK CASE HEAD(3) OIL SEAL, 10.1-20-7(3) OIL SEAL, 20-42-8(3) OIL SEAL, 15-35-15(3) GASKET, DRIVE SHAFT HOUSING(4) HANDLE ASSY(5) LOWER UNIT ASSY(6) WATER PUMP REPAIR KIT(6) IMPELLER, WATER PUMP(6) KEY, WATER PUMP IMPELLER(6) LINER, PUMP CASE(6) GASKET, PUMP CASE(6) GUIDE PLATE, WATER PUMP(6) GASKET, GUIDE PLATE(6) BOLT(6) WASHER(7) LOWER UNIT GASKET SET(7) OIL SEAL, 12-24-8(7) O-RING, 1.5-47.75(7) GASKET, 8.1-15-1(8) EXTENSION HOUSING KIT "L"(9) DECAL SET(9) DECAL SET(10) PROPELLER SHAFT HOUSING ASSY



Parts List
2003 :: 3.5 HP :: 2 Stroke Nissan NS3.5A2 :: ASSEMBLY - KITS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE SHORT BLOCK 309B871002 309B87100-2 INCL. D-S HOUSING GASKET & SPARK PLUG $593.35 1
(2) CARBURETOR REPAIR KIT 3F0871221M 3F0871221M $38.02 1
(2) CLIP JET NEEDLE 309031540M 309-03154-0 $2.14 1
(2) JET NEEDLE 3F0031533M 3F0-03153-3 $3.96 1
(2) GASKET FLOAT CHAMBER 309031210M 309-03121-0 $2.31 1
(2) FLOAT 309031250M 309-03125-0 $9.46 1
(2) GASKET DRAIN SCREW 309031930M 309-03193-0 $1.11 1
(2) PIN FLOAT HINGE 309031260M 309-03126-0 $1.41 1
(2) FLOAT HINGE 309031271M 309-03127-1 $5.92 1
(2) NEEDLE VALVE 309031471M 309-03147-1 $7.28 1
(2) SEAT NEEDLE VALVE 309031481M 309-03148-1 $8.51 1
(2) SLOW STOP SCREW 309031560M 309-03156-0 $3.00 1
(2) SCREW 9215326410M 921532-6410 $1.43 2 Sold Out View More Details
(2) O-RING 2.4-15.7 309031162M 309-03116-2 $3.43 1
(3) POWER HEAD GASKET SET 309871211M 309-87121-1 $27.28 1
(3) GASKET CYLINDER HEAD 309010051M 309-01005-1 $24.24 1
(3) GASKET CRANK CASE HEAD 3F0012140M 3F0-01214-0 NOT FOR 2.5A2/3.5A2 MODELS $1.85 0
(3) OIL SEAL 10.1-20-7 3F0012150M 3F0-01215-0 NOT FOR 2.5A2/3.5A2 MODELS $5.55 0
(3) OIL SEAL 20-42-8 309001210M 309-00121-0 $4.00 1
(3) OIL SEAL 15-35-15 309001220M 309-00122-0 $10.59 1
(3) GASKET DRIVE SHAFT HOUSING 309610121M 309-61012-1 $6.07 1
(4) HANDLE ASSY 309S630100 309S63010-0 $27.66 1
(5) LOWER UNIT ASSY 309S873011 309S87301-1 FOR TRANSOM S $0.00 1 Sold Out View More Details
(6) WATER PUMP REPAIR KIT 3F0873220M 3F0-87322-0 NOT FOR 2.5A2/3.5A2 MODELS $27.69 0
(6) WATER PUMP IMPELLER 369650211M 369-65021-1 NOT FOR 2.5A2/3.5A2 MODELS $7.43 0
(6) WATER PUMP IMPELLER KEY 369650220M 369-65022-0 NOT FOR 2.5A2/3.5A2 MODELS $1.50 0
(6) PUMP CASE LINER 3F0650110M 3F0-65011-0 NOT FOR 2.5A2/3.5A2 MODELS $9.20 0
(6) PUMP CASE GASKET (UPPER) 3F0650180M 3F0-65018-0 NOT FOR 2.5A2/3.5A2 MODELS $2.07 0
(6) GUIDE PLATE WATER PUMP 3F0650250M 3F0-65025-0 NOT FOR 2.5A2/3.5A2 MODELS $5.29 0
(6) PUMP GUIDE PLATE GASKET 3F0650290M 3F0-65029-0 NOT FOR 2.5A2/3.5A2 MODELS $2.07 0
(6) BOLT 9161030645M 916103-0645 NOT FOR 2.5A2/3.5A2 MODELS $2.58 0
(6) WASHER 9401030600M 940103-0600 NOT FOR 2.5A2/3.5A2 MODELS $0.70 0
(7) LOWER UNIT GASKET SET 309873210M 309-87321-0 $6.03 1
(7) OIL SEAL 12-24-8 309601110M 309-60111-0 $6.90 1
(7) O-RING 1.5-47.75 309650150M 309-65015-0 $2.31 1
(7) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(8) EXTENSION HOUSING KIT L 3F0S873121 3F0S87312-1 NOT FOR 2.5A2/3.5A2 $0.00 0 Sold Out View More Details
(9) DECAL SET 309S878016 309S87801-6 M3.5A2 #93114~ / TOHATSU $0.00 1 Sold Out View More Details
(9) DECAL SET 313878015M 313878015M NS3.5A2 #93114~ / NISSAN $0.00 1 Sold Out View More Details
(10) PROPELLER SHAFT HOUSING ASSY 3F0S873231 3F0S87323-1 NOT FOR 2.5A2/3.5A2 MODELS $0.00 0 Sold Out View More Details
