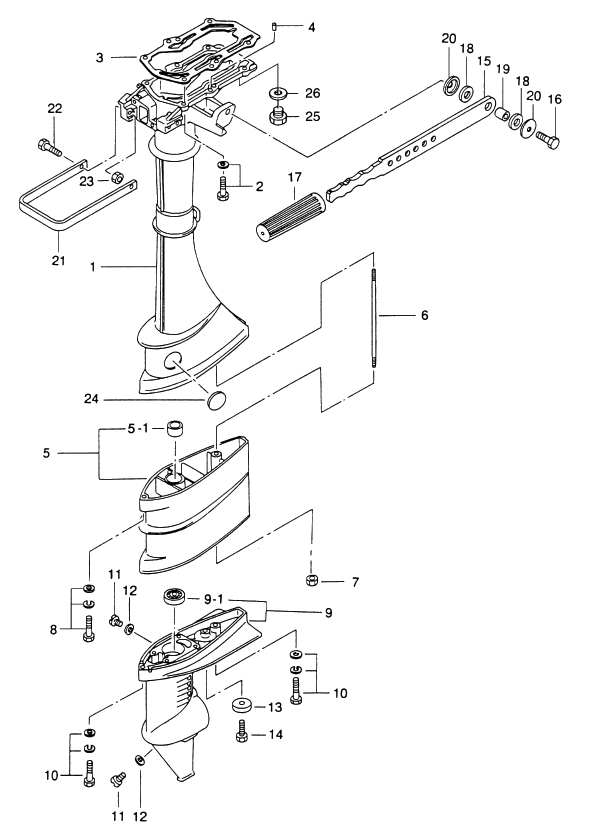

6. 3.5B2 MODEL ONLY - DRIVE SHAFT HOUSING GEAR CASE & STEERING HANDLE

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING "S"(2) BOLT(3) GASKET, DRIVE SHAFT HOUSING(4) KNOCK, 6-12(5) EXTENSION HOUSING "L"(5-1) BUSHING, DRIVE SHAFT(6) STUD BOLT, 6-171(7) NUT(8) BOLT(9) GEAR CASE(9-1) BALL BEARING, 6000(10) BOLT(10) BOLT(11) OIL PLUG(11) OIL PLUG(12) GASKET, 8.1-15-1(12) GASKET, 8.1-15-1(13) ANODE(14) BOLT(15) STEERING HANDLE(16) BOLT(17) GRIP, STEERING HANDLE(18) DAMPER RUBBER, STEERING HANDLE(18) DAMPER RUBBER, STEERING HANDLE(19) SPACER, 8.4-12-14.2(20) WASHER, 6.5-21-1(20) WASHER, 6.5-21-1(21) CARRYING HANDLE(22) BOLT(23) NUT(24) GROMMET, 29-3(25) WATER PLUG(26) GASKET, 8.1-15-1



Parts List
2003 :: 3.5 HP :: 2 Stroke Nissan NS3.5A2 :: 3.5B2 MODEL ONLY - DRIVE SHAFT HOUSING GEAR CASE & STEERING HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3F0S610201 3F0S610201 NOT FOR 2.5A2/3.5A2 MODELS $0.00 0 Sold Out View More Details
(2) BOLT 9101135625M 910113-5625 NOT FOR 2.5A2/3.5A2 MODELS $1.47 0
(3) GASKET DRIVE SHAFT HOUSING 309610121M 309-61012-1 NOT FOR 2.5A2/3.5A2 MODELS $6.07 0
(4) DOWEL PIN 6-12 345011110M 345-01111-0 NOT FOR 2.5A2/3.5A2 MODELS $1.30 0
(5) EXTENSION HOUSING L 3F0S611021 3F0S61102-1 NOT FOR 2.5A2/3.5A2 MODELS $181.79 0 Sold Out View More Details
(5-1) DRIVE SHAFT BUSHING 369600030M 369-60003-0 NOT FOR 2.5A2/3.5A2 MODELS $20.22 0 Sold Out View More Details
(6) STUD BOLT 6-171 3F0611011M 3F0-61101-1 NOT FOR 2.5A2/3.5A2 MODELS $14.95 0
(7) NUT 9301130600M 930113-0600 NOT FOR 2.5A2/3.5A2 MODELS $0.84 0
(8) BOLT 9101137635M 910113-7635 NOT FOR 2.5A2/3.5A2 MODELS $2.35 0
(9) GEAR CASE 3F0S600001 3F0S60000-1 NOT FOR 2.5A2/3.5A2 MODELS $0.00 0 Sold Out View More Details
(9-1) BALL BEARING 6000 960106000M 9601-0-6000 NOT FOR 2.5A2/3.5A2 MODELS $11.19 0
(10) BOLT 9101137635M 910113-7635 NOT FOR 2.5A2/3.5A2 MODELS $2.35 0
(11) WATER PLUG 332600052M 332-60005-2 NOT FOR 2.5A2/3.5A2 MODELS $5.07 0
(12) GASKET 8.1-15-1 332600060M 332-60006-0 NOT FOR 2.5A2/3.5A2 MODELS $0.86 0
(13) ANODE 338602182M 338-60218-2 NOT FOR 2.5A2/3.5A2 MODELS $9.20 0
(14) BOLT 9101030616M 910113-0616 NOT FOR 2.5A2/3.5A2 MODELS $0.98 0
(15) STEERING HANDLE 309S630110 309S63011-0 NOT FOR 2.5A2/3.5A2 MODELS $19.84 0
(16) BOLT 9101030830M 910103-0830 NOT FOR 2.5A2/3.5A2 MODELS $1.38 0
(17) GRIP STEERING HANDLE 309630120M 309-63012-0 NOT FOR 2.5A2/3.5A2 MODELS $8.52 0
(18) DAMPER RUBBER STEERING HANDLE 309630240M 309-63024-0 NOT FOR 2.5A2/3.5A2 MODELS $2.07 0
(19) SPACER 8.4-12-14.2 309630250M 309-63025-0 NOT FOR 2.5A2/3.5A2 MODELS $1.61 0
(20) WASHER RUBBER MOUNT 345671150M 345-67115-0 NOT FOR 2.5A2/3.5A2 MODELS $1.61 0
(21) CARRYING HANDLE 3F0S675210 3F0S67521-0 NOT FOR 2.5A2/3.5A2 MODELS $0.00 0 Sold Out View More Details
(22) BOLT 9101130625M 910113-0625 NOT FOR 2.5A2/3.5A2 MODELS $0.95 0
(23) NUT 9301130600M 930113-0600 NOT FOR 2.5A2/3.5A2 MODELS $0.84 0
(24) GROMMET 29-3 369610160M 369-61016-0 NOT FOR 2.5A2/3.5A2 MODELS $3.27 0
(25) WATER PLUG 9106130808M 910613-0808 NOT FOR 2.5A2/3.5A2 MODELS $2.12 0
(26) GASKET 8.1-15-1 332600060M 332-60006-0 NOT FOR 2.5A2/3.5A2 MODELS $0.86 0
