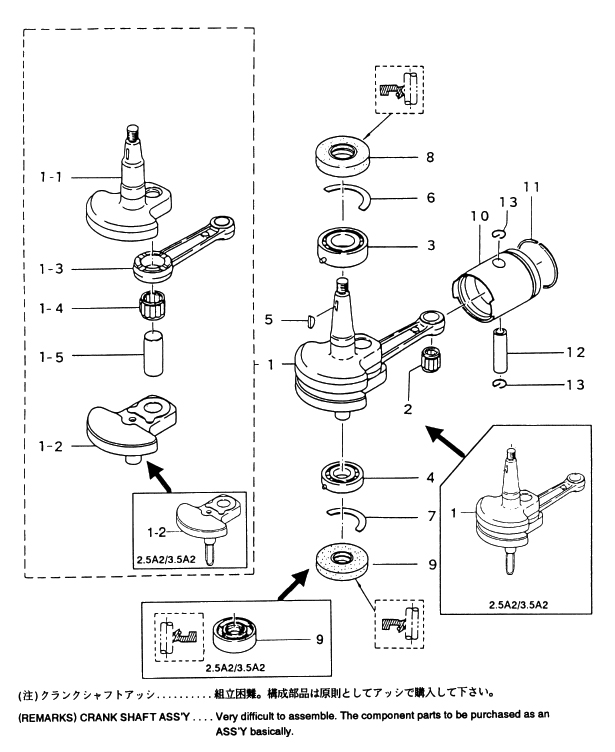

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANK SHAFT(1) CRANK SHAFT(1-1) CRANK SHAFT "A"(1-2) CRANK SHAFT "D"(1-2) CRANK SHAFT "D"(1-3) CONNECTING ROD(1-4) NEEDLE BEARING,16-22-12(1-5) CRANK PIN(2) NEEDLE BEARING,10.5-14-15(3) BALL BEARING, 6004(4) BALL BEARING, 6202(5) KEY, MAGNETO(6) THRUST PLATE, UPPER(7) THRUST PLATE, LOWER(8) OIL SEAL, 20-42-8(9) OIL SEAL, 15-35-15(9) OIL SEAL, 15-35-15(10) PISTON (STD)(10) PISTON (0.5MM O/S)(11) PISTON RING (STD)(11) PISTON RING (0.5MM O/S)(12) PISTON PIN(13) CLIP, PISTON PIN(13) CLIP, PISTON PIN



Parts List
2003 :: 3.5 HP :: 2 Stroke Nissan NS3.5A2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANK SHAFT 309000300M 309-00030-0 2.5A2 # 90713 ~ $266.94 1
(1-1) CRANK SHAFT A 309000310M 309-00031-0 2.5A2 # 90713 ~ $0.00 1 Sold Out View More Details
(1-2) CRANK SHAFT D 309000340M 309-00034-0 $0.00 1 Sold Out View More Details
(1-3) CONNECTING ROD 309000400M 309-00040-0 $59.83 1
(1-4) NEEDLE BEARING 16-22-12 309000430M 309-00043-0 $10.12 1
(1-5) CRANK PIN 309000610M 309-00061-0 $10.59 1
(2) NEEDLE BEARING 10.5-14-15 309000420M 309-00042-0 $8.77 1
(3) BALL BEARING 6004 964336004M 9643-3-6004 $15.33 1
(4) BALL BEARING 6202 964336202M 9643-3-6202 $13.25 1
(5) KEY 309001310M 309-00131-0 $2.31 1
(6) THRUST PLATE UPPER 309001060M 309-00106-0 $1.61 1
(7) THRUST PLATE LOWER 3F0001070M 3F0-00107-0 $1.85 1
(8) OIL SEAL 20-42-8 309001210M 309-00121-0 $4.00 1
(9) OIL SEAL 15-35-15 309001220M 309-00122-0 $10.59 1
(10) PISTON (STD) 309000010M 309-00001-0 $41.45 1
(10) PISTON (0.5MM O/S) 309000040M 309-00004-0 OPTION $43.73 1
(11) PISTON RING (STD) 302000110M 302-00011-0 $8.52 1
(11) PISTON RING (0.5MM O/S) 302000140M 302-00014-0 OPTION $14.08 1
(12) PISTON PIN 309000210M 309-00021-0 $6.65 1
(13) CLIP PISTON PIN 309000241M 309-00024-1 $0.90 2
