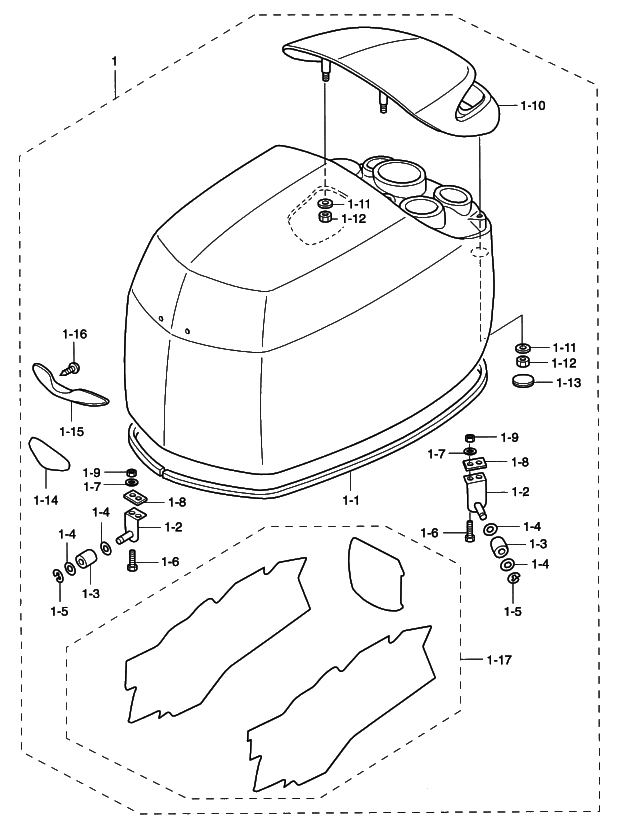

20. TOP COWL

Click Here for Microfiche Usage Tip
(1) TOP COWL(1) TOP COWL(1-1) TOP COWL SEAL(1-2) COVER STAY ASSY(1-2) COVER STAY ASSY(1) TOP COWL(1) TOP COWL(1-3) ROLLER(1-3) ROLLER(1-4) WASHER(1-4) WASHER(1-4) WASHER(1-4) WASHER(1-5) E-RING, D=5(1-5) E-RING, D=5(1-6) BOLT(1-6) BOLT(1-7) WASHER(1-7) WASHER(1-8) COVER STAY PLATE(1-8) COVER STAY PLATE(1-9) NYLON NUT(1-9) NYLON NUT(1-10) TILT HANDLE(1-11) WASHER, 6-16-1.5(1-11) WASHER, 6-16-1.5(1-12) NYLON NUT(1-12) NYLON NUT(1-13) GROMMET(1-14) FRONT MARK(1-14) FRONT MARK(1-15) COWL HANDLE(1-16) TAPPING SCREW, 6-16(1-17) DECAL SET(1-17) DECAL SET



Parts List
2006 :: 115 HP :: TLDI Tohatsu MD115A :: TOP COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOP COWL 3T1Q675102 3T1Q67510-2 TOHATSU $0.00 1 Sold Out View More Details
(1) TOP COWL 3T1Q675103 3T1Q67510-3 TOHATSU (WITH FILLER LID) $0.00 1 Sold Out View More Details
(1) TOP COWL 3U1N675102 3U1N67510-2 NISSAN $0.00 1 Sold Out View More Details
(1) TOP COWL 3U1Q675103 3U1Q67510-3 NISSAN (WITH FILLER LID) $0.00 1 Sold Out View More Details
(1-1) TOP COWL SEAL 3T1675011M 3T1-67501-1 $0.00 1 Sold Out View More Details
(1-2) COVER STAY ASSY 3T1675110M 3T1-67511-0 $16.24 3
(1-3) ROLLER 6.1-14.7 -14 3R0675170M 3R0-67517-0 $4.86 3
(1-4) WASHER 9401130600M 940113-0600 $0.83 6
(1-5) E-RING D=5 9453030500M 945303-0500 $0.86 3
(1-6) BOLT 9101030525M 910103-0525 $0.00 6 Sold Out View More Details
(1-7) WASHER 9401030500M 940103-0500 $0.53 12
(1-8) COVER STAY PLATE 3T1675160M 3T1-67516-0 $2.62 6
(1-9) NYLON NUT 5-P0.8 9304030500M 930403-0500 $1.47 6
(1-10) TILT HANDLE 3T1Q675210 3T1Q67521-0 $121.15 1
(1-11) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4
(1-12) NYLON NUT 6-P 1.0 9304030600M 930403-0600 $2.25 4
(1-13) GROMMET 3F3726180M 3F3-72618-0 $3.91 2
(1-14) FRONT MARK 3T1675310M 3T1-67531-0 TOHATSU $46.12 1 Sold Out View More Details
(1-14) FRONT MARK 3U1675310M 3U1-67531-0 NISSAN $0.00 1 Sold Out View More Details
(1-15) COWL HANDLE 3T1676600M 3T1-67660-0 $0.00 1 Sold Out View More Details
(1-16) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.27 2
(1-17) DECAL SET 3T1Q878020 3T1Q87802-0 TOHATSU $0.00 1 Sold Out View More Details
(1-17) DECAL SET 3U1N878020 3U1N87802-0 NISSAN $103.76 1 Sold Out View More Details
