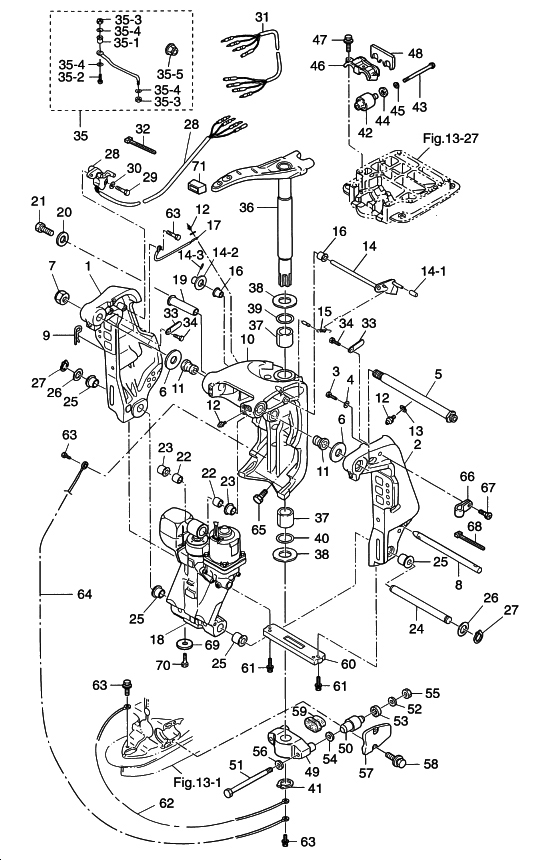

17. BRACKET

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (RIGHT)(2) CLAMP BRACKET (LEFT)(3) BOLT(4) WASHER(5) SWIVEL BRACKET SHAFT(6) WASHER, 25.7-50-1(6) WASHER, 25.7-50-1(7) NYLON NUT, 7/8(8) THRUST ROD(9) THRUST ROD PIN(10) SWIVEL BRACKET(11) BUSHING, 25.6-28.6-40(11) BUSHING, 25.6-28.6-40(12) GREASE FITTING(12) GREASE FITTING(12) GREASE FITTING(13) WASHER(14) TILT STOPPER(14-1) TILT STOPPER GRIP(14-2) WASHER,10.5-18-1.5(14-3) SPRING PIN(15) TILT STOPPER SPRING(16) COLLAR,10.2-12-12(16) COLLAR,10.2-12-12(17) GROUND CABLE(18) POWER TRIM & TILT(19) CYLINDER PIN (UPPER)(20) WASHER, 6.5-23-1.5(21) BOLT(22) BUSHING,18-24-19(22) BUSHING,18-24-19(23) BUSHING,18-20-20.5(23) BUSHING,18-20-20.5(24) CYLINDER PIN (LOWER)(25) BUSHING, 22-25.4-23.5(25) BUSHING, 22-25.4-23.5(25) BUSHING, 22-25.4-23.5(25) BUSHING, 22-25.4-23.5(26) WASHER, 22.6-30-2(26) WASHER, 22.6-30-2(27) C-RING, D=22(27) C-RING, D=22(28) TRIM SENSOR(28) TRIM SENSOR(28) TRIM SENSOR(28) TRIM SENSOR(29) BOLT(30) WASHER, 6-16-1.5(31) TRIM SENSOR EXTENSION CORD(31) TRIM SENSOR EXTENSION CORD(32) LEAD WIRE BAND, 100(33) CLAMP, 6.5-47.5P(33) CLAMP, 6.5-47.5P(34) BOLT(34) BOLT(35) DRAG LINK "H "(35-1) DRAG LINK SPACER(35-2) BOLT, 3/8-50(35-3) NYLON NUT, 3/8(35-3) NYLON NUT, 3/8(35-4) WASHER, 9.6-18-2(35-4) WASHER, 9.6-18-2(35-4) WASHER, 9.6-18-2(35-5) DRAG LINK SEAL RING(36) STEERING SHAFT(37) BUSHING, 32-40-45(37) BUSHING, 32-40-45(38) THRUST PLATE(38) THRUST PLATE(39) STEERING SHAFT SEAL RING(40) O-RING, 4.5-32(41) C-RING, D=32(42) RUBBER MOUNT (UPPER)(43) RUBBER MOUNT BOLT (UPPER)(44) RUBBER DAMPER (UPPER)(45) WASHER, 12.2-36-3(46) MOUNT HOLDING PLATE (UPPER)(47) BOLT(48) DAMPER (UPPER)(49) MOUNT BRACKET(50) RUBBER MOUNT (LOWER)(51) RUBBER MOUNT BOLT (LOWER)(52) WASHER, 13-34-3(53) RUBBER DAMPER, 21-36-5(54) WASHER,12.2-25-2(55) NUT,12-P1.5(56) WASHER(57) MOUNT HOLDING PLATE (LOWER)(58) BOLT, 8-25(59) RUBBER DAMPER (LOWER)(60) ANODE(61) BOLT(61) BOLT(62) GROUND CABLE(63) BOLT(63) BOLT(63) BOLT(63) BOLT(64) GROUND CABLE(65) BOLT, 12-20(66) CLAMP, 6.5-14L(67) SCREW(68) LEAD WIRE BAND, 104(69) ANODE(70) BOLT(71) STEERING ARM DAMPER "B"



Parts List
2006 :: 115 HP :: TLDI Nissan NSD115A :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3E0Q621120 3E0Q62112-0 STARBOARD $0.00 1 Sold Out View More Details
(2) CLAMP BRACKET (LEFT) 3E0Q621131 3E0Q62113-1 PORT $183.61 1
(3) BOLT 9102131020M 910213-1020 $0.00 1 Sold Out View More Details
(4) WASHER 9402131000M 940213-1000 $1.04 1 Sold Out View More Details
(5) SWIVEL BRACKET SHAFT 3E0621911M 3E0-62191-1 BRACKET BOLT $107.87 1 Sold Out View More Details
(6) WASHER 25.7-50-1 3E0621160M 3E0621160M $1.52 2
(7) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(8) THRUST ROD 3E0621211M 3E0-62121-1 $0.00 1 Sold Out View More Details
(9) R-PIN D=10 3B7621291M 3B7-62129-1 $10.81 1
(10) SWIVEL BRACKET 3E0Q623130 3E0Q62313-0 WITH PIN (3E0-62475-0) $463.29 1 Sold Out View More Details
(11) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.31 2
(12) GREASE FITTING 344671770M 344-67177-0 $2.56 5 Sold Out View More Details
(13) WASHER 9401130600M 940113-0600 $0.83 1
(14) TILT STOPPER 3Y9624310M 3Y9-62431-0 $53.45 1
(14-1) TILT STOPPER GRIP 3Y9624330M 3Y9-62433-0 $3.74 1
(14-2) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 1
(14-3) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(15) SPRING TILT STOPPER 3E0624731M 3E0-62473-1 $4.63 1 Sold Out View More Details
(16) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(17) GROUND CABLE 398623961M 398-62396-1 L=130 $5.75 1 Sold Out View More Details
(18) POWER TRIM & TILT 3T1771501M 3T1-77150-1 $2,971.55 1
(19) CYLINDER PIN (UPPER) 3C8770710M 3C8-77071-0 $10.81 1 Sold Out View More Details
(20) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 1
(21) BOLT 9101130612M 910113-0612 $0.84 1
(22) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.07 2
(23) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.31 2
(24) CYLINDER PIN (LOWER) 3E0771010M 3E0-77101-0 $49.09 1
(25) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.31 4
(26) WASHER 22.6-30-2 346624121M 346-62412-1 $2.08 2
(27) C-RING D=22 9451032200M 945103-2200 $1.85 2
(28) TRIM SENSOR 3F3725741M 3F3-72574-1 4 WIRE L=1700 $184.05 1
(28) TRIM SENSOR 3T1725740M 3T1-72574-0 2 WIRE $184.05 1
(29) BOLT 9101130620M 910113-0620 $1.04 2
(30) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(31) TRIM SENSOR EXTENSION CORD 3F3725731M 3F3-72573-1 4 WIRE L=6000 $135.75 1
(31) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 2 WIRE L=6000 $42.93 1
(32) LEAD WIRE BAND 100 353843980M 353-84398-0 $0.84 2
(33) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 3
(34) BOLT 9101130612M 910113-0612 $0.84 1
(35) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $154.19 1
(35-1) SPACER 3E0849140M 3E0-84914-0 $7.32 1
(35-2) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $11.28 1
(35-3) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(35-4) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(35-5) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
(36) STEERING SHAFT 3C7Q620100 3C7Q62010-0 $0.00 1 Sold Out View More Details
(37) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $7.59 2
(38) THRUST PLATE 3B7624231M 3B7-62423-1 $3.13 2
(39) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(40) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.00 1
(41) C-RING D=32 9451033200M 945103-3200 $2.01 1
(42) RUBBER MOUNT (UPPER) 3C7613010M 3C7-61301-0 $71.35 2
(43) RUBBER MOUNT BOLT (UPPER) 3C7613071M 3C7-61307-1 $8.19 2
(44) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(45) WASHER 12.2-36-3 3C7613350M 3C7-61335-0 $3.27 2
(46) MOUNT HOLDING PLATE (UPPER) 3C7Q613411 3C7Q61341-1 RUBBER MOUNT CAP (UPPER) $26.50 1
(47) BOLT 9101135835M 910113-5835 $3.28 3
(48) DAMPER (UPPER) 3C7613390M 3C7-61339-0 $15.46 1
(49) MOUNT BRACKET 3C7Q614112 3C7Q61411-2 $0.00 1 Sold Out View More Details
(50) RUBBER MOUNT (LOWER) 353613021M 353-61302-0 $55.20 2
(51) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $15.81 2
(52) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(53) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(54) WASHER 12.2-25-2 353613151M 353-61315-1 $3.20 2
(55) NUT 12-P1.5 3B7613240M 3B7-61324-0 $4.78 2
(56) WASHER 9402131200M 940213-1200 $2.10 2
(57) MOUNT HOLDING PLATE (LOWER) 3B7Q613420 3B7Q61342-0 RUBBER MOUNT CAP (LOWER) $27.54 2
(58) BOLT 8-25 3N4613430M 3N4-61343-0 $1.62 4
(59) RUBBER DAMPER (LOWER) 3C7613360M 3C7-61336-0 $11.02 1
(60) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(61) BOLT 9101036630M 910103-6630 $1.30 2
(62) GROUNG CABLE 3A3623961M 3A3-62396-0 L=110 $17.85 1
(63) BOLT 9101035612M 910103-5612 $1.07 3
(64) GROUND CABLE 3C8623961M 3C8-62396-0 L=210 $4.56 1
(65) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.76 2 Sold Out View More Details
(66) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(67) SCREW 9215035612M 921503-5612 $0.86 1
(68) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(69) ANODE 369602181M 369-60218-1 $7.42 1
(70) BOLT 9101035616M 910103-5616 $1.15 1
(71) STEERING ARM DAMPER B 3B7620960M 3B7-62096-0 $23.01 1 Sold Out View More Details
