10. ELECTRIC PARTS (STARTER MOTOR)

Click Here for Microfiche Usage Tip

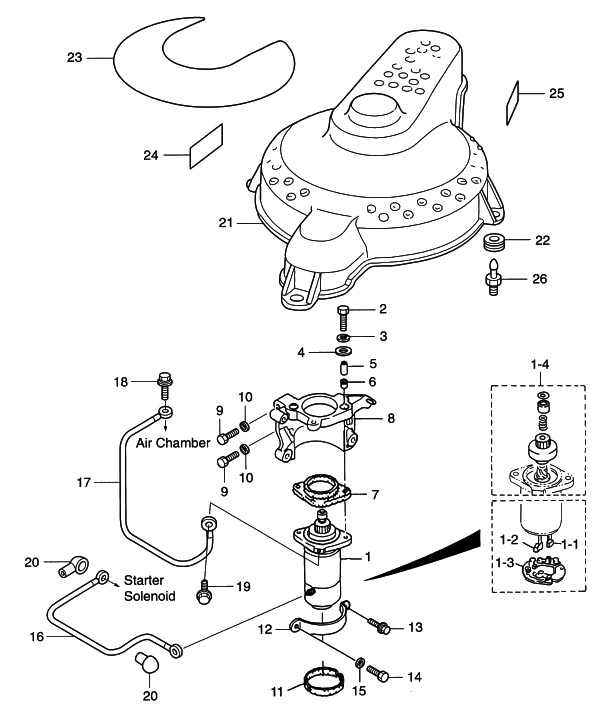

(1) STARTER MOTOR(1-1) POSITIVE BRUSH (+)(1-2) NEGATIVE BRUSH (-)(1-3) BRUSH SPRING(1-4) PINION(2) BOLT(3) SPRING WASHER(4) WASHER, 8.5-24-1.5(5) SPACER, 8.4-12-21.5(6) STARTER MOTOR MOUNT "A"(7) STARTER MOTOR MOUNT "B"(8) STARTER MOTOR BRACKET(9) BOLT(9) BOLT(10) SPRING WASHER(10) SPRING WASHER(11) STARTER MOTOR DAMPER(12) STARTER MOTOR BAND(13) BOLT(14) BOLT(15) WASHER(16) STARTER CABLE(17) STARTER CABLE(18) BOLT(19) BOLT(20) TERMINAL CAP(20) TERMINAL CAP(21) RING GEAR COVER(22) GROMMET, 16-2.5(23) CAUTION DECAL "B"(24) FUSE DECAL(25) SPARK PLUG DECAL(26) RING GEAR COVER HOOK



Parts List
2006 :: 115 HP :: TLDI Nissan NSD115A :: ELECTRIC PARTS (STARTER MOTOR)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR 353760104M 353-76010-4 $453.45 1
(1-1) POSITIVE BRUSH (+) 353760123M 353-76012-3 $14.13 2
(1-2) NEGATIVE BRUSH (-) 353760133M 353-76013-3 $10.35 1
(1-3) BRUSH SPRING 353760171M 353-76017-1 $0.00 3 Sold Out View More Details
(1-4) PINION ASSY 353760151M 353-76015-1 $0.00 1 Sold Out View More Details
(2) BOLT 9101030840M 910103-0840 $3.17 2
(3) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(4) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(5) SPACER 8.4-12-21.5 3C7760030M 3C7-76003-0 $2.56 2
(6) STARTER MOTOR MOUNT A 3C7760040M 3C7-76004-0 $2.07 2
(7) STARTER MOTOR MOUNT B 3C7760050M 3C7-76005-0 $11.48 1
(8) STARTER MOTOR BRACKET 3T1B051010 3T1B05101-0 $110.41 1
(9) BOLT 9161140845M 916114-0845 $0.00 3 Sold Out View More Details
(10) SPRING WASHER 9413220800M 941322-0800 $0.92 3
(11) STARTER MOTOR DAMPER 3C7760070M 3C7760070M $0.00 2 Sold Out View More Details
(12) STARTER MOTOR BAND 353760092M 353-76009-2 $15.21 1
(13) BOLT 9101135840M 910113-5840 $3.17 1
(14) BOLT 9101030820M 9101E3-0820 $1.87 1
(15) WASHER 9401030800M 940113-0800 $0.84 1
(16) STARTER CABLE 3U1761410M 3U1-76141-0 L=500 $29.19 1 Sold Out View More Details
(17) STARTER CABLE 3T1761410M 3T1-76141-0 L=300 $0.00 1 Sold Out View More Details
(18) BOLT 9101035612M 910103-5612 $1.07 1
(19) BOLT 9101035816M 910103-5816 $0.00 1 Sold Out View More Details
(20) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(21) RING GEAR COVER 3T1063010M 3T1-06301-0 $71.13 1
(22) GROMMET 16-2.5 3T1670050M 3T1-67005-0 $2.16 4
(23) CAUTION DECAL B 3T1721810M 3T1-72181-0 $0.00 1 Sold Out View More Details
(24) FUSE DECAL 3Y9721940M 3Y9-72194-0 $1.55 1
(25) SPARK PLUG DECAL 3Y7720260M 3Y7-72026-0 $0.00 1 Sold Out View More Details
(26) RING GEAR COVER HOOK 1E0360560M 1E0-36056-0 $1.85 4
