9. ELECTRIC PARTS (ECU & DIAGRAM)

Click Here for Microfiche Usage Tip
(1) ECU(2) BOLT(2) BOLT(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(4) RUBBER MOUNT, 8.5-14-2.5(4) RUBBER MOUNT, 8.5-14-2.5(5) RUBBER MOUNT, 8.5-14-2.5(5) RUBBER MOUNT, 8.5-14-2.5(6) SPACER, 6.2-9-16.6(6) SPACER, 6.2-9-16.6(7) IGNITION COIL, # 1(7-1) PLUG CAP (WITH RESISTANCE)(8) IGNITION COIL, # 2 & # 3 & # 4(8) IGNITION COIL, # 2 & # 3 & # 4(8) IGNITION COIL, # 2 & # 3 & # 4(9) BOLT(9) BOLT(9) BOLT(9) BOLT(10) WATER TEMPERATURE SENSOR(10) WATER TEMPERATURE SENSOR(10-1) O-RING, 2-10(10-1) O-RING, 2-10(11) STARTER SOLENOID(12) FUSE, 15A(13) FUSE, 25A(14) FUSE, 30A(15) RELAY(16) PTT SOLENOID SWITCH "A"(17) PTT SOLENOID SWITCH "B"(18) GROUND CABLE(19) TERMINAL CAP(19) TERMINAL CAP(20) BATTERY CABLE(21) TERMINAL CAP(22) RECTIFIER(23) RECTIFIER PLATE(23) RECTIFIER PLATE(24) BOLT, 6-30 PRE-COATED(24) BOLT, 6-30 PRE-COATED(25) CORD ASSY "A"(26) CABLE TERMINAL PLUG(27) BOLT(27) BOLT(27) BOLT(27) BOLT(28) SOLENOID SWITCH BRACKET(29) BRACKET COVER(30) MAP SENSOR(31) TAPPING SCREW, 6-25(32) BOLT(33) WASHER, 6.5-16-1.5(33) WASHER, 6.5-16-1.5(34) RUBBER MOUNT, 8.5-14-2.5(35) RUBBER MOUNT, 8.5-14-2.5(36) SPACER, 6.2-9-15.7(37) RUBBER HOSE(38) CLIP, o 7(38) CLIP, o 7(39) MAT SENSOR(40) MAT SENSOR GROMMET(41) LEAD WIRE BAND, 158



Parts List

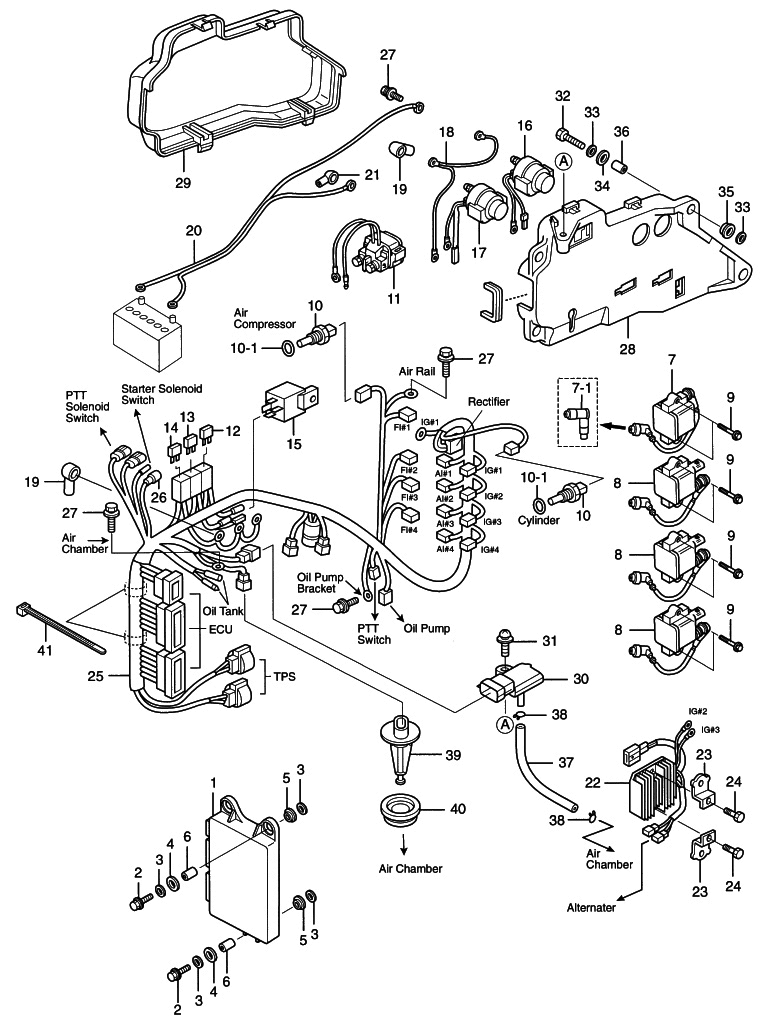

2006 :: 115 HP :: TLDI Nissan NSD115A :: ELECTRIC PARTS (ECU & DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ECU 3T1064010M 3T1-06401-0 $0.00 1 Sold Out View More Details
(2) BOLT 9101036630M 910103-6630 $1.30 3
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(6) SPACER 6.2-9-16.6 3T5671140M 3T5-67114-0 $1.22 3
(7) IGNITION COIL # 1 3T1064700M 3T1-06470-0 $122.77 1
(7-1) PLUG CAP (WITH RESISTANCE) 3T1069990M 3T1-06999-0 $44.37 4
(8) IGNITION COIL # 2 & # 3 & # 4 3T1064690M 3T1-06469-0 $119.37 3
(9) BOLT 9101037635M 910103-7635 $2.35 8
(10) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 $26.18 2
(10-1) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 2
(11) STARTER SOLENOID 3H8760400M 3H8-76040-0 $67.57 1
(12) FUSE 15A 3T5762460M 3T5-76246-0 $3.34 2
(13) FUSE 25A 3T5762480M 3T5-76248-0 $3.20 2
(14) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 2
(15) RELAY 3T1063300M 3T1-06330-0 $50.37 1
(16) PTT SOLENOID SWITCH A 3AC725800M 3AC-72580-0 UP $72.11 1
(17) PTT SOLENOID SWITCH B 3AC725810M 3AC-72581-0 DN $72.11 1
(18) GROUND CABLE 3T5761420M 3T5-76142-0 $8.60 1
(19) CAP CORD 3A3761450M 3A3-76145-0 $3.39 6
(20) BATTERY CABLE 3B7761200M 3B7-76120-0 L=3000 $140.39 1
(21) CAP CORD 3B7761450M 3B7-76145-0 $3.39 1
(22) RECTIFIER 3T1760600M 3T1-76060-0 $251.21 1
(23) RECTIFIER PLATE 3T1072331M 3T1-07233-1 $7.36 2 Sold Out View More Details
(24) BOLT 6-30 PRECOATED 3AB600010M 3AB-60001-0 $3.05 2 Sold Out View More Details
(25) CORD ASSY A 3T1761100M 3T1-76110-0 $883.67 1 Sold Out View More Details
(26) CABLE TERMINAL PLUG 3T5760370M 3A3-76037-0 $1.50 1
(27) BOLT 9101035612M 910103-5612 $1.07 5
(28) SOLENOID SWITCH BRACKET 3T1725930M 3T1-72593-0 WITH RUBBER PROTECTOR $0.00 1 Sold Out View More Details
(29) BRACKET COVER 3T1069020M 3T1-06902-0 $25.74 1
(30) MAP SENSOR 3AC102140M 3AC-10214-0 $117.76 1
(31) TAPPING SCREW 6-25 3T1064370M 3T1-06437-0 $1.44 1 Sold Out View More Details
(32) BOLT 9101036630M 910103-6630 $1.30 4
(33) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 8
(34) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 4
(35) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 4
(36) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 4
(37) LUBRICATION PIPE D 98AL41000M 98AL41000M $8.81 1
(38) CLIP ø 7 338011330M 338-01133-0 $1.04 2
(39) MAT SENSOR 3AC102150M 3AC-10215-0 $23.56 1
(40) MAT SENSOR GROMMET 3AC043190M 3AC-04319-0 $3.71 1
(41) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
