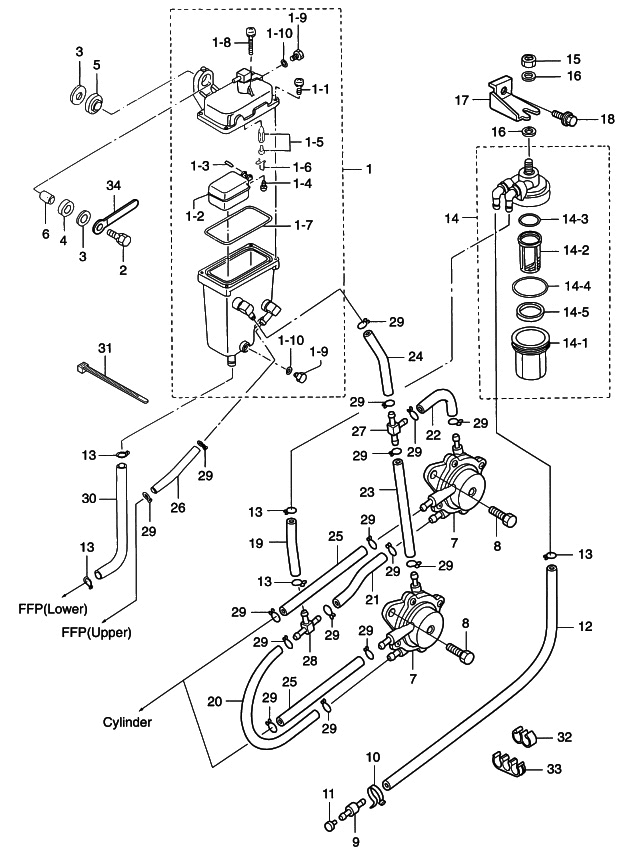

6. VAPOR SEPARATOR & FUEL LINE

Click Here for Microfiche Usage Tip
(1) VAPOR SEPARATOR(1-1) SCREW(1-2) FLOAT(1-3) FLOAT ARM PIN(1-4) SCREW(1-5) FLOAT VALVE(1-6) CLIP(1-7) O-RING(1-8) SCREW(1-9) DRAIN SCREW(1-9) DRAIN SCREW(1-10) O-RING(1-10) O-RING(2) BOLT(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(4) RUBBER MOUNT, 8.5-14-2.5(5) RUBBER MOUNT, 8.5-14-2.5(6) SPACER, 6.2-9-15.7(7) FUEL PUMP(7) FUEL PUMP(8) BOLT(8) BOLT(9) FUEL HOSE NIPPLE(10) LEAD WIRE BAND,104(11) FUEL HOSE NIPPLE PLUG(12) FUEL HOSE(13) CLIP,o 12(13) CLIP,o 12(13) CLIP,o 12(13) CLIP,o 12(13) CLIP,o 12(14) FUEL FILTER(14-1) CUP(14-2) FILTER(14-3) O-RING B(14-4) O-RING A(14-5) FLOAT(15) NUT(16) WASHER(16) WASHER(17) FILTER PLATE(18) BOLT(19) RUBBER HOSE(20) RUBBER HOSE(21) RUBBER HOSE(22) RUBBER HOSE(23) RUBBER HOSE(24) RUBBER HOSE(25) RUBBER HOSE(25) RUBBER HOSE(26) RUBBER HOSE(27) PIPE JOINT "T" TYPE, 4-4(28) PIPE JOINT, 7-5(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(29) CLIP, o10(30) RUBBER HOSE(31) LEAD WIRE BAND, 104(32) HOSE CLAMP(33) HOSE CLAMP(34) CLAMP, 6.5-47.5P



Parts List
2006 :: 115 HP :: TLDI Nissan NSD115A :: VAPOR SEPARATOR & FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) VAPOR SEPARATOR 3T5101500M 3T5101500M $200.01 1
(1-1) SCREW 9225316414M 922531-6414 $0.47 3
(1-2) FLOAT 3T5032300M 3T5-03230-0 $24.02 1
(1-3) ARM PIN FLOAT 3F3032320M 3F3-03232-0 $2.19 1
(1-4) SCREW 9215030408M 921503-0408 $0.75 1
(1-5) FLOAT VALVE 3R3032390M 3R3-03239-0 WITH VALVE PIN $11.64 1
(1-6) CLIP 344032440M 344-03244-0 $3.51 1
(1-7) O-RING 3T5032350M 3T5-03235-0 $5.34 1
(1-8) SCREW 9215036430M 921503-6430 $0.00 1 Sold Out View More Details
(1-9) DRAIN SCREW 345032920M 345-03292-0 $3.91 2
(1-10) O-RING 336032930M 336-03293-0 $1.79 2
(2) BOLT 9101036630M 910103-6630 $1.30 2
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 2
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 2
(6) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 2
(7) FUEL PUMP 3T1040000M 3T1-04000-0 $0.00 2 Sold Out View More Details
(8) BOLT 9101035620M 910103-5620 $1.30 4
(9) FUEL HOSE NIPPLE 3T1600180M 3T1-60018-0 $4.38 1
(10) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(11) FUEL HOSE NIPPLE PLUG 3T1038130M 3T1-03813-0 $0.00 1 Sold Out View More Details
(12) RUBBER HOSE 98AB71000M 98AB71000M FUEL HOSE NIPPLE - FUEL FILTER $13.44 1
(13) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 5
(14) FUEL FILTER 3T1022300M 3T1-02230-0 $54.10 1 Sold Out View More Details
(14-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(14-2) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(14-3) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(14-4) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(14-5) FLOAT 3T5022290M 3T5-02229-0 $6.84 1
(15) NUT 9301130800M 930113-0800 $1.99 1 Sold Out View More Details
(16) WASHER 9401130800M 940113-0800 $0.84 2
(17) FILTER PLATE 3T1022390M 3T1-02239-0 $0.00 1 Sold Out View More Details
(18) BOLT 9101036614M 910103-6614 $1.09 1
(19) RUBBER HOSE 98AB71000M 98AB71000M FUEL FILTER - T-NIPPLE $13.44 1
(20) RUBBER HOSE 98AB51000M 98AB51000M T-NIPPLE - FUEL PUMP $11.41 1
(21) RUBBER HOSE 98AB51000M 98AB51000M T-NIPPLE - FUEL PUMP $11.41 1
(22) RUBBER HOSE 98AB50090M 98AB-5-0090 FUEL PUMP - T-NIPPLE $11.41 1
(23) RUBBER HOSE 98AB51000M 98AB51000M FUEL PUMP - T-NIPPLE $11.41 1
(24) RUBBER HOSE 98AB51000M 98AB51000M T-NIPPLE - V. S. T. $11.41 1
(25) RUBBER HOSE 98AB50150M 98AB-5-0150 FUEL PUMP - CYLINDER (PULSE) $11.41 2
(26) RUBBER HOSE 98AB50090M 98AB-5-0090 FFP CASE (UPPER) - V. S. T. $11.41 1
(27) HOSE JOINT T TYPE 394700130M 394-70013-0 V. S. T . - FUEL PUMP $2.19 1
(28) PIPE JOINT 7-5 3C7020920M 3C7-02092-0 FUEL FILTER - FUEL PUMP $3.27 1
(29) CLIP ø10 338022150M 338-02215-0 $1.41 16
(30) RUBBER HOSE 98AB71000M 98AB71000M V. S. T. - FFP CASE $13.44 1
(31) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 3 Sold Out View More Details
(32) HOSE CLAMP 3T1069150M 3T1-06915-0 $1.24 3 Sold Out View More Details
(33) HOSE CLAMP 3U1069150M 3U1-06915-0 $2.94 2 Sold Out View More Details
(34) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
