3. AIR CHAMBER

Click Here for Microfiche Usage Tip

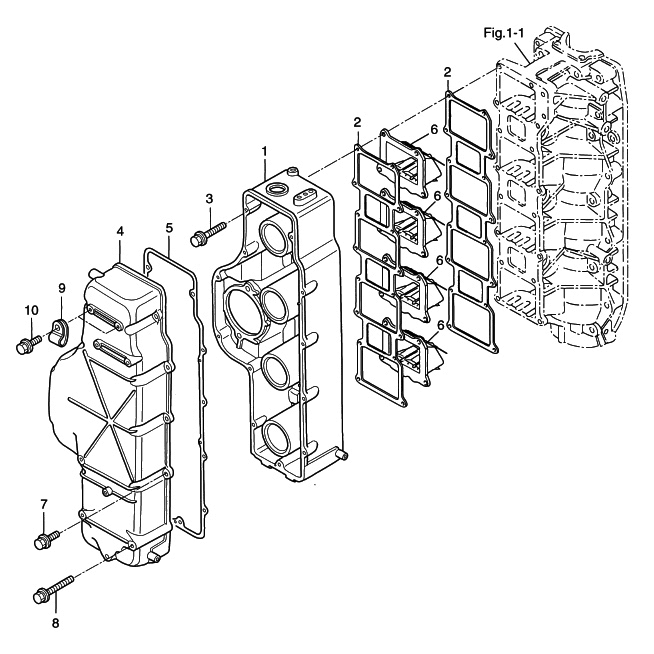

(1) AIR CHAMBER(2) INTAKE MANIFOLD GASKET(2) INTAKE MANIFOLD GASKET(3) BOLT, 6-35 PRE-COATED(4) AIR CHAMBER COVER(5) AIR CHAMBER COVER GASKET(6) REED VALVE ASSY(6) REED VALVE ASSY(6) REED VALVE ASSY(6) REED VALVE ASSY(7) BOLT(8) BOLT(9) CLAMP, 6.5-14L(10) BOLT



Parts List
2006 :: 115 HP :: TLDI Nissan NSD115A :: AIR CHAMBER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR CHAMBER 3T1B022400 3T1B02240-0 $349.15 1 Sold Out View More Details
(2) INTAKE MANIFOLD GASKET 3C7021041M 3C7-02104-1 $45.02 2
(3) BOLT 6-35 PRECOATED 3V1600010M 3V1-60001-0 $3.43 16
(4) AIR CHAMBER COVER 3T1B022440 3T1B02244-0 $0.00 1 Sold Out View More Details
(5) AIR CHAMBER COVER GASKET 3T1022450M 3T1-02245-0 $30.19 1
(6) REED VALVE ASSY 3A3021000M 3A3-02100-0 $68.83 4
(7) BOLT 9101135625M 910113-5625 $1.47 8
(8) BOLT 9101035665M 910103-5665 $0.00 4 Sold Out View More Details
(9) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 2
(10) BOLT 9101135612M 910113-5612 $1.07 2
