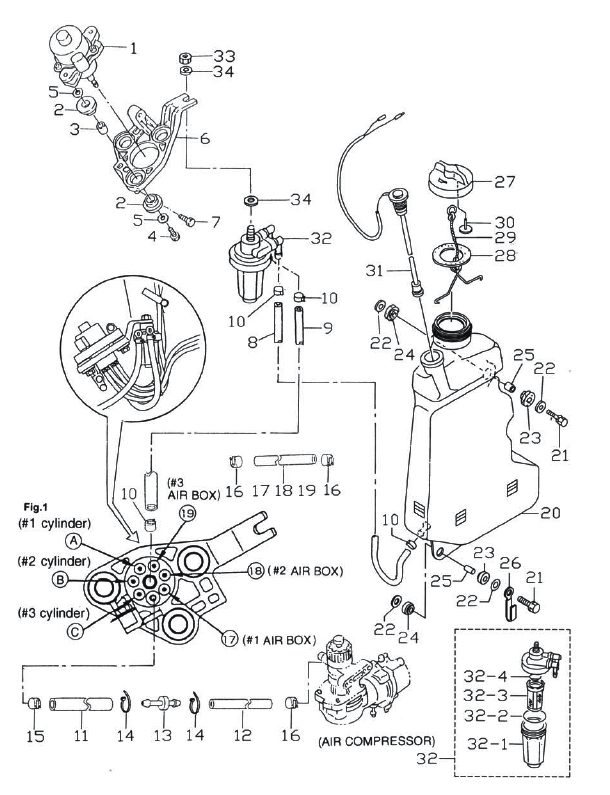

12. OIL PUMP

Click Here for Microfiche Usage Tip
(1) ELECTRIC OIL PUMP(2) RUBBER MOUNT, 12-18-2.5(2) RUBBER MOUNT, 12-18-2.5(3) SPACER, 8.4-12-17(4) BOLT(5) WASHER, 8.4-24-1.5(5) WASHER, 8.4-24-1.5(6) OIL PUMP BRACKET(7) BOLT(8) OIL PIPE "A"(9) OIL PIPE "B"(10) CLIP, o 9.5(10) CLIP, o 9.5(10) CLIP, o 9.5(10) CLIP, o 9.5(11) OIL PIPE(12) OIL PIPE(13) NIPPLE JOINT(14) LEAD WIRE BAND, 104(14) LEAD WIRE BAND, 104(15) CLIP, o 7.8(16) CLIP, o 6.9(16) CLIP, o 6.9(16) CLIP, o 6.9(17) OIL PIPE(18) OIL PIPE(19) OIL PIPE(20) OIL TANK(21) BOLT(21) BOLT(22) WASHER, 6.5-21-1.0(22) WASHER, 6.5-21-1.0(22) WASHER, 6.5-21-1.0(22) WASHER, 6.5-21-1.0(23) RUBBER MOUNT, 8.5-14-2.5(23) RUBBER MOUNT, 8.5-14-2.5(24) RUBBER MOUNT, 8.5-14-2.5(24) RUBBER MOUNT, 8.5-14-2.5(25) SPACER, 6.2-9-15.7(25) SPACER, 6.2-9-15.7(26) CLAMP, 6.5-87P(27) OIL TANK CAP(28) GASKET, 36-52-2(29) TANK CAP HOOK(30) TANK CAP CHECK VALVE(31) OIL LEVEL SENSOR(32) OIL FILTER(32) OIL FILTER(32-1) CUP(32-2) O-RING "A"(32-3) FILTER(32-4) O-RING "B"(33) NUT(34) WASHER(34) WASHER



Parts List
2006 :: 90 HP :: TLDI Nissan NSD90B (AQ) :: OIL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ELECTRIC OIL PUMP 3T7090100M 3T7-09010-0 70A2 # 70052~ 90A2 # 00516~ $383.64 1
(2) RUBBER MOUNT 12-18-2.5 345671130M 345-67113-0 70A2 # 70052~ 90A2 # 00516~ $1.61 6
(3) SPACER 8.4-12-17 3C7671140M 3C7-67114-0 70A2 # 70052~ 90A2 # 00516~ $2.31 3
(4) BOLT 9101130835M 910113-0835 70A2 # 70052~ 90A2 # 00516~ $2.01 3
(5) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 70A2 # 70052~ 90A2 # 00516~ $1.85 6
(6) OIL PUMP BRACKET 3T7090720M 3T7-09072-0 70A2 # 70052~ 90A2 # 00516~ $0.00 1 Sold Out View More Details
(7) BOLT 9101137630M 910113-7630 70A2 # 70052~ 90A2 # 00516~ $1.67 2
(8) OIL PIPE B 99AA61000M 99AA-6-0700 027922XE~ $12.80 1
(9) OIL PIPE B 99AA61000M 99AA-6-0700 $12.80 1
(10) CLIP ø 9.5 121351430M 121-35143-0 $1.30 4
(11) OIL PIPE 99AA40040M 99AA-4-0040 $11.51 1 Sold Out View More Details
(12) OIL PIPE 99AA20440M 99AA-2-0440 $13.60 1
(13) NIPPLE JOINT 3T7090760M 3T7-09076-0 REDUCER NIPPLE 70A2/90A2 $0.00 1 Sold Out View More Details
(14) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(15) CLIP ø 7.8 151350020M 151-35002-0 $1.59 1
(16) CLIP ø 6.9 3B7090520M 3B7-09052-0 $0.00 7 Sold Out View More Details
(17) OIL PIPE 99AA21000M 99AA-2-0110 OIL PUMP TO 1 AIR BOX $13.60 1
(18) OIL PIPE 99AA21000M 99AA-2-0110 OIL PUMP TO 2 AIR BOX $13.60 1
(19) OIL PIPE 99AA21000M 99AA-2-0110 OIL PUMP TO 3 AIR BOX $13.60 1
(20) OIL TANK 3T9710100M 3T9710100M 027922XE~ $72.57 1
(21) BOLT 9101036630M 910103-6630 $1.30 3
(22) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(23) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(24) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(25) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 3
(26) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 $1.53 1
(27) OIL TANK CAP 3C8710150M 3C8-71015-0 $10.12 1
(28) GASKET 36-52-2 3C8710160M 3C8-71016-0 $2.56 1
(29) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.12 1
(30) TANK CAP CHECK VALVE 3C8710180M 3C8-71018-0 $8.52 1
(31) OIL LEVEL SENSOR 3T9710200M 3T9-71020-0 $14.66 1
(32) OIL FILTER 3C7710300M 3C7-71030-0 $51.01 1
(32-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(32-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(32-3) FILTER 3C7710330M 3C7-71033-0 $12.70 1
(32-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(33) NUT 9301130800M 930113-0800 $1.99 1 Sold Out View More Details
(34) WASHER 9401130800M 940113-0800 $0.84 2
