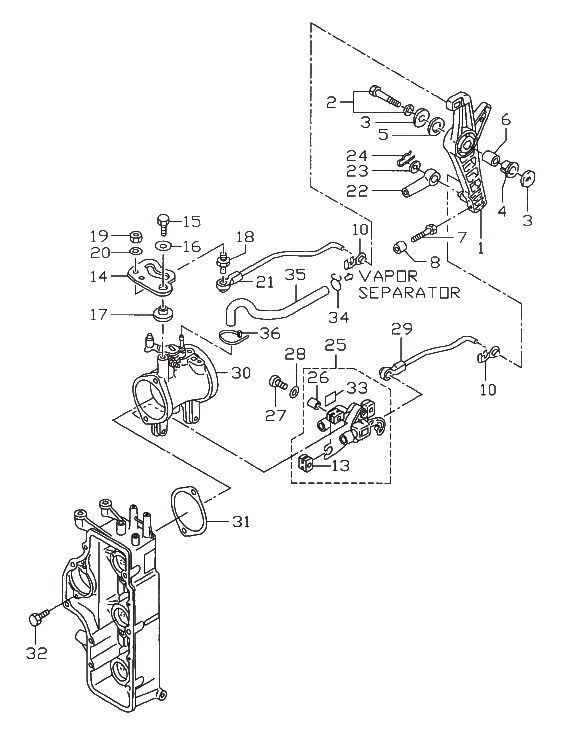

7. THROTTLE

Click Here for Microfiche Usage Tip
(1) ADVANCER ARM(2) BOLT(3) WASHER, 8.5-24-1.5(3) WASHER, 8.5-24-1.5(4) BUSHING, 12-14-15.5(5) WASHER, 12.5-24-1(6) COLLAR, 8.4-12-17(7) BOLT(8) COLLAR, 6.2-9-9.3(10) ROD SNAP, 5-3(10) ROD SNAP, 5-3(13) RUBBER MOUNT(14) THROTTLE CAM(15) BOLT(16) WASHER, 6.5-21-1(17) BUSHING, 6-24-7(18) BALL JOINT "B"(19) NUT(20) WASHER(21) THROTTLE LINK ROD(22) CABLE JOINT(23) WASHER, 8.5-18-1.6(24) SNAP PIN, D=8(25) TPS(26) COLLAR, 4.2-6-10.5(27) SCREW(28) WASHER, 4.2-12.5-0.8(29) TPS LINK ROD(30) THROTTLE BODY(31) THROTTLE BODY GASKET(32) BOLT, 6-25 PRE-COATED(33) TPS DECAL(34) CLIP, o 7(35) FUEL PIPE(36) LEAD WIRE BAND, 104



Parts List
2006 :: 90 HP :: TLDI Nissan NSD90B (AQ) :: THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ADVANCER ARM 3B7B637113 3B7B63711-3 $0.00 1 Sold Out View More Details
(2) BOLT 9101036835M 910103-6835 $2.01 1
(3) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(4) BUSHING 12-14-15.5 3B7637130M 3B7-63713-0 $2.07 1
(5) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 $2.31 1
(6) COLLAR 8.4-12-17 3B7637320M 3B7-63732-0 $2.13 1
(7) BOLT 9101030618M 910103-0618 $0.00 1 Sold Out View More Details
(8) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 1
(10) ROD SNAP 5 - 3 3B7637330M 3B7-63733-0 $1.41 2
(13) RUBBER MOUNT 3T5101070M 3T5-10107-0 $5.58 3
(14) THROTTLE CAM 3T9637180M 3T9-63718-0 $0.00 1 Sold Out View More Details
(15) BOLT 9101036618M 910103-6618 $0.79 1
(16) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(17) BUSHING 6-24-7 3T5637210M 3T5-63721-0 $2.59 1
(18) BALL JOINT B 346052281M 346-05228-0 $4.63 1
(19) NUT 9302030600M 930203-0600 $0.00 1 Sold Out View More Details
(20) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 1
(21) THROTTLE LINK ROD 3T9637021M 3T9-63702-1 OLD PART NO. 3T9-63716-0 $18.68 1
(22) CABLE JOINT 3B7837151M 3B7-83715-1 $4.83 1 Sold Out View More Details
(23) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 OR 353-83719-0 $2.39 1
(24) SNAP PIN D=8 9516030800M 951603-0800 $0.70 1
(25) TPS 3T5101100M 3T5-10110-0 $286.24 1
(26) COLLAR 4.2-6-10.5 3T5101280M 3T5-10128-0 $1.47 3
(27) SCREW 9215036420M 921503-6420 $0.92 3
(28) WASHER 4.2-12.5-0.8 3T5101290M 3T5-10129-0 $0.97 3
(29) TPS LINK ROD 3T9101090M 3T9101090M $6.30 1
(30) THROTTLE BODY 3T9101000M 3T9-10100-0 $188.23 1 Sold Out View More Details
(31) THROTTLE BODY GASKET 3T5101040M 3T5-10104-0 $2.71 1
(32) BOLT 6-25 PRE-COATED 3T5022410M 3T5-02241-0 $0.79 2
(33) TPS DECAL 3T5721950M 3T5-72195-0 $1.20 1 Sold Out View More Details
(34) CLIP ø 7 338011330M 338-01133-0 $1.04 1
(35) FUEL PIPE 98AB30360M 98AB-30-360 $10.72 1
(36) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
