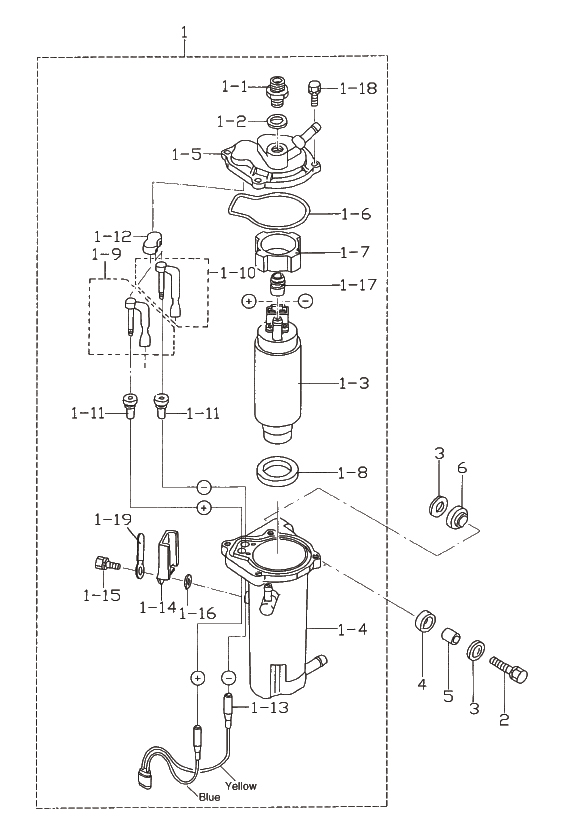

5. FUEL FEED PUMP (FFP) ASSEMBLY

Click Here for Microfiche Usage Tip
(1) FFP (FUEL FEED PUMP) ASSY(1-1) HOSE JOINT ADAPTER(1-2) METAL WASHER, 10.2-17-2(1-3) FUEL FEED PUMP(1-4) FFP CASE(1-5) FFP CASE (UPPER)(1-6) O-RING,(1-7) FFP GROMMET (UPPER)(1-8) FFP GROMMET (LOWER)(1-9) CABLE TERMINAL (POSITIVE)(1-10) CABLE TERMINAL (NEGATIVE)(1-11) CABLE TERMINAL GROMMET(1-11) CABLE TERMINAL GROMMET(1-12) CABLE TERMINAL GROMMET (UPPER)(1-13) FFP CORD(1-14) FFP CORD COVER(1-15) BOLT(1-16) WASHER(1-17) PIPE GROMMET(1-18) BOLT(1-19) CLAMP, 6.5-47.5P(2) BOLT(3) WASHER, 6-16-1.5(3) WASHER, 6-16-1.5(4) RUBBER MOUNT, 9-12-2(5) SPACER, 6.2-9-15.7(6) RUBBER MOUNT, 8.5-18-7



Parts List
2006 :: 90 HP :: TLDI Nissan NSD90B (AQ) :: FUEL FEED PUMP (FFP) ASSEMBLY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FFP (FUEL FEED PUMP) ASSY 3T5043100M 3T5-04310-0 $713.63 1
(1-1) HOSE JOINT ADAPTER 3T5043080M 3T5-04308-0 $5.34 1
(1-2) METAL WASHER 10.2-17-2 3T5043090M 3T5-04309-0 $0.81 1
(1-3) FUEL FEED PUMP 3T5043020M 3T5-04302-0 $512.21 1
(1-4) FFP CASE 3T5043110M 3T5-04311-0 $73.29 1
(1-5) FFP CASE (UPPER) 3T5043120M 3T5-04312-0 $22.91 1
(1-6) O-RING 3T5041160M 3T5-04116-0 $1.71 1
(1-7) FFP GROMMET (UPPER) 3T5043130M 3T5-04313-0 $2.59 1
(1-8) FFP GROMMET (LOWER) 3T5043140M 3T5-04314-0 $1.71 1
(1-9) CABLE TERMINAL (POSITIVE) 3T5042360M 3T5-04236-0 $13.74 1
(1-10) CABLE TERMINAL (NEGATIVE) 3T5042370M 3T5-04237-0 $13.74 1
(1-11) CABLE TERMINAL GROMMET 3T5043170M 3T5-04317-0 $1.22 2
(1-12) CABLE TERMINAL GROMMET (UPPER) 3T5043180M 3T5-04318-0 $1.04 1
(1-13) FFP CORD 3T5042380M 3T5-04238-0 $75.49 1
(1-14) FFP CORD COVER 3T5042390M 3T5-04239-0 $1.56 1
(1-15) BOLT 9101035512M 9101E3-5512 $0.00 1 Sold Out View More Details
(1-16) WASHER 9401030500M 940103-0500 $0.53 1
(1-17) PIPE GROMMET 3T5043190M 3T5-04319-0 $1.22 1
(1-18) BOLT 9101036518M 910103-6518 $0.00 4 Sold Out View More Details
(1-19) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(2) BOLT 9101036630M 910103-6630 $1.30 2
(3) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 4 Sold Out View More Details
(4) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 2
(5) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 2
(6) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 2
