4. AIR RAIL

Click Here for Microfiche Usage Tip

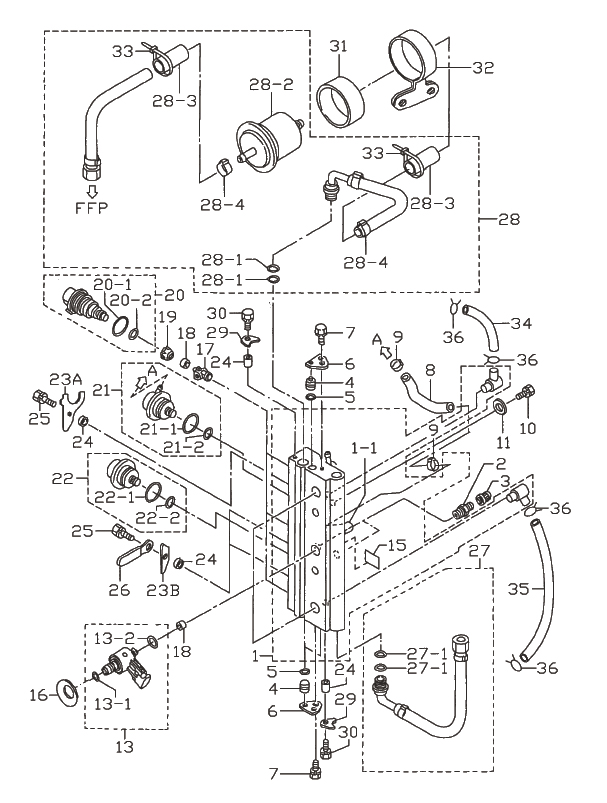

(1) AIR RAIL(1-1) L-NIPPLE(2) VALVE(3) VALVE CAP(4) PLUG, o 10.5(4) PLUG, o 10.5(5) O-RING, 1.9-6.8(5) O-RING, 1.9-6.8(6) PLUG STOPPER(6) PLUG STOPPER(7) BOLT(7) BOLT(8) AIR HOSE(9) CLAMP, 29/64(9) CLAMP, 29/64(10) BOLT(11) WASHER(13) AIR INJECTOR(13-1) O-RING, 5-52 (o 1-10)(13-2) O-RING, 2.4-9.6 (o 2.4-14.2)(15) AIR RAIL DECAL(16) AIR INJECTOR DISC SPRING(17) FUEL INJECTOR INSERT(18) COMPRESSION SEAL(18) COMPRESSION SEAL(19) FUEL INJECTOR ADAPTER(20) FUEL INJECTOR(20-1) O-RING, 2.8-20.2(20-2) O-RING, 3.5-7.5(21) FUEL REGULATOR(21-1) O-RING, 2.5-20(21-2) O-RING, 2.5-5(22) AIR REGULATOR(22-1) O-RING, 2.5-20(22-2) O-RING, 2.5-5(23A) FUEL INJECTOR HOLDING PLATE(23B) FUEL INJECTOR HOLDING PLATE(24) COLLAR, 6.7-12.7-3(24) COLLAR, 6.7-12.7-3(24) COLLAR, 6.7-12.7-3(24) COLLAR, 6.7-12.7-3(25) BOLT(25) BOLT(26) CLAMP, 6.5-47.5P(27) AIR HOSE(27-1) O-RING, 1.9-9.8(28) FUEL HOSE(28-1) O-RING, 1.9-9.8(28-2) FUEL FILTER(28-3) PROTECT TUBE(28-3) PROTECT TUBE(28-4) CLAMP, 21/32(28-4) CLAMP, 21/32(29) NIPPLE HOLDING PLATE(29) NIPPLE HOLDING PLATE(30) BOLT(30) BOLT(31) FUEL FILTER RUBBER MOUNT(32) FUEL FILTER BAND(33) LEAD WIRE BAND, 104(33) LEAD WIRE BAND, 104(34) FUEL PIPE(35) AIR PIPE(36) CLIP, o 10(36) CLIP, o 10(36) CLIP, o 10(36) CLIP, o 10



Parts List
2006 :: 70 HP :: TLDI Tohatsu MD70B (AQ) :: AIR RAIL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR RAIL 3T9100800M 3T9-10080-0 $364.44 1
(1-1) L-NIPPLE 3T5101660M 3T5-10166-0 $8.80 1
(2) VALVE 3T5100980M 3T5-10098-0 $11.16 2 Sold Out View More Details
(3) VALVE CAP 3T5100990M 3T5-10099-0 $1.56 2
(4) PLUG ø 10.5 3T5101670M 3T5-10167-0 $2.94 3
(5) O-RING 1.9-6.8 3T5101640M 3T5-10164-0 $2.22 3
(6) PLUG STOPPER 3T5101650M 3T5-10165-0 $1.22 2
(7) BOLT 9101036612M 910103-6612 $1.16 4
(8) AIR HOSE 98AJ40105M 98AJ-4-0105 $8.29 1
(9) CLAMP 29/64 3T5100910M 3T5-10091-0 $6.99 2
(10) BOLT 9101030865M 910103-0865 $1.70 2
(11) WASHER 9401030800M 940113-0800 $0.84 2
(13) AIR INJECTOR 3Y7103100M 3Y7-10310-0 70B # 70242~ 90B # 00766~ $250.27 3
(13-1) O-RING 5-52 (ø 1-10) 3T5103170M 3T5-10317-0 $9.09 3
(13-2) O-RING 2.4-9.6 (ø 2.4-14.2) 3Y9103110M 3Y9-10311-0 70B # 70242~ 90B # 00766~ $3.20 3
(15) AIR RAIL DECAL 3T5721960M 3T5-72196-0 $1.53 1
(16) AIR INJECTOR DISC SPRING 3Y9103120M 3Y9-10312-0 70B # 70242~ 90B # 00766~ $3.50 3
(17) FUEL INJECTOR INSERT 3T5103140M 3T5-10314-0 $18.34 3
(18) COMPRESSION SEAL 3T5103160M 3T5-10316-0 $1.85 6 Sold Out View More Details
(19) FUEL INJECTOR ADAPTER 3T5103150M 3T5-10315-0 $18.34 3
(20) FUEL INJECTOR 3T5103000M 3T5-10300-0 $177.91 3
(20-1) O-RING 2.8-20.2 3T5103040M 3T5-10304-0 $11.02 3 Sold Out View More Details
(20-2) O-RING 3.5-7.5 3T5103030M 3T5-10303-0 $8.37 3
(21) FUEL REGULATOR 3T5101480M 3T5-10148-0 $100.77 1
(21-1) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.46 1
(21-2) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.68 1
(22) AIR REGULATOR 3T5100900M 3T5-10090-0 $125.17 1
(22-1) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.46 1
(22-2) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.68 1
(23A) FUEL INJECTOR HOLDING PLATE 3Y9103020M 3Y9-10302-0 $10.98 1
(23B) FUEL INJECTOR HOLDING PLATE 3T5103020M 3T5-10302-0 $1.53 2
(24) COLLAR 6.7-12.7-3 3T5101530M 3T5-10153-0 $3.05 5
(25) BOLT 9101036616M 910103-6616 $1.20 3
(26) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(27) AIR HOSE 3T9100880M 3T9-10088-0 $111.35 1
(27-1) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(28) FUEL HOSE 3T9100892M 3T9-10089-2 70B # 70242~ 90B # 00766~ $135.08 1
(28-1) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(28-2) FUEL FILTER 3T5B101430 3T5B10143-0 FOR HIGH PRESSURE $94.05 1
(28-3) PROTECT TUBE 3T5061570M 3T5-06157-0 $3.05 2
(28-4) CLAMP 21/32 3T5100860M 3T5-10086-0 $5.58 2
(29) NIPPLE HOLDING PLATE 3T5101690M 3T5-10169-0 $1.22 2
(30) BOLT 9101036616M 910103-6616 $1.20 2
(31) FUEL FILTER RUBBER MOUNT 3T5101450M 3T5-10145-0 $3.18 1
(32) FUEL FILTER BAND 3Y9101440M 3Y9-10144-0 70B # 70242~ 90B # 00766~ $0.00 1 Sold Out View More Details
(33) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(34) FUEL PIPE 98AB50650M 98AB-5-0650 $11.41 1
(35) AIR PIPE 98AB50230M 98AB-5-0230 $11.41 1
(36) CLIP ø10 338022150M 338-02215-0 $1.41 4
