1. CYLINDER - CRANK CASE

Click Here for Microfiche Usage Tip
(1) CYLINDER-CRANK CASE(1) CYLINDER-CRANK CASE(1-1) STUD BOLT(1-1) STUD BOLT(1-2) NUT, 10-P 1.25(1-3) BOLT(1-4) WASHER, 10.5-20-3.2(1-4) WASHER, 10.5-20-3.2(1-5) BOLT(1-6) BOLT(1-7) WASHER, 8.5-19.5-3.2(1-7) WASHER, 8.5-19.5-3.2(1-8) DOWEL PIN, 6-12(1-9) MAIN BEARING DOWEL PIN(2) OIL PIPE(3) OIL PIPE(4) OIL PIPE(5) LUBRICATION PIPE "D"(6) OIL PIPE(7) LINE CHECK VALVE(7) LINE CHECK VALVE(8) CLIP, o 7(8) CLIP, o 7(8) CLIP, o 7(8) CLIP, o 7(9) CYLINDER HEAD(10) CYLINDER HEAD GASKET(11) BOLT(12) WASHER, 8.5-19.5-3.2(13) CYLINDER HEAD COVER(14) CYLINDER HEAD COVER GASKET(15) BOLT(16) THERMOSTAT(16) THERMOSTAT(17) THERMOSTAT CAP(18) THERMOSTAT CAP GASKET(19) BOLT(20) ANODE(21) BOLT(22) HANGER(23) BOLT(24) SPRING WASHER(25) CRANK CASE HEAD(26) O-RING, 2-74.5(27) OIL SEAL, 19.6-35-10(28) OIL SEAL, 35-58-9(29) BOLT(30) EXHAUST COVER (OUTER)(31) EXHAUST COVER (INNER)(32) EXHAUST COVER GASKET(32) EXHAUST COVER GASKET(33) WATER NIPPLE(34) SPARK PLUG, NGK : IZFR5J(34) SPARK PLUG, CHAMPION : RC10ECC(35) DOWEL PIN, 4-10(35) DOWEL PIN, 4-10(36) GROMMET, 25-5(37) BOLT(38) WASHER(39) BOLT(40) CLAMP, 8.5-85P(40) CLAMP, 8.5-85P(41) CLAMP, 6.5-47.5P(42) BOLT(43) CLIP, o 6.9(43) CLIP, o 6.9(43) CLIP, o 6.9(44) WATER PIPE(45) T-NIPPLE (WITH VALVE)(46) RUBBER HOSE(47) RUBBER HOSE(48) RUBBER HOSE(49) RUBBER HOSE(50) CLIP, o 10(50) CLIP, o 10(50) CLIP, o 10(50) CLIP, o 10(50) CLIP, o 10(51) LUBRICATION PIPE(52) RUBBER HOSE(53) RUBBER HOSE



Parts List

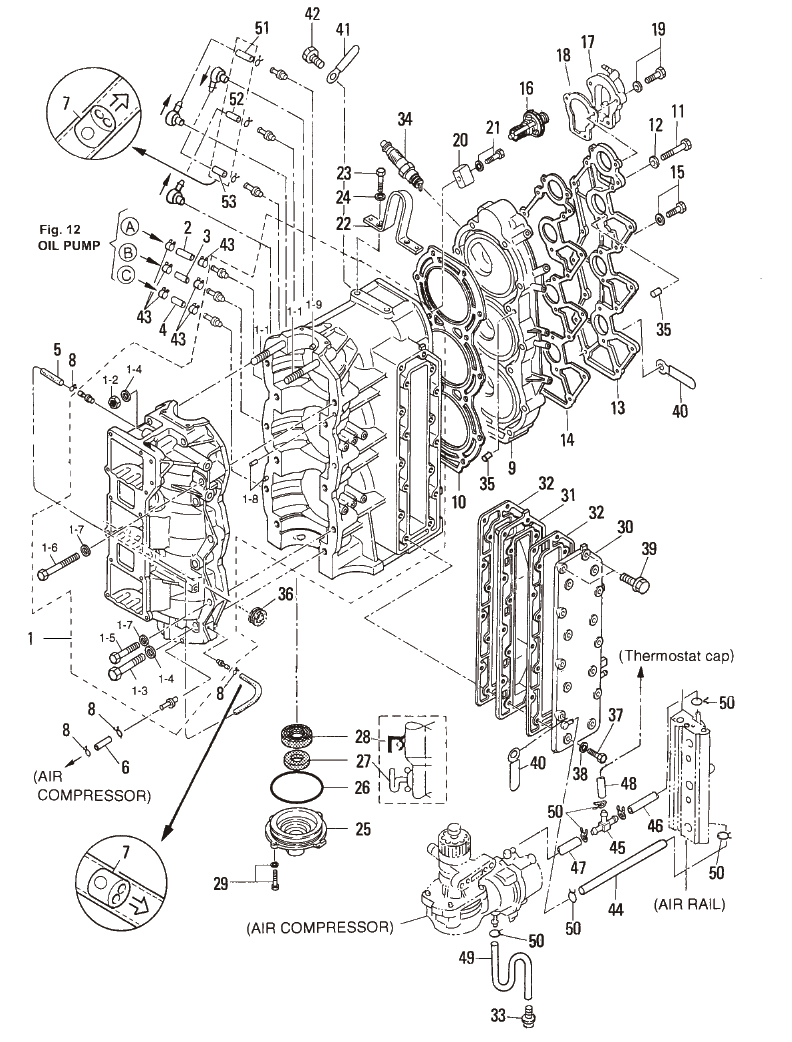

2006 :: 70 HP :: TLDI Tohatsu MD70B (AQ) :: CYLINDER - CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER-CRANK CASE 3Y9B011001 3Y9B01100-1 70B # 70242~ 90B # 00766~ $2,376.57 1 Sold Out View More Details
(1) CYLINDER-CRANK CASE 3T7B011000 3T7B01100-0 70A2 # 70052~ 70241 90A2 # 00516~ 00765 $1,939.83 0 Sold Out View More Details
(1-1) STUD BOLT 9153241065M 915324-1065 $0.00 2 Sold Out View More Details
(1-2) NUT 10-P 1.25 9311211000M 931121-1000 $1.47 2
(1-3) BOLT 9161291065M 916129-1065 $2.37 6
(1-4) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 8
(1-5) BOLT 9161240850M 916124-0850 $1.71 5
(1-6) BOLT 9161240865M 916124-0865 $1.76 1
(1-7) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 6
(1-8) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-9) MAIN BEARING DOWEL PIN 3T9001170M 3T9-00117-0 $6.39 1
(2) OIL PIPE 99AA21000M 99AA-2-0110 OIL PUMP TO # 1 CYLINDER $13.60 1
(3) OIL PIPE 99AA21000M 99AA-2-0110 OIL PUMP TO # 2 CYLINDER $13.60 1
(4) OIL PIPE 99AA20180M 99AA-2-0180 OIL PUMP TO # 3 CYLINDER $13.60 1
(5) LUBRICATION PIPE D 98AL41000M 98AL41000M $8.81 1
(6) OIL PIPE 98AL40380M 98AL-40-380 $8.81 1
(7) LINE CHECK VALVE 393011600M 393-01160-0 $4.31 4
(8) CLIP ø 7 338011330M 338-01133-0 $1.04 10
(9) CYLINDER HEAD 3T9B010011 3T9B01001-1 $322.79 1
(10) CYLINDER HEAD GASKET 3T9010050M 3T9-01005-0 $39.82 1
(11) BOLT 9161290875M 916129-0875 $1.71 14
(12) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 14
(13) CYLINDER HEAD COVER 3T9B010210 3T9B01021-0 $77.75 1
(14) CYLINDER HEAD COVER GASKET 3T9010240M 3T9-01024-0 $19.12 1
(15) BOLT 9101217625M 910121-7625 $0.97 3
(16) THERMOSTAT 3C7010300M 3C7-01030-0 70B # 70242~ 90B # 00766~ $41.18 1
(16) THERMOSTAT 3T9010300M 3T9-01030-0 ~ 70A2 # 70241 ~90A2 # 00765 $41.18 0
(17) THERMOSTAT CAP 3T9B010600 3T9B01060-0 70A2 # 70052~ 90A2 # 00516~ $18.73 1
(18) THERMOSTAT CAP GASKET 3T9010320M 3T9-01032-0 $4.10 1
(19) BOLT 9101135640M 910113-5640 $1.68 3
(20) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(21) BOLT 9101035630M 910113-5630 $1.15 1
(22) HANGER 3B7B015130 3B7B01513-0 $21.14 1 Sold Out View More Details
(23) BOLT 9101140820M 910114-0820 $1.39 2
(24) SPRING WASHER 9413220800M 941322-0800 $0.92 2
(25) CRANK CASE HEAD 3B7012911M 3B7-01291-1 $44.46 1
(26) O-RING 2-74.5 171000530M 171-00053-0 $3.91 1
(27) OIL SEAL 19.6-35-10 3C7012150M 3C7-01215-0 $15.44 1
(28) OIL SEAL 35-58-9 3T9001210M 3T9-00121-0 $16.11 1
(29) BOLT 9101135620M 910113-5620 $1.30 2
(30) EXHAUST COVER (OUTER) 3T9B023000 3T9B02300-0 $0.00 1 Sold Out View More Details
(31) EXHAUST COVER (INNER) 3B7B023020 3B7B02302-0 $0.00 1 Sold Out View More Details
(32) EXHAUST COVER GASKET 3B7023051M 3B7-02305-1 $15.58 2
(33) WATER NIPPLE 353011380M 353-01138-0 $2.21 1
(34) SPARK PLUG NGK : IZFR5J 970111109M 9701-1-1109 033166XD~ $28.68 3
(34) SPARK PLUG CHAMPION : RC10ECC 970114016M 9701-1-4016 ~70A2 # 70241 ~90A2 # 00765 $8.63 0
(35) KNOCK 4 -10 334650120M 334-65012-0 $3.00 4
(36) GROMMET 25-5 3B7760930M 3B7-76093-0 $2.19 1
(37) BOLT 9101140835M 910114-0835 $1.50 14
(38) WASHER 9401210800M 940121-0800 $0.37 14
(39) BOLT 9101135840M 910113-5840 $3.17 2
(40) CLAMP 8.5-85P 3T5069710M 3T5-06971-0 $1.43 2
(41) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 6
(42) BOLT 9101036612M 910103-6612 $1.16 6
(43) CLIP ø 6.9 3B7090520M 3B7-09052-0 $0.00 6 Sold Out View More Details
(44) RUBBER HOSE 98AB50290M 98AB-50-290 $11.41 1
(45) T-NIPPLE (WITH VALVE) 3T7011750M 3T7-01175-0 70A2 # 70052~ 90A2 # 00516~ $7.74 1
(46) RUBBER HOSE 98AB51000M 98AB51000M AIR RAIL TO T-NIPPLE $11.41 1
(47) RUBBER HOSE 98AB51000M 98AB51000M T-NIPPLE TO COMPRESSOR $11.41 1
(48) RUBBER HOSE 98AB51000M 98AB51000M T-NIPPLE TO CAP THERMOSTAT $11.41 1
(49) RUBBER HOSE 98AB50290M 98AB-50-290 $11.41 1
(50) CLIP ø10 338022150M 338-02215-0 $1.41 7
(51) LUBRICATION PIPE D 98AL41000M 98AL41000M 2 TRANSFER PASSAGE TO # 1 CYLINDER $8.81 1
(52) LUBRICATION PIPE D 98AL41000M 98AL41000M 3 TRANSFER PASSAGE TO # 2 CYLINDER $8.81 1
(53) LUBRICATION PIPE D 98AL41000M 98AL41000M 1 TRANSFER PASSAGE TO # 3 CYLINDER $8.81 1
