20. TOP COWL (MOTOR COVER UPPER)

Click Here for Microfiche Usage Tip

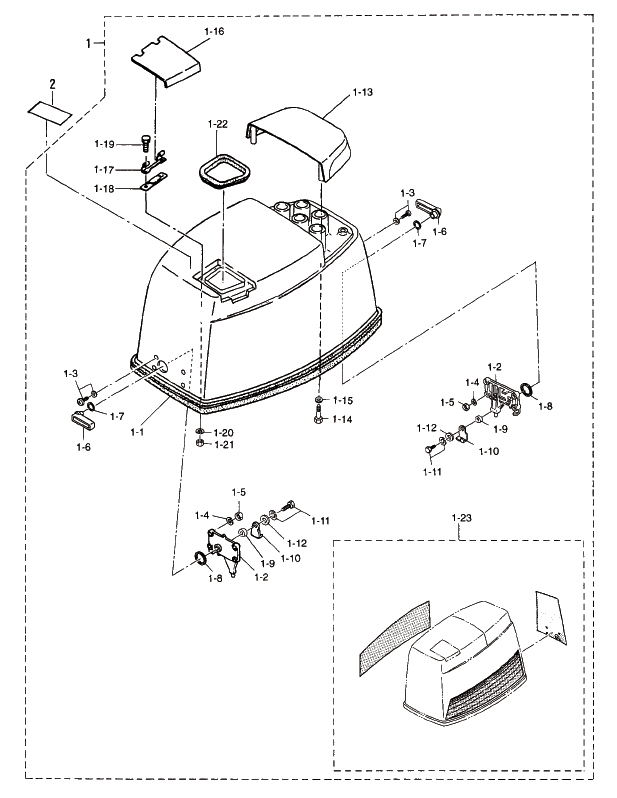

(1) TOP COWL(1) TOP COWL(1-1) TOP COWL SEAL(1-2) LOCATING BRACKET(1-2) LOCATING BRACKET(1-3) SCREW(1-3) SCREW(1-4) SPRING WASHER(1-4) SPRING WASHER(1-5) NUT(1-5) NUT(1-6) HOOK LEVER(1-6) HOOK LEVER(1-7) O-RING, 1.5-9.5(1-7) O-RING, 1.5-9.5(1-8) SEAL RING(1-8) SEAL RING(1-9) BUSHING, 12-14-12(1-9) BUSHING, 12-14-12(1-10) COVER HOOK(1-10) COVER HOOK(1-11) BOLT(1-11) BOLT(1-12) WASHER, 6-16-1.5(1-12) WASHER, 6-16-1.5(1-13) TILT HANDLE(1-14) BOLT(1-15) WASHER, 6-16-1.5(1-16) FILLER LID(1-17) FILLER LID HINGE(1-18) FILLER LID SPRING(1-19) BOLT(1-20) SPRING WASHER(1-21) NUT(1-22) FILLER LID SEAL(1-23) DECAL SET(1-23) DECAL SET(2) CAUTION DECAL "A"



Parts List
2006 :: 70 HP :: TLDI Nissan NSD70B (AQ) :: TOP COWL (MOTOR COVER UPPER)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOP COWL 3T9Q675102 3T9Q67510-2 TOHATSU MOTOR COVER (UPPER) $0.00 1 Sold Out View More Details
(1) TOP COWL 3U9N675102 3U9N67510-2 NISSAN MOTOR COVER (UPPER) $564.19 1 Sold Out View More Details
(1-1) TOP COWL SEAL 3C7675010M 3C7-67501-0 $40.25 1
(1-2) LOCATING BRACKET 353675171M 353-67517-1 $0.00 2 Sold Out View More Details
(1-3) SCREW 9217035520M 921703-5520 $0.38 8
(1-4) SPRING WASHER 9413030500M 941303-0500 $0.90 8
(1-5) NUT 9301110500M 930111-0500 $0.00 8 Sold Out View More Details
(1-6) HOOK LEVER 353Q671410 353Q67141-0 $23.01 2
(1-7) O-RING 1.5-9.5 338624350M 338-62435-0 $1.41 2
(1-8) SEAL RING 353671471M 353-67147-1 $2.31 2
(1-9) BUSHING 12-14-12 353671050M 353-67105-0 $1.41 2
(1-10) BUSHING 12-14-12 353671050M 353-67105-0 $1.41 2
(1-10) COVER HOOK 353671421M 353-67142-1 $11.02 2
(1-11) BOLT 9101036616M 910103-6616 $1.20 2
(1-12) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(1-13) TILT HANDLE 3F3Q675211 3F3Q67521-1 $0.00 1 Sold Out View More Details
(1-14) BOLT 9101130630M 910113-0630 $1.21 4
(1-15) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(1-16) FILLER LID 3E3Q672100 3E3Q67210-0 $29.88 1
(1-17) FILLER LID HINGE 3B7672110M 3B7-67211-0 $3.05 1
(1-18) FILLER LID SPRING 3C8672120M 3C8-67212-0 $9.53 1
(1-19) BOLT 9101030614M 910103-0614 $0.76 2
(1-20) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(1-21) NUT 9301130600M 930113-0600 $0.84 2
(1-22) FILLER LID SEAL 3T9672130M 3T9-67213-0 $0.00 1 Sold Out View More Details
(1-23) DECAL SET 3Y7Q878020 3Y7Q87802-0 TOHATSU $80.14 1
(1-23) DECAL SET 3Y6N878020 3Y6N87802-0 NISSAN $0.00 1 Sold Out View More Details
(2) CAUTION DECAL A 3C7721800M 3C7721800M $2.10 1
