18. POWER TILT & TRIM

Click Here for Microfiche Usage Tip

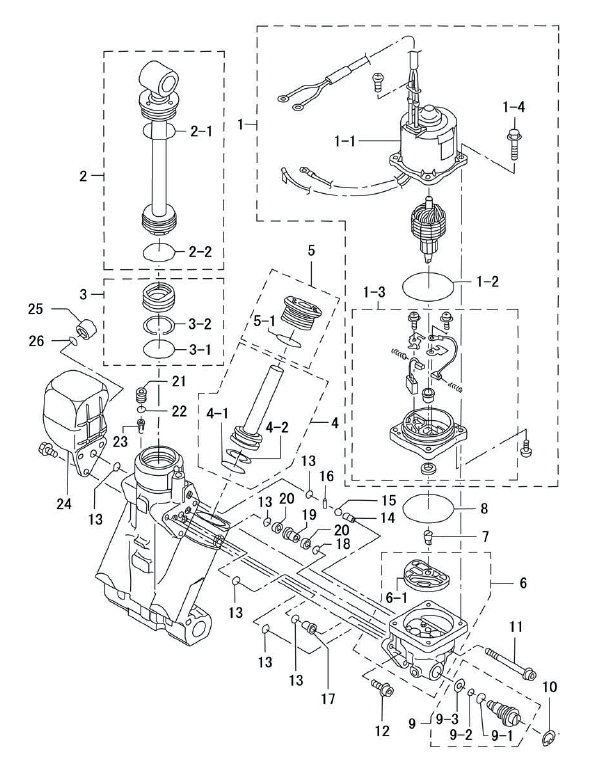

(1) MOTOR(1-1) YOKE ASSY(1-2) MOTOR O-RING(1-3) MOTOR BRACKET(1-4) BOLT(2) PISTON ROD ASSY (TILT)(2-1) O-RING(2-2) O-RING(3) FREE PISTON(3-1) O-RING(3-2) BACK-UP RING(4) TRIM PISTON(4-1) O-RING(4-2) BACK-UP RING(5) ROD GUIDE SUB ASSY (TRIM)(5-1) O-RING(6) PUMP(6-1) FILTER B(7) PUMP COUPLING(8) O-RING, 1.8-69.6(9) MANUAL VALVE(9-1) O-RING(9-2) PACKING(9-3) BACK-UP RING(10) C-RING(11) BOLT(12) BOLT(13) O-RING(13) O-RING(13) O-RING(13) O-RING(13) O-RING(13) O-RING(14) ORIFICE(15) BALL(16) PIN(17) ORIFICE(18) O- RING(19) VALVE SEAT(20) FILTER(20) FILTER(21) PLUG(22) O-RING(23) FILTER(24) RESERVOIR TANK(25) CAP(26) O-RING



Parts List
2006 :: 70 HP :: TLDI Nissan NSD70B (AQ) :: POWER TILT & TRIM
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR 3T9771800M 3T9-77180-0 $516.35 1
(1-1) YOKE ASSY 3T9771950M 3T9-77195-0 $0.00 1 Sold Out View More Details
(1-2) MOTOR O-RING 353771821M 353-77182-1 $8.05 1
(1-3) MOTOR BRACKET 3E0771920M 3E0-77192-0 $188.61 1
(1-4) BOLT 3E0771990M 3E0-77199-0 $7.31 4
(2) PISTON ROD ASSY (TILT) 3E0773651M 3E0-77365-1 $407.48 1
(2-1) O-RING 3E0773830M 3E0-77383-0 $1.68 1
(2-2) O-RING 3B7773750M 3B7-77375-0 $3.00 1
(3) FREE PISTON 3B7773771M 3B7-77377-1 $0.00 1 Sold Out View More Details
(3-1) O-RING 3B7773750M 3B7-77375-0 $3.00 1
(3-2) BACK-UP RING 3B7773760M 3B7-77376-0 $7.34 1
(4) TRIM PISTON 3E0773900M 3E0-77390-0 $83.98 2
(4-1) O-RING 3B7773920M 3B7-77392-0 $2.76 2
(4-2) BACK-UP RING 3B7773930M 3B7-77393-0 $6.90 2
(5) ROD GUIDE SUB ASSY (TRIM) 3E0773950M 3E0-77395-0 $62.39 2 Sold Out View More Details
(5-1) O-RING 3E0773980M 3E0-77398-0 $4.72 2
(6) PUMP 3E0774300M 3E0-77430-0 $256.55 1
(6-1) FILTER B 3E0774340M 3E0-77434-0 $22.77 1
(7) COUPLING PUMP 3E0771630M 3E0-77163-0 $9.60 1
(8) O-RING 1.8-69.6 3B7771670M 3B7-77167-0 $6.35 1 Sold Out View More Details
(9) MANUAL VALVE 3E0771761M 3E0-77176-1 $71.25 1
(9-1) O-RING 3B7774110M 3B7-77411-0 $4.78 1
(9-2) PACKING 3E0774070M 3E0-77407-0 $7.53 1
(9-3) BACK-UP RING 3E0774080M 3E0-77408-0 $3.18 1
(10) C-RING 9450031800M 945003-1800 $1.66 1
(11) BOLT 3E0774310M 3E0-77431-0 $6.84 1
(12) BOLT 3E0774320M 3E0-77432-0 $0.00 2 Sold Out View More Details
(13) O-RING 3E0771670M 3E0-77167-0 $3.20 6
(14) ORIFICE 3E0775570M 3E0-77557-0 $22.80 1
(15) BALL 3E0775580M 3E0-77558-0 $0.92 1
(16) PIN 3E0775590M 3E0-77559-0 $3.37 1
(17) ORIFICE 3E0774790M 3E0-77479-0 $6.74 1
(18) O-RING 3B7771690M 3B7-77169-0 $5.02 1
(19) VALVE SEAT 3E0774530M 3E0-77453-0 $25.93 1
(20) FILTER 3E0774560M 3E0-77456-0 $6.84 2
(21) PLUG 3E0774720M 3E0-77472-0 $10.04 1
(22) O-RING 3B7771790M 3B7-77179-0 $3.85 1
(23) FILTER 3E0774750M 3E0-77475-0 $9.03 1
(24) RESERVOIR TANK 3E0771650M 3E0-77165-0 $81.48 1 Sold Out View More Details
(25) CAP 3E0771680M 3E0-77168-0 $6.01 1
(26) O-RING 3E0771690M 3E0-77169-0 $2.10 1
