17. BRACKET

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (RIGHT)(2) CLAMP BRACKET (LEFT)(3) BOLT(4) WASHER(5) SWIVEL BRACKET SHAFT(6) WASHER, 25.7-50-1(6) WASHER, 25.7-50-1(7) NYLON NUT, 7/8(8) THRUST ROD(9) THRUST ROD PIN(10) SWIVEL BRACKET(10) SWIVEL BRACKET(11) BUSHING, 25.6-28.6-40(11) BUSHING, 25.6-28.6-40(12) GREASE FITTING(12) GREASE FITTING(13) TILT STOPPER(13-1) TILT STOPPER GRIP(13-2) SPRING PIN(13-3) WASHER, 10.5-18-1.5(14) SPRING, TILT STOPPER(15) COLLAR, 10.2-12-12(15) COLLAR, 10.2-12-12(16) GROUND CABLE(17) POWER TRIM & TILT(18) CYLINDER PIN (UPPER)(19) BOLT(20) WASHER, 6.5-23-1.5(21) BUSHING, 18-24-19(21) BUSHING, 18-24-19(22) BUSHING, 18-20-20.5(22) BUSHING, 18-20-20.5(23) CYLINDER PIN (LOWER)(24) BUSHING, 22-25.4-23.5(24) BUSHING, 22-25.4-23.5(24) BUSHING, 22-25.4-23.5(24) BUSHING, 22-25.4-23.5(25) WASHER, 22.6-30-2(25) WASHER, 22.6-30-2(26) C-RING, D=22(26) C-RING, D=22(27) TRIM SENSOR(27) TRIM SENSOR(28) BOLT(29) WASHER, 6-16-1.5(30) LEAD WIRE BAND, 104(31) TRIM SENSOR EXTENSION CORD(31) TRIM SENSOR EXTENSION CORD(32) CLAMP, 6.5-47.5P(32) CLAMP, 6.5-47.5P(33) BOLT(33) BOLT(34) DRAG LINK "H"(34-1) DRAG LINK SPACER(34-2) BOLT, 3/8-50(34-3) NYLON NUT, 3/8(34-3) NYLON NUT, 3/8(34-4) WASHER, 9.6-18-2(34-4) WASHER, 9.6-18-2(34-4) WASHER, 9.6-18-2(34-5) DRAG LINK SEAL RING(35) STEERING SHAFT(36) BUSHING, 32-40-45(36) BUSHING, 32-40-45(37) THRUST PLATE(37) THRUST PLATE(38) STEERING SHAFT SEAL RING(39) O-RING, 4.5-32(40) C-RING, D=32(41) RUBBER MOUNT (UPPER)(42) RUBBER MOUNT BOLT (UPPER)(43) DAMPER, 21-36-5(44) WASHER, 11.5-32-3(45) MOUNT HOLDING PLATE (UPPER)(46) BOLT(47) DAMPER (UPPER)(48) BOLT(49) WASHER, 6-16-1.5(50) MOUNT BRACKET(51) RUBBER MOUNT (LOWER)(52) RUBBER MOUNT BOLT (LOWER)(53) WASHER, 13-34-3(54) DAMPER, 21-36-5(55) WASHER, 12.2-25-2(56) NUT, 12-P1.5(57) WASHER(58) MOUNT HOLDING PLATE (LOWER)(59) BOLT, 8-25(60) DAMPER (LOWER)(61) ANODE(62) BOLT(63) GROUND CABLE(64) GROUND CABLE(65) BOLT(65) BOLT(65) BOLT(66) BOLT, 12-20 P-1.75(67) CLAMP, 6.5-14L(68) SCREW(69) ANODE(70) BOLT



Parts List

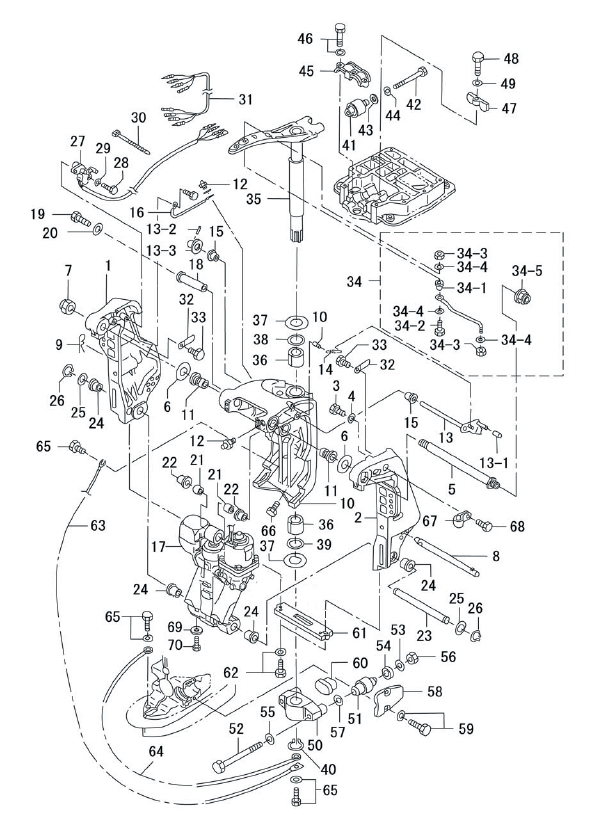

2006 :: 70 HP :: TLDI Nissan NSD70B (AQ) :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3E0Q621120 3E0Q62112-0 STERN BRACKET (RIGHT) STARBOARD $0.00 1 Sold Out View More Details
(2) CLAMP BRACKET (LEFT) 3E0Q621131 3E0Q62113-1 STERN BRACKET (LEFT) PORT $183.61 1
(3) BOLT 9102131020M 910213-1020 $0.00 1 Sold Out View More Details
(4) WASHER 9402131000M 940213-1000 $1.04 1 Sold Out View More Details
(5) SWIVEL BRACKET SHAFT 3E0621911M 3E0-62191-1 BRACKET BOLT $107.87 1 Sold Out View More Details
(6) WASHER 25.7-50-1 3E0621160M 3E0621160M $1.52 2
(7) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(8) THRUST ROD 3E0621211M 3E0-62121-1 $0.00 1 Sold Out View More Details
(9) R-PIN D=10 3B7621291M 3B7-62129-1 $10.81 1
(10) SWIVEL BRACKET 3E0Q623130 3E0Q62313-0 $463.29 1 Sold Out View More Details
(11) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.31 2
(12) GREASE FITTING 344671770M 344-67177-0 $2.56 5 Sold Out View More Details
(13) TILT STOPPER 3Y9624310M 3Y9-62431-0 $53.45 1
(13-1) TILT STOPPER GRIP 3Y9624330M 3Y9-62433-0 $3.74 1
(13-2) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(13-3) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 1
(14) SPRING TILT STOPPER 3E0624731M 3E0-62473-1 $4.63 1 Sold Out View More Details
(15) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(16) GROUND CABLE 398623961M 398-62396-1 L=130 $5.75 1 Sold Out View More Details
(17) POWER TRIM & TILT 3T9771501M 3T9-77150-1 $2,776.36 1 Sold Out View More Details
(18) CYLINDER PIN (UPPER) 3C8770710M 3C8-77071-0 $10.81 1 Sold Out View More Details
(19) BOLT 9101130612M 910113-0612 $0.84 1
(20) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 1
(21) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.07 2
(22) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.31 2
(23) CYLINDER PIN (LOWER) 3E0771010M 3E0-77101-0 $49.09 1
(24) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.31 4
(25) WASHER 22.6-30-2 346624121M 346-62412-1 $2.08 2
(26) C-RING D=22 9451032200M 945103-2200 $1.85 2
(27) TRIM SENSOR 3F3725741M 3F3-72574-1 4 WIRE L=1700 $184.05 1
(27) TRIM SENSOR 3T1725740M 3T1-72574-0 2 WIRE $184.05 1
(28) BOLT 9101130620M 910113-0620 $1.04 2
(29) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(30) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(31) TRIM SENSOR EXTENSION CORD 3F3725731M 3F3-72573-1 4-WIRE L=6000 $135.75 1
(31) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 2-WIRE L=6000 $42.93 1
(32) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(33) BOLT 9101130612M 910113-0612 $0.84 2
(34) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $154.19 1
(34-1) SPACER 3E0849140M 3E0-84914-0 $7.32 1
(34-2) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $11.28 1
(34-3) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(34-4) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(34-5) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
(35) STEERING SHAFT 3B7Q620101 3B7Q62010-1 $306.23 1
(36) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $7.59 2
(37) THRUST PLATE 3B7624231M 3B7-62423-1 $3.13 2
(38) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(39) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.00 1
(40) C-RING D=32 9451033200M 945103-3200 $2.01 1
(41) RUBBER MOUNT (UPPER) 3B7613010M 3B7-61301-0 $71.35 2
(42) RUBBER MOUNT BOLT (UPPER) 3B7613071M 3B7-61307-1 $10.12 2
(43) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(44) WASHER 11.5-32-3 3B7613350M 3B7-61335-0 $3.00 2
(45) MOUNT HOLDING PLATE (UPPER) 3B7Q613411 3B7Q61341-1 RUBBER MOUNT CAP (UPPER) $0.00 1 Sold Out View More Details
(46) BOLT 9101135835M 910113-5835 $3.28 3
(47) DAMPER (UPPER) 3B7613390M 3B7-61339-0 $6.65 1
(48) BOLT 9101130625M 910113-0625 $0.95 1
(49) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(50) MOUNT BRACKET 3B7Q614112 3B7Q61411-2 $0.00 1 Sold Out View More Details
(51) RUBBER MOUNT (LOWER) 353613021M 353-61302-0 $55.20 2
(52) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $15.81 2
(53) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(54) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(55) WASHER 12.2-25-2 353613151M 353-61315-1 $3.20 2
(56) NUT 12-P1.5 3B7613240M 3B7-61324-0 $4.78 2
(57) WASHER 9402131200M 940213-1200 $2.10 2
(58) MOUNT HOLDING PLATE (LOWER) 3B7Q613420 3B7Q61342-0 RUBBER MOUNT CAP (LOWER) $27.54 2
(59) BOLT 8-25 3N4613430M 3N4-61343-0 $1.62 4
(60) DAMPER (LOWER) 353613360M 353-61336-0 $11.02 1 Sold Out View More Details
(61) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(62) BOLT 9101036630M 910103-6630 $1.30 2
(63) GROUND CABLE 3C8623961M 3C8-62396-0 L=210 $4.56 1
(64) GROUNG CABLE 3A3623961M 3A3-62396-0 L=110 $17.85 1
(65) BOLT 9101035612M 910103-5612 $1.07 3
(66) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.76 2 Sold Out View More Details
(67) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(68) SCREW 9215035612M 921503-5612 $0.86 1
(69) ANODE 369602181M 369-60218-1 PTT $7.42 1
(70) BOLT 9101035616M 910103-5616 $1.15 1
