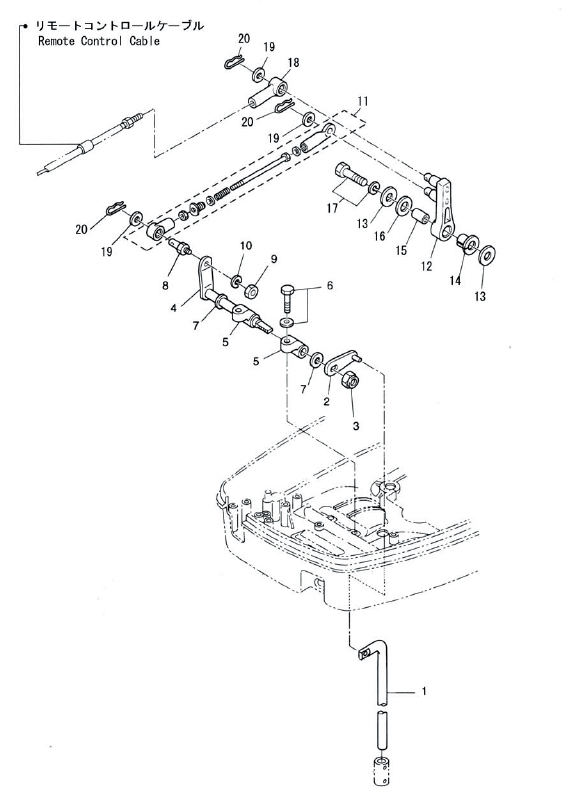

16. SHIFT

Click Here for Microfiche Usage Tip
(1) SHIFT ROD(2) SHIFT ROD LEVER(3) NYLON NUT, 10-P1.5(4) SHIFT LEVER SHAFT(5) SHIFT LEVER SHAFT HOLDER(5) SHIFT LEVER SHAFT HOLDER(6) BOLT(7) WASHER, 10.5-18-1.5(7) WASHER, 10.5-18-1.5(8) CABLE PIN(9) NUT(10) SPRING WASHER(11) SHIFT ASSIST ASSY(12) SHIFT ARM(13) WASHER, 8.5-24-1.5(13) WASHER, 8.5-24-1.5(14) BUSHING, 12-14-15.5(15) COLLAR, 8.4-12-17(16) WASHER, 12.5-24-1(17) BOLT(18) CABLE JOINT(19) WASHER, 8.5-18-1.6(19) WASHER, 8.5-18-1.6(19) WASHER, 8.5-18-1.6(20) SNAP PIN, D=8(20) SNAP PIN, D=8(20) SNAP PIN, D=8



Parts List
2006 :: 70 HP :: TLDI Nissan NSD70B (AQ) :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT ROD 3T9662150M 3T9-66215-0 $0.00 1 Sold Out View More Details
(2) SHIFT ROD LEVER 3T9661100M 3T9-66110-0 $17.12 1
(3) NYLON NUT 9304031000M 930403-1000 $4.56 1
(4) SHIFT LEVER SHAFT 3T9662250M 3T9-66225-0 $36.98 1
(5) SHIFT LEVER SHAFT HOLDER 353661451M 353-66145-1 $5.07 2
(6) BOLT 9101035825M 910103-5825 OR 910113-5825 $1.89 2
(7) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 2
(8) CABLE PIN 353837281M 353-83728-0 $8.97 1
(9) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(10) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(11) SHIFT ASSIST ASSY 3T9661501M 3T9-66150-1 $26.20 1
(12) SHIFT ARM 3B7661220M 3B7-66122-0 $22.84 1
(13) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(14) BUSHING 12-14-15.5 3B7637130M 3B7-63713-0 $2.07 1
(15) COLLAR 8.4-12-17 3B7637320M 3B7-63732-0 $2.13 1
(16) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 $2.31 1
(17) BOLT 9101036835M 910103-6835 $2.01 1
(18) CABLE JOINT 3B7837151M 3B7-83715-1 $4.83 1 Sold Out View More Details
(19) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 OR 353-83719-0 $2.39 3
(20) SNAP PIN D=8 9516030800M 951603-0800 $0.70 3
