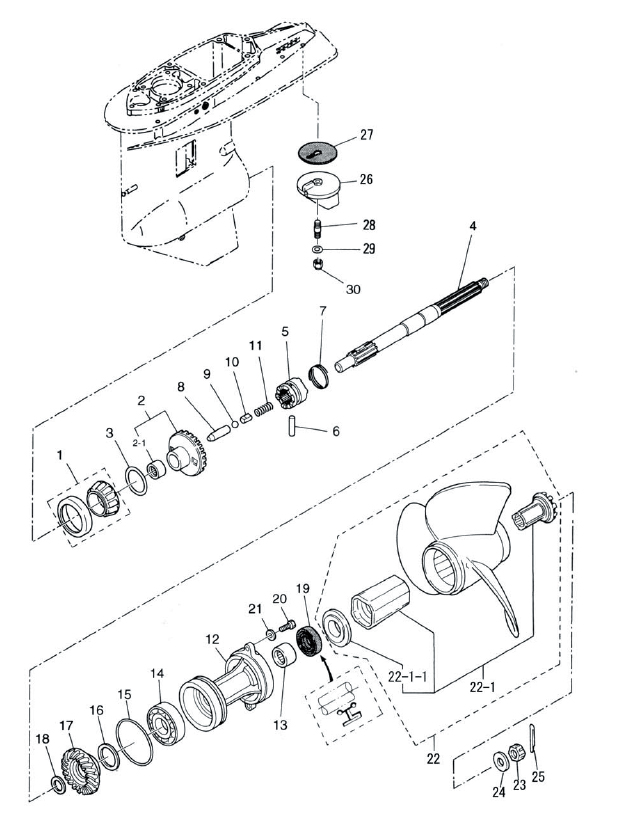

15. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) TAPER ROLLER BEARING, 30209(2) BEVEL GEAR "A"(2-1) NEEDLE BEARING, 25-32-26(3) SHIM, 47-57-0.15(3) SHIM, 47-57-0.1(4) PROPELLER SHAFT(5) CLUTCH(6) CLUTCH PIN(7) CLUTCH PIN SNAP(8) CLUTCH PUSH ROD(9) STEEL BALL, 9/16(10) CLUTCH SPRING RETAINER(11) CLUTCH SPRING(12) PROPELLER SHAFT HOUSING(13) NEEDLE BEARING, 30-40-30(14) BEARING, 6208(15) O-RING, 3.1-94.4(16) SHIM, 42-50-0.15(16) SHIM, 42-50-0.1(17) BEVEL GEAR "C"(18) BEVEL GEAR "C" WASHER(18) BEVEL GEAR "C" WASHER(18) BEVEL GEAR "C" WASHER(19) OIL SEAL, 30-50-12(20) BOLT, 8-30 PRE-COATED(21) WASHER(22) PROPELLER M-1 1 (3 X 14.0 X 11.0)(22) PROPELLER M-13 (3 X 14.0 X 13.0)(22) PROPELLER M-15 (3 X 13.75 X 15.0)(22) PROPELLER M-16 (3 X 13.25 X 16.0)(22) PROPELLER M-17 (3 X 13.25 X 17.0)(22) PROPELLER M-19 (3 X 13.0 X 19.0)(22) PROPELLER M-21 (3 X 12.75 X 21.0)(22-1) PROPELLER HUB KIT(22-1-1) FORWARD THRUST WASHER(23) PROPELLER NUT(24) WASHER, 17-32-3(25) SPLIT PIN, 3-25(26) TRIM TAB(27) TRIM TAB GASKET(28) STUD BOLT(29) WASHER(30) NYLON NUT, 8-P 1.25



Parts List
2006 :: 70 HP :: TLDI Nissan NSD70B (AQ) :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 30209 3C7602150M 3C7-60215-0 $61.67 1
(2) BEVEL GEAR A 3J5640100M 3J5-64010-0 $242.28 1
(2-1) NEEDLE BEARING 25-32-26 3B7640110M 3B7-64011-0 $34.51 1
(3) SHIM 47-57-0.15 3B7640150M 3B7-64015-0 $0.87 0
(3) SHIM 47-57-0.1 3B7640160M 3B7-64016-0 $1.42 0
(4) PROPELLER SHAFT 3B7642110M 3B7-64211-0 $295.84 1 Sold Out View More Details
(5) CLUTCH 3C7642150M 3C7-64215-0 $187.23 1
(6) CLUTCH PIN 3B7642180M 3B7-64218-0 $3.39 1
(7) CLUTCH PIN SNAP 3B7642191M 3B7-64219-1 $5.18 1
(8) CLUTCH PUSH ROD 3B7642230M 3B7-64223-0 $0.00 1 Sold Out View More Details
(9) STEEL BALL 9/16 9650021609M 965002-1609 $1.89 1
(10) CLUTCH SPRING RETAINER 3B7642220M 3B7-64222-0 $11.02 1
(11) CLUTCH SPRING 346642210M 346-64221-0 $1.61 1
(12) PROPELLER SHAFT HOUSING 3B7Q601011 3B7S60101-1 $80.99 1
(13) NEEDLE BEARING 30-40-30 3B7602110M 3B7-60211-0 $33.06 1
(14) BEARING 6208 960106208M 9601-0-6208 $30.77 1
(15) O-RING 3.1-94.4 3B7601030M 3B7-60103-0 $4.54 1
(16) SHIM 42-50-0.15 3B7640360M 3B7-64036-0 $0.92 0 Sold Out View More Details
(16) SHIM 42-50-0.1 3B7640370M 3B7-64037-0 $0.87 0 Sold Out View More Details
(17) BEVEL GEAR C 3J5640930M 3J5-64093-0 $220.25 1
(18) BEVEL GEAR C WASHER 3B7640320M 3B7-64032-0 T=3.2 $34.08 0
(18) BEVEL GEAR C WASHER 3B7640340M 3B7-64034-0 T=3.0 $34.08 0
(18) BEVEL GEAR C WASHER 3B7640350M 3B7-64035-0 T=2.8 $7.23 0
(19) OIL SEAL 30-50-12 3B7601110M 3B7-60111-0 $11.18 1
(20) BOLT 8-30 PRE-COATED 3C7601080M 3C7-60108-0 $5.92 2
(21) WASHER 9402130800M 940213-0800 $0.60 2
(22) PROPELLER M-1 1 (3 X 14.0 X 11.0) 3N4W645231 3N4W64523-1 $142.37 1
(22) PROPELLER M-13 (3 X 14.0 X 13.0) 3N4W645271 3N4W64527-1 $142.37 1
(22) PROPELLER M-15 (3 X 13.75 X 15.0) 3N4W645321 3N4W64532-1 STD. $142.37 1
(22) PROPELLER M-16 (3 X 13.25 X 16.0) 3N4W645341 3N4W64534-1 $0.00 1 Sold Out View More Details
(22) PROPELLER M-17 (3 X 13.25 X 17.0) 3N4W645361 3N4W64536-1 $142.37 1
(22) PROPELLER M-19 (3 X 13.0 X 19.0) 3N4W645411 3E0-64194-0 $142.37 1
(22) PROPELLER M-21 (3 X 12.75 X 21.0) 3N4W645451 3E0-64196-0 $142.37 1
(22-1) PROPELLER HUB KIT 3Y9642380M 3Y9-64238-0 $0.00 1 Sold Out View More Details
(22-1-1) FORWARD THRUST WASHER 3E0642350M 3E0-64235-0 $142.56 1 Sold Out View More Details
(23) PROPELLER NUT 353641210M 353-64121-0 $15.44 1
(24) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(25) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
(26) TRIM TAB 3B7602171M 3B7-60217-1 $26.40 1
(27) TRIM TAB 3B7602190M 3B7-60219-0 $3.40 1
(28) STUD BOLT 9153130825M 915313-0825 $3.51 1
(29) WASHER 9401130800M 940113-0800 $0.84 1
(30) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
