13. AIR COMPRESSOR

Click Here for Microfiche Usage Tip

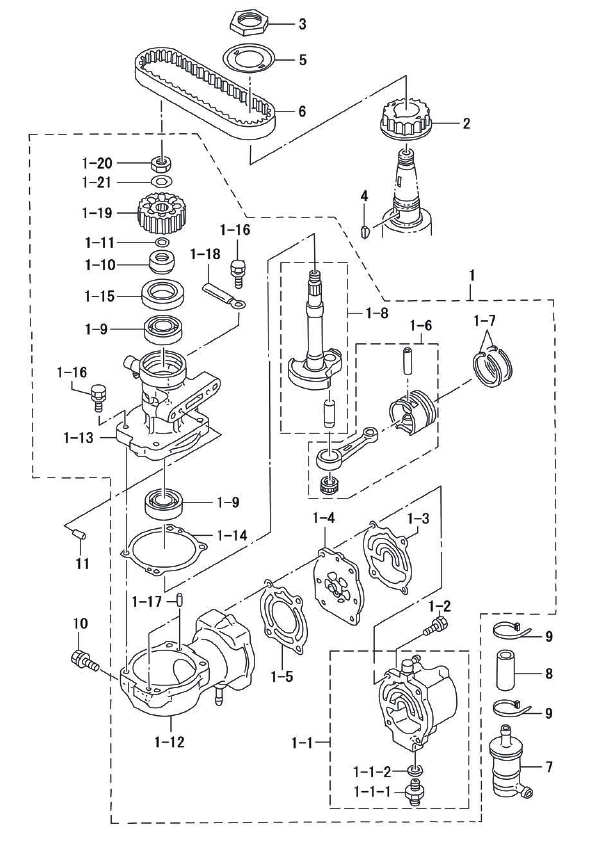

(1) AIR COMPRESSOR(1-1) COMPRESSOR HEAD (WITH NIPPLE)(1-1-1) HOSE JOINT ADAPTER(1-1-2) METAL WASHER, 10.2-17-2(1-2) BOLT(1-3) COMPRESSOR HEAD GASKET(1-4) REED VALVE ASSY(1-5) VALVE SEAT GASKET(1-6) PISTON & CONNECTING ROD(1-7) PISTON RING(1-8) CRANK SHAFT(1-9) BEARING, 6203(1-9) BEARING, 6203(1-10) COLLAR, 13.5-25-13(1-11) O-RING, 1,9-13(1-12) COMPRESSOR CYLINDER(1-13) COMPRESSOR HOUSING(1-14) COMPRESSOR HOUSING GASKET(1-15) OIL SEAL, 25-45-7(1-16) BOLT(1-16) BOLT(1-17) DOWEL PIN, 4-10(1-18) CLAMP, 6.5-47.5P(1-19) DRIVEN PULLEY(1-20) DRIVEN PULLEY NUT, 10-P1.25(1-21) WASHER, 10.5-20-3.2(2) DRIVE PULLEY(3) PULLEY NUT(4) DRIVE PULLEY KEY(5) BELT GUIDE(6) DRIVE BELT(7) AIR FILTER(8) AIR HOSE(9) LEAD WIRE BAND, 104(9) LEAD WIRE BAND, 104(10) BOLT(11) DOWEL PIN, 4-10



Parts List
2006 :: 50 HP :: TLDI Tohatsu MD50B (AQ) :: AIR COMPRESSOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR COMPRESSOR 3T5B100003 3T5B10000-3 041783XD~ $0.00 1 Sold Out View More Details
(1-1) COMPRESSOR HEAD (WITH NIPPLE) 3Z5B100090 3Z5B10009-0 041783XD~ $183.43 1
(1-1-1) HOSE JOINT ADAPTER 3T5043080M 3T5-04308-0 $5.34 1
(1-1-2) METAL WASHER 10.2-17-2 3T5043090M 3T5-04309-0 $0.81 1
(1-2) BOLT 9101247630M 910124-7630 $1.27 4
(1-3) COMPRESSOR HEAD GASKET 3T5100120M 3T5-10012-0 $3.82 1
(1-4) REED VALVE ASSY 3T5100100M 3T5-10010-0 $88.51 1 Sold Out View More Details
(1-5) VAVLE SEAT GASKET 3T5100190M 3T5-10019-0 $3.82 1 Sold Out View More Details
(1-6) PISTON & CONNECTING ROD 3T5873301M 3T5-87330-1 $0.00 1 Sold Out View More Details
(1-7) PISTON RING 3T5100250M 3T5-10025-0 $6.54 2
(1-8) CRANK SHAFT 3T5873310M 3T5-87331-0 $125.21 1
(1-9) BEARING 6203 960106203M 9601-0-6203 $16.50 2
(1-10) COLLAR 13.5-25-13 3T5100420M 3T5-10042-0 $0.00 1 Sold Out View More Details
(1-11) O-RING 13-1.9 3T5100460M 3T5-10046-0 $0.81 1
(1-12) COMPRESSOR CYLINDER 3Z5B100480 3Z5B10048-0 $162.80 1
(1-13) COMPRESSOR HOUSING 3T5B100510 3T5B10051-0 $366.39 1
(1-14) COMPRESSOR HOUSING GASKET 3T5100540M 3T5-10054-0 $5.06 1
(1-15) OIL SEAL 25-45-7 3T5100410M 3T5-10041-0 $13.26 1
(1-16) BOLT 9101135625M 910113-5625 $1.47 4
(1-17) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(1-18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(1-19) DRIVEN PULLEY 3T5100620M 3T5-10062-0 $51.92 1
(1-20) MAGNETO NUT (10P-1.25) 309001320M 309-00132-0 $1.61 1
(1-21) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 1
(2) DRIVE PULLEY 3T5100600M 3T5-10060-0 $50.40 1
(3) PULLEY NUT 3T5100680M 3T5-10068-0 $5.15 1
(4) KEY 3T5101310M 3T5-10131-0 $1.56 1
(5) BELT GUIDE 3T5100630M 3T5-10063-0 $13.89 1
(6) DRIVE BELT 3T5100610M 3T5-10061-0 $27.49 1
(7) AIR FILTER 3T5101300M 3T5-10130-0 $18.34 1
(8) AIR HOSE 98AC90055M 98AC-9-0055 $7.73 1
(9) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(10) BOLT 9101037835M 910103-7835 $2.22 3
(11) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
