10. MAGNETO

Click Here for Microfiche Usage Tip

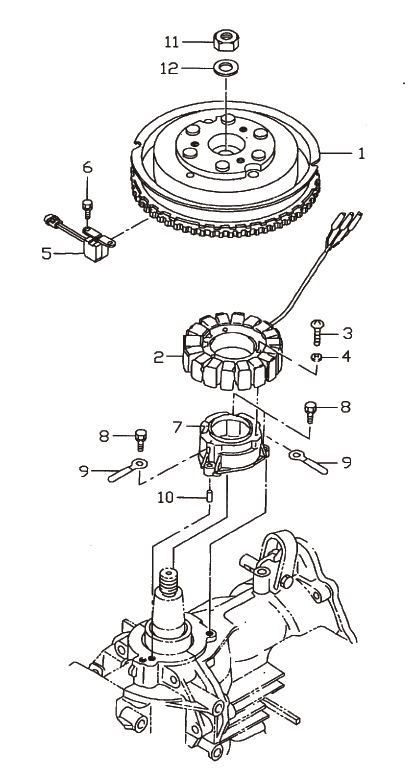

(1) FLYWHEEL(2) ALTERNATOR(3) SCREW(4) SPRING WASHER(5) PICK UP COIL(6) BOLT(7) COIL BRACKET(8) BOLT(8) BOLT(9) CLAMP, 6.5-47.5P(9) CLAMP, 6.5-47.5P(10) DOWEL PIN, 4-10(11) NUT, 18-P1.5(12) WASHER, 19-34-3



Parts List
2006 :: 50 HP :: TLDI Tohatsu MD50B (AQ) :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL 3T5061910M 3T5-06191-0 F4T601-71 $636.01 1
(2) ALTERNATOR 3Y9061230M 3Y9-06123-0 011601XC~ $701.21 1
(3) SCREW 9215030635M 921503-0635 $1.27 3
(4) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(5) PICK-UP COIL 3T5061450M 3T5-06145-0 CRANK POSITION SENSOR $54.80 1
(6) BOLT 9101036512M 9101036512M $0.90 2
(7) COIL BRACKET 3T5060081M 3T5-06008-1 $55.64 1 Sold Out View More Details
(8) BOLT 9101037625M 9101037625M $1.29 3
(9) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(10) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(11) NUT 18 P1.5 353001320M 353-00132-0 $4.40 1
(12) WASHER 19 - 34 - 3 353001330M 353-00133-0 $3.00 1
