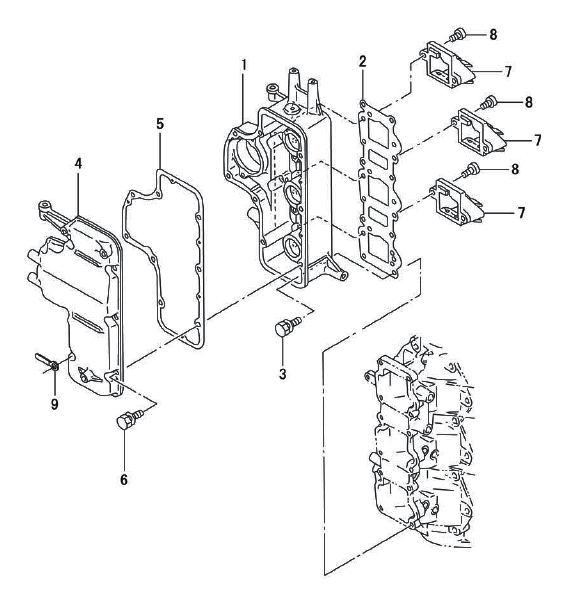

3. AIR CHAMBER (AIR BOX)

Click Here for Microfiche Usage Tip
(1) AIR CHAMBER(2) REED VALVE GASKET(3) BOLT, 6-25 PRE-COATED(4) AIR CHAMBER COVER(5) AIR CHAMBER COVER GASKET(6) BOLT(7) REED VALVE ASSY(7) REED VALVE ASSY(7) REED VALVE ASSY(8) SCREW(8) SCREW(8) SCREW(9) CLAMP, 6.5-120P

Displaying 1 to 9 (of 9 products)

Parts List
2006 :: 50 HP :: TLDI Tohatsu MD50B (AQ) :: AIR CHAMBER (AIR BOX)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR CHAMBER 3T5B022400 3T5B02240-0 $99.65 1
(2) REED VALVE GASKET 3T5021041M 3T5-02104-1 $18.32 1
(3) BOLT 6-25 PRE-COATED 3T5022410M 3T5-02241-0 $0.86 12 Sold Out View More Details
(4) AIR CHAMBER COVER 3T5B022440 3T5B02244-0 $0.00 1 Sold Out View More Details
(5) AIR CHAMBER COVER GASKET 3T5022450M 3T5-02245-0 $27.74 1
(6) BOLT 9101035625M 910103-5625 OR 910113-5625 $1.57 8
(7) REED VALVE ASSY 3T5021000M 3T5-02100-0 $60.44 3 Sold Out View More Details
(8) SCREW 9215216516M 921521-6516 $0.60 6
(9) CLAMP 6.5-120P 3Z5069720M 3Z5-06972-0 $0.00 1 Sold Out View More Details
Displaying 1 to 9 (of 9 products)
