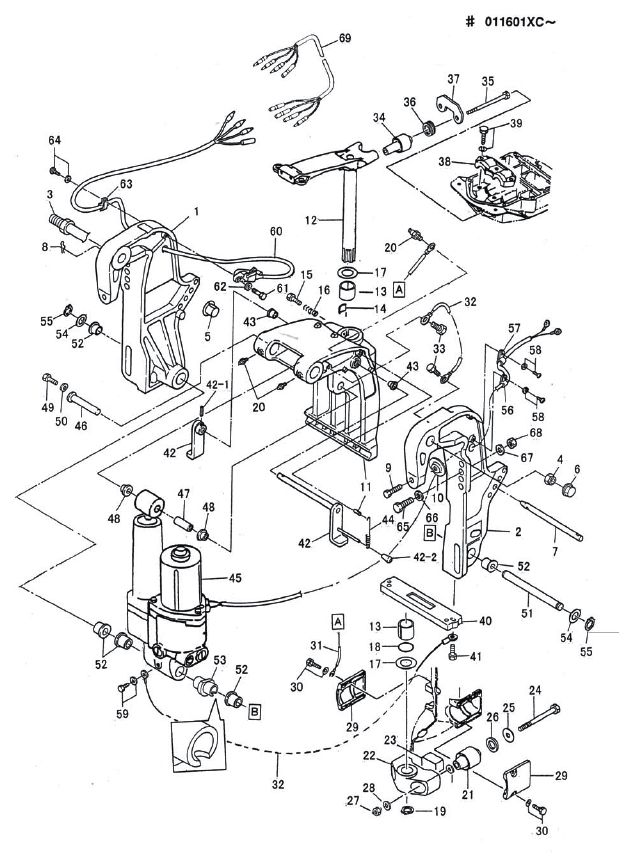

20. BRACKET (2) POWER TRIM & TILT (NEW)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (RIGHT)(2) CLAMP BRACKET (LEFT)(3) SWIVEL BRACKET SHAFT(4) NYLON NUT, 7/8(5) BRACKET SHAFT BUSHING(6) BRACKET SHAFT CAP(7) THRUST ROD(8) SNAP PIN, D=10(9) CLAMP SCREW(10) CLAMP SCREW PAD(11) SWIVEL BRACKET (POWER TRIM & TILT)(12) STEERING SHAFT(13) BUSHING, 30-36-41(13) BUSHING, 30-36-41(14) FRICTION PLATE(15) BOLT(16) FRICTION PLATE SPRING(17) THRUST PLATE(17) THRUST PLATE(18) O-RING, 3.5-29.7(19) C-RING, D=28(20) GREASE FITTING(20) GREASE FITTING(21) RUBBER MOUNT (LOWER)(22) MOUNT BRACKET(23) DAMPER (LOWER)(24) RUBBER MOUNT BOLT (LOWER)(25) WASHER, 13-34-3(26) RUBBER DAMPER, 21-36-5(27) NYLON NUT, 12-P1.75(28) WASHER(29) MOUNT HOLDING PLATE (LOWER)(29) MOUNT HOLDING PLATE (LOWER)(30) BOLT(30) BOLT(31) GROUND CABLE(32) GROUND CABLE(32) GROUND CABLE(33) BOLT(34) RUBBER MOUNT (UPPER)(35) RUBBER MOUNT BOLT (UPPER)(36) DAMPER (UPPER)(37) LOCK PLATE (UPPER)(38) MOUNT HOLDING PLATE (UPPER)(39) BOLT(40) ANODE(41) BOLT(42) TILT STOPPER (PTT)(42) TILT STOPPER (PTT)(42-1) SPRING PIN, 3.5-16(42-2) TILT STOPPER GRIP(43) COLLAR, 10.2-12-12(43) COLLAR, 10.2-12-12(44) TILT STOPPER SPRING (PTT)(45) POWER TRIM & TILT(46) CYLINDER PIN (UPPER)(47) BUSHING, 13-16-40(48) BUSHING, 13-17-19.5(48) BUSHING, 13-17-19.5(49) BOLT(50) WASHER, 6.5-23-1.5(51) CYLINDER PIN (LOWER)(52) BUSHING, 18-24-22(52) BUSHING, 18-24-22(52) BUSHING, 18-24-22(52) BUSHING, 18-24-22(53) BUSHING, 18-24-60(54) WASHER, 18.2-34-1(54) WASHER, 18.2-34-1(55) C-RING, D=18(55) C-RING, D=18(56) CLAMP, 6-9.5L(57) CLAMP, 6-14L(58) SCREW(58) SCREW(59) BOLT(60) TRIM SENSOR(60) TRIM SENSOR(61) BOLT(62) WASHER, 6-16-1.5(63) CLAMP, 6-9.5L(64) SCREW(65) BOLT, 12-P 1.25(66) WASHER, 13-34-3(67) WASHER(68) NUT, 12-P1.25(69) EXTENSION CORD (TRIM SENSOR)(69) EXTENSION CORD (TRIM SENSOR)



Parts List
2006 :: 50 HP :: TLDI Nissan NSD50B (AQ) :: BRACKET (2) POWER TRIM & TILT (NEW)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3Z5Q772110 3Z5Q77211-0 STERN BRACKET (RIGHT) STARBOARD $0.00 1 Sold Out View More Details
(2) CLAMP BRACKET (LEFT) 3Z5Q772120 3Z5Q77212-0 STERN BRACKET (LEFT) PORT $0.00 1 Sold Out View More Details
(3) SWIVEL BRACKET SHAFT 3AD621910M 3Z5-62191-0 BRACKET BOLT OR 3Z5-62191-0 $41.18 1
(4) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(5) BUSHING BRACKET BOLT 3C8772130M 3C8-77213-0 $5.07 2
(6) CAP BRACKET BOLT 346621270M 346-62127-0 FOR F TYPE $2.31 2
(7) THRUST ROD 3R0771180M 3R0-77118-0 $22.77 1
(8) SNAP PIN D=10 9516031000M 951603-1000 $1.13 1
(9) CLAMP SCREW 3C8772140M 3C8-77214-0 $39.91 2
(10) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(11) SWIVEL BRACKET (POWER TRIM & TILT) 3Z5Q772150 3Z5Q77215-0 $292.22 1
(12) STEERING SHAFT 3Z5Q620100 3Z5Q62010-0 $308.12 1
(13) BUSHING 30 - 36 - 41 353624170M 353-62417-0 $5.98 2 Sold Out View More Details
(14) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(15) BOLT 9101130830M 910113-0830 $1.67 1
(16) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(17) THRUST PLATE 353624230M 353624230M $3.92 2
(18) O-RING 3.5 - 29.7 353624150M 353-62415-0 $2.53 1
(19) C-RING D=28 9451032800M 945103-2800 $1.06 1
(20) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(21) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(22) MOUNT BRACKET 3Z5Q614110 3Z5Q61411-0 $0.00 1 Sold Out View More Details
(23) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(24) RUBBER MOUNT BOLT (LOWER) 3C8613211M 3C8-61321-1 $9.66 2
(25) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(26) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(27) NYLON NUT 12-P1.75 9304031200M 930403-1200 $6.47 2
(28) WASHER 9402131200M 940213-1200 $2.10 4
(29) MOUNT HOLDING PLATE (LOWER) 3C8Q613420 3C8Q61342-0 RUBBER MOUNT CAP (LOWER) $16.27 2
(30) BOLT 9101135620M 910113-5620 $1.30 4
(31) GROUND CABLE 3C8623961M 3C8-62396-0 L=210 $4.56 1
(32) GROUND CABLE 398623961M 398-62396-1 L=130 $5.75 2 Sold Out View More Details
(33) BOLT 9101135612M 910113-5612 $1.07 2
(34) RUBBER MOUNT (UPPER) 3E3613011M 3E3-61301-1 $32.23 2
(35) RUBBER MOUNT BOLT (UPPER) 353613070M 353-61307-0 $10.35 2
(36) DAMPER (UPPER) 3E3613330M 3E3-61333-0 $8.97 2
(37) LOCK PLATE (UPPER) 3E3613350M 3E3-61335-0 $5.29 1
(38) MOUNT HOLDING PLATE (UPPER) 3C8Q613410 3C8Q61341-0 RUBBER MOUNT CAP (UPPER) $0.00 1 Sold Out View More Details
(39) BOLT 9101135835M 910113-5835 $3.28 3
(40) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(41) BOLT 9101036630M 910103-6630 $1.30 2
(42) TILT STOPPER (PTT) 3Z5Q624701 3Z5Q62470-1 $66.77 1
(42-1) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(42-2) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(43) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(44) SPRING TILT STOPPER 3R0624730M 3R0-62473-0 $3.91 1
(45) POWER TRIM & TILT 3Z5Q771500 3Z5Q77150-0 $1,410.91 1
(46) CYLINDER PIN UPPER 3R0770710M 3R0-77071-1 $8.58 1
(47) BUSHING 13 -16 - 40 3R0770750M 3R0-77075-0 $1.57 1
(48) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 $1.57 2
(49) BOLT 9101130612M 910113-0612 $0.84 1
(50) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 1
(51) CYLINDER PIN LOWER 3R0771010M 3R0-77101-0 $38.19 1
(52) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 $2.31 5
(53) BUSHING 18-24-60 3Z5771030M 3Z5-77103-0 $3.17 1
(54) WASHER 18.2 - 34 -1 3R0771120M 3R0-77112-0 $2.40 2
(55) C-RING D=18 9451031800M 945103-1800 $1.93 2
(56) CLAMP 6 - 9.5L 336069730M 336-06973-0 $1.41 1
(57) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(58) SCREW 9215035612M 921503-5612 $0.86 2
(59) BOLT 9101135612M 910113-5612 $1.07 1
(60) TRIM SENSOR 3Z5725740M 3Z5-72574-0 4 WIRE L=1700 FOR P TYPE $0.00 1 Sold Out View More Details
(60) TRIM SENSOR 3Z4725740M 3Z4-72574-0 2 WIRE $220.86 1
(61) BOLT 9101130620M 910113-0620 FOR P TYPE $1.04 2
(62) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR P TYPE $1.59 2 Sold Out View More Details
(63) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR P TYPE $1.41 1
(64) SCREW 9215035612M 921503-5612 FOR P TYPE $0.86 1
(65) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 L=105 $5.40 4
(66) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(67) WASHER 9401131200M 940113-1200 OR 940103-1200 $0.65 4
(68) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(69) TRIM SENSOR EXTENSION CORD 3F3725731M 3F3-72573-1 4 WIRE FOR P TYPE L=6000 $135.75 1
(69) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 2 WIRE L=6000 $42.93 1
