19. BRACKET (1) MANUAL TILT

Click Here for Microfiche Usage Tip

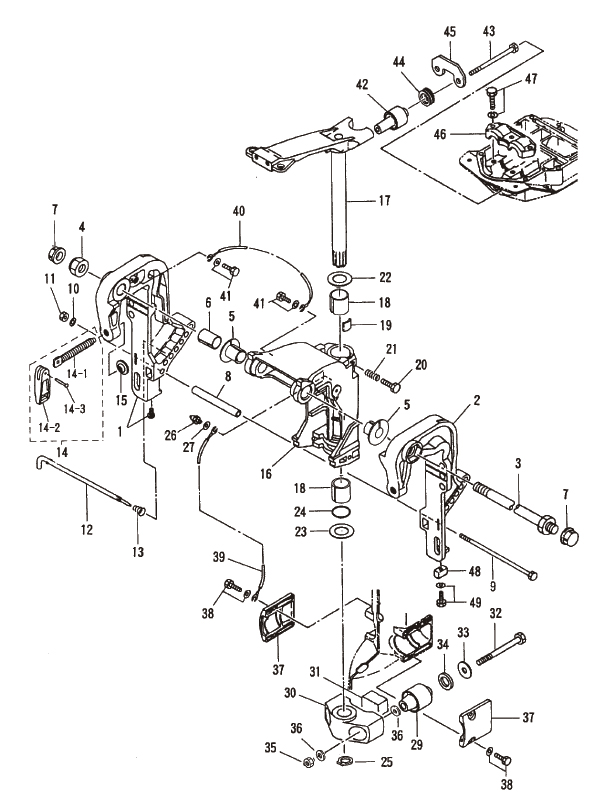

(1) CLAMP BRACKET (RIGHT)(2) CLAMP BRACKET (LEFT)(3) SWIVEL BRACKET SHAFT(4) NYLON NUT, 7/8(5) BRACKET SHAFT BUSHING(5) BRACKET SHAFT BUSHING(6) BUSHING, 22-25-35.5(7) BRACKET SHAFT CAP(7) BRACKET SHAFT CAP(8) DISTANCE PIECE(9) BOLT, 8-170(10) WASHER(11) NUT(12) THRUST ROD(13) THRUST ROD SPRING(14) CLAMP SCREW ASSY(14-1) CLAMP SCREW(14-2) CLAMP SCREW HANDLE(14-3) RIVET, 3-22(15) CLAMP SCREW PAD(16) SWIVEL BRACKET(17) STEERING SHAFT(18) BUSHING, 26-32-30(18) BUSHING, 26-32-30(19) FRICTION PLATE(20) BOLT(21) FRICTION PLATE SPRING(22) THRUST PLATE (UPPER)(23) THRUST PLATE (LOWER)(24) O-RING, 3.5-25.7(25) C-RING, D=25(26) GREASE FITTING(27) WASHER(29) RUBBER MOUNT (LOWER)(30) MOUNT BRACKET(31) DAMPER (LOWER)(32) RUBBER MOUNT BOLT (LOWER)(33) WASHER, 13-34-3(34) RUBBER DAMPER, 21-36-5(35) NYLON NUT, 12-P1.75(36) WASHER(36) WASHER(37) MOUNT HOLDING PLATE (LOWER)(37) MOUNT HOLDING PLATE (LOWER)(38) BOLT(38) BOLT(39) GROUND CABLE(40) GROUND CABLE(41) BOLT(41) BOLT(42) RUBBER MOUNT (UPPER)(43) RUBBER MOUNT BOLT (UPPER)(44) DAMPER (UPPER)(45) LOCK PLATE (UPPER)(46) MOUNT HOLDING PLATE (UPPER)(47) BOLT(48) ANODE(49) BOLT



Parts List
2006 :: 50 HP :: TLDI Nissan NSD50B (AQ) :: BRACKET (1) MANUAL TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3C8Q621120 3C8Q62112-0 STERN BRACKET (RIGHT) STARBOARD $123.66 1
(2) CLAMP BRACKET (LEFT) 3C8Q621130 3C8Q62113-0 STERN BRACKET (LEFT) PORT $109.19 1
(3) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT OR 346-62191-0 $41.18 1
(4) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(5) BUSHING BRACKET BOLT 349621260M 349-62126-0 $4.83 2
(6) BUSHING 22-25-35.5 3C8621320M 3C8-62132-0 $4.83 1
(7) CAP BRACKET BOLT 346621270M 346-62127-0 FOR F TYPE $2.31 2
(8) DISTANCE PIECE 3C8621170M 3C8621170M $13.43 1
(9) BOLT 8-170 3C8621200M 3C8621200M $9.09 1
(10) WASHER 9401130800M 940113-0800 $0.84 1
(11) NUT 9301130800M 930113-0800 $1.99 1 Sold Out View More Details
(12) THRUST ROD 3C8621211M 3C8-62121-1 $19.27 1 Sold Out View More Details
(13) SPRING THRUST ROD 345621222M 345-62122-2 $2.19 1 Sold Out View More Details
(14) CLAMP SCREW ASSY 3C8Q621001 3C8Q62100-2 $56.36 2
(14-1) CLAMP SCREW 3E3621030M 3E3-62103-0 $56.36 2
(14-2) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 2
(14-3) RIVET 3C8621041M 3C8-62104-1 $0.92 2
(15) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(16) SWIVEL BRACKET 3C8Q623102 3C8Q62310-2 $232.67 1
(17) STEERING SHAFT 3C8Q620102 3C8Q62010-2 $0.00 1 Sold Out View More Details
(18) BUSHING 26-32-30 345624170M 345-62417-0 $7.08 2
(19) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(20) BOLT 9101130830M 910113-0830 $1.67 1
(21) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(22) THRUST PLATE (UPPER) 3A0624232M 3A0-62423-2 $2.82 1
(23) THRUST PLATE (LOWER) 346624241M 346-62424-1 $3.02 1
(24) O-RING 3.5 - 25.7 345624150M 345-62415-0 $1.10 1 Sold Out View More Details
(25) C-RING D=25 9451032500M 945103-2500 $1.75 1
(26) GREASE FITTING 344671770M 344-67177-0 $2.56 1 Sold Out View More Details
(27) WASHER 9401130600M 940113-0600 $0.83 1
(29) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(30) MOUNT BRACKET 3C8Q614112 3C8Q61411-2 $83.35 1
(31) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(32) RUBBER MOUNT BOLT (LOWER) 3C8613211M 3C8-61321-1 $9.66 2
(33) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(34) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(35) NYLON NUT 12-P1.75 9304031200M 930403-1200 $6.47 2
(36) WASHER 9402131200M 940213-1200 $2.10 4
(37) MOUNT HOLDING PLATE (LOWER) 3C8Q613420 3C8Q61342-0 RUBBER MOUNT CAP (LOWER) $16.27 2
(38) BOLT 9101135620M 910113-5620 $1.30 4
(39) GROUND CABLE 3C8623961M 3C8-62396-0 L=210 $4.56 1
(40) GROUND CABLE 398623961M 398-62396-1 L=130 $5.75 1 Sold Out View More Details
(41) BOLT 9101035612M 910103-5612 $1.07 2
(42) RUBBER MOUNT (UPPER) 3E3613011M 3E3-61301-1 $32.23 2
(43) RUBBER MOUNT BOLT (UPPER) 353613070M 353-61307-0 $10.35 2
(44) DAMPER (UPPER) 3E3613330M 3E3-61333-0 $8.97 2
(45) LOCK PLATE (UPPER) 3E3613350M 3E3-61335-0 $5.29 1
(46) MOUNT HOLDING PLATE (UPPER) 3C8Q613410 3C8Q61341-0 RUBBER MOUNT CAP (UPPER) $0.00 1 Sold Out View More Details
(47) BOLT 9101135835M 910113-5835 $3.28 3
(48) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(49) BOLT 9101035635M 910103-5635 $1.96 1 Sold Out View More Details
