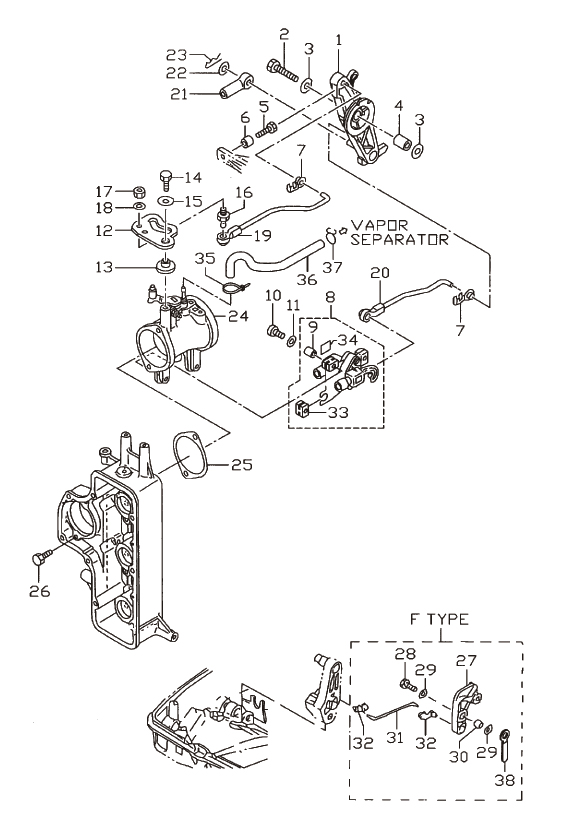

7. THROTTLE

Click Here for Microfiche Usage Tip
(1) ADVANCER ARM(2) BOLT(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(4) COLLAR, 6.2-12-17(5) BOLT(6) COLLAR, 6.2-9-9.3(7) ROD SNAP, 5-3(7) ROD SNAP, 5-3(8) TPS(9) COLLAR, 4.2-6-10.5(10) SCREW(11) WASHER, 4.2-12.5-0.8(12) THROTTLE CAM(13) BUSHING, 6-24-7(14) BOLT(15) WASHER, 6.5-21-1(16) BALL JOINT "B"(17) NUT(18) WASHER(19) THROTTLE LINK ROD(20) TPS LINK ROD(21) CABLE JOINT(22) WASHER, 8.5-18-1.6(23) SNAP PIN, D=8(24) THROTTLE BODY(25) THROTTLE BODY GASKET(26) BOLT, 6-25 PRE-COATED(27) ARM, THROTTLE LIMITER ARM(28) BOLT(29) WASHER(29) WASHER(30) COLLAR, 6.2-9-9.3(31) THROTTLE LIMITER ROD, 3.5-56(32) ROD SNAP, 3.5-4(32) ROD SNAP, 3.5-4(33) RUBBER MOUNT(34) TPS DECAL(35) LEAD WIRE BAND, 104(36) RUBBER HOSE(37) CLIP, o 7(38) CLAMP, 6.5-47.5P



Parts List
2006 :: 50 HP :: TLDI Nissan NSD50B (AQ) :: THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ADVANCER ARM 3C8637110M 3C8637110M $16.54 1
(2) BOLT 9101030635M 910103-0635 $1.10 1
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.50 2
(4) COLLAR 6.2-12-17 3C8637320M 3C8-63732-0 $2.48 1
(5) BOLT 9101030618M 910103-0618 $0.00 1 Sold Out View More Details
(6) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.35 1
(7) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.56 3
(8) TPS 3T5101100M 3T5-10110-0 $306.28 1
(9) COLLAR 4.2-6-10.5 3T5101280M 3T5-10128-0 $1.57 3
(10) SCREW 9215036420M 921503-6420 $0.98 3
(11) WASHER 4.2-12.5-0.8 3T5101290M 3T5-10129-0 $1.02 3
(12) THROTTLE CAM 3T5637180M 3T5-63718-0 $3.27 1
(13) BUSHING 6-24-7 3T5637210M 3T5-63721-0 $2.77 1
(14) BOLT 9101036618M 910103-6618 $0.86 1
(15) WASHER 6.5-21-1 346671150M 346-67115-0 $1.50 1
(16) BALL JOINT B 346052281M 346-05228-0 $4.95 1
(17) NUT 9302030600M 930203-0600 $0.00 1 Sold Out View More Details
(18) WASHER 9401030600M 940103-0600 $0.75 1
(19) THROTTLE LINK ROD 3T5637021M 3T5-63702-1 OLD PART NO. 3T5-63716-0 $6.63 1
(20) TPS LINK ROD 3T5101090M 3T5101090M $4.24 1
(21) CABLE JOINT 3B7837151M 3B7-83715-1 FOR P TYPE $5.16 1
(22) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR P TYPE $2.56 1
(23) SNAP PIN D=8 9516030800M 951603-0800 FOR P TYPE $0.75 1
(24) THROTTLE BODY 3T5101000M 3T5-10100-0 $0.00 1 Sold Out View More Details
(25) THROTTLE BODY GASKET 3T5101040M 3T5-10104-0 $2.90 1
(26) BOLT 6-25 PRE-COATED 3T5022410M 3T5-02241-0 $0.86 2 Sold Out View More Details
(27) ARM THROTTLE LIMITER ARM 3C8052130M 3C8-05213-0 FOR F TYPE $4.47 1 Sold Out View More Details
(28) BOLT 9101140625M 910114-0625 FOR F TYPE $1.11 1
(29) WASHER 9401030600M 940103-0600 FOR F TYPE $0.75 2
(30) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 FOR F TYPE $4.35 1
(31) THROTTLE LIMITER ROD 3.5-56 3C8052210M 3C8-05221-0 FOR F TYPE $2.48 1
(32) ROD SNAP 3.5-4 3C8052230M 3C8-05223-0 FOR F TYPE $1.50 2 Sold Out View More Details
(33) RUBBER MOUNT 3T5101070M 3T5-10107-0 $5.96 3
(34) TPS DECAL 3T5721950M 3T5-72195-0 $1.27 1 Sold Out View More Details
(35) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(36) RUBBER HOSE 98AB31000M 98AB31000M $11.46 1
(37) CLIP ø 7 338011330M 338-01133-0 $1.11 1 Sold Out View More Details
(38) CLAMP 6.5-47.5P 309069720M 309-06972-0 FOR F TYPE $2.21 1
