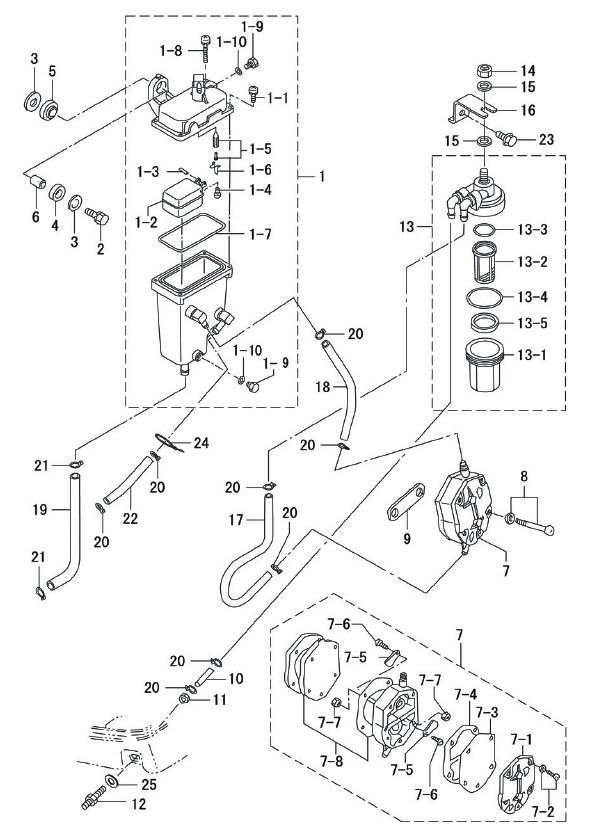

6. VAPOR SEPARATOR & FUEL LINE

Click Here for Microfiche Usage Tip
(1) VAPOR SEPARATOR(1-1) SCREW(1-2) FLOAT(1-3) FLOAT ARM PIN(1-4) SCREW(1-5) FLOAT VALVE(1-6) CLIP(1-7) O-RING(1-8) SCREW(1-9) DRAIN SCREW(1-9) DRAIN SCREW(1-10) O-RING(1-10) O-RING(2) BOLT(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(4) RUBBER MOUNT, 8.5-14-2.5(5) RUBBER MOUNT, 8.5-14-2.5(6) SPACER, 6.2-9-15.7(7) FUEL PUMP(7) FUEL PUMP(7-1) PUMP COVER(7-2) SCREW(7-3) PUMP DIAPHRAGM(7-4) DIAPHRAGM GASKET "B"(7-5) CHECK VALVE(7-5) CHECK VALVE(7-6) SCREW(7-6) SCREW(7-7) NUT(7-7) NUT(7-8) DIAPHRAGM GASKET SET(8) BOLT(9) FUEL PUMP GASKET(10) FUEL PIPE "E"(11) NUT, 10-P 1.25(12) FUEL CONNECTOR (MALE)(13) FUEL FILTER(13-1) CUP(13-2) FILTER(13-3) O-RING B(13-4) O-RING A(13-5) FLOAT(14) NUT(15) WASHER(15) WASHER(16) FILTER PLATE(17) RUBBER HOSE(18) RUBBER HOSE(19) RUBBER HOSE(20) CLIP, o 10(20) CLIP, o 10(20) CLIP, o 10(20) CLIP, o 10(20) CLIP, o 10(20) CLIP, o 10(20) CLIP, o 10(20) CLIP, o 10(21) CLIP, o 12(21) CLIP, o 12(22) RUBBER HOSE(23) BOLT(24) LEAD WIRE BAND, 104(25) GASKET, 10.2-16-0.5



Parts List
2006 :: 50 HP :: TLDI Nissan NSD50B (AQ) :: VAPOR SEPARATOR & FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) VAPOR SEPARATOR 3T5101500M 3T5101500M $200.01 1
(1-1) SCREW 9225316414M 922531-6414 $0.47 3
(1-2) FLOAT 3T5032300M 3T5-03230-0 $24.02 1
(1-3) ARM PIN FLOAT 3F3032320M 3F3-03232-0 $2.19 1
(1-4) SCREW 9215030408M 921503-0408 $0.75 1
(1-5) FLOAT VALVE 3R3032390M 3R3-03239-0 WITH VALVE PIN $11.64 1
(1-6) CLIP 344032440M 344-03244-0 $3.51 1
(1-7) O-RING 3T5032350M 3T5-03235-0 $5.34 1
(1-8) SCREW 9215036430M 921503-6430 $0.00 1 Sold Out View More Details
(1-9) DRAIN SCREW 345032920M 345-03292-0 $3.91 2
(1-10) O-RING 336032930M 336-03293-0 $1.79 2
(2) BOLT 9101036630M 910103-6630 $1.30 2
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 2
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 2
(6) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 2
(7) FUEL PUMP 356040001M 356-04000-1 $88.09 1
(7-1) PUMP COVER 334040040M 334-04004-0 $16.82 1
(7-2) SCREW 9225126528M 922512-6528 $0.69 3
(7-3) PUMP DIAPHRAGM 334040050M 334-04005-0 $29.88 1
(7-4) DIAPHRAGM GASKET B 334040070M 334-04007-0 $8.52 1
(7-5) CHECK VALVE 356040440M 356-04044-0 $4.19 2
(7-6) SCREW 9217220306M 921722-0306 $0.88 2
(7-7) NUT 9302220300M 930222-0300 $0.86 2
(7-8) DIAPHRAGM GASKET SET 356040300M 356-04030-0 $25.62 1
(8) BOLT 9101036640M 910103-6640 $1.44 2
(9) FUEL PUMP GASKET 346049011M 346-04901-0 $2.71 1
(10) RUBBER HOSE 98AB50260M 98AB-5-0260 $11.41 1
(11) NUT 10-P 1.25 332702610M 332-70261-0 $2.58 1
(12) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(13) FUEL FILTER 3T5022300M 3T5-02230-0 $47.18 1
(13-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(13-2) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(13-3) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(13-4) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(13-5) FLOAT 3T5022290M 3T5-02229-0 $6.84 1
(14) NUT 9301030800M 930103-0800 OR 930113-0800 $1.99 1
(15) WASHER 9401030800M 940113-0800 OR 940113-0800 $0.84 2
(16) FILTER PLATE 3T5022390M 3T5-02239-0 $3.97 1
(17) RUBBER HOSE 98AB50260M 98AB-5-0260 $11.41 1
(18) RUBBER HOSE 98AB50190M 98AB-50-190 $11.41 1
(19) RUBBER HOSE 98AB70180M 98AB-7-0180 $13.44 1
(20) CLIP ø10 338022150M 338-02215-0 $1.41 8
(21) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(22) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(23) BOLT 9101036614M 910103-6614 $1.09 1
(24) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(25) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.55 1
