28. OPTIONAL PARTS (2) (P TYPE)

Click Here for Microfiche Usage Tip
(1) TWIN REMOTE CONTROL BOX KIT(2) TIE-BAR KIT "D"(2-1) COLLAR, 9.6-13-6.5(2-1) COLLAR, 9.6-13-6.5(2-2) WASHER, 9.6-18-2(2-2) WASHER, 9.6-18-2(2-2) WASHER, 9.6-18-2(2-2) WASHER, 9.6-18-2(2-3) BOLT, 3/8-19(2-4) SPLIT PIN, 2-15(2-5) BOLT, 3/8-30(2-6) STEERING ROD JOINT(2-7) NYLON NUT, 3/8(3) TIE-BAR KIT "C"(4) STEERING HOOK PLATE(5) STUD BOLT(6) NYLON NUT, 8-P 1.25(7) WASHER(8) CREVICE ASSY(8-1) COLLAR, 9.6-13-20.5(8-2) WASHER, 9.6-18-2(8-2) WASHER, 9.6-18-2(8-3) BOLT, 3/8-43(8-4) NYLON NUT, 3/8(8-4) NYLON NUT, 3/8(8-5) BOLT, 3/8-35(9) DRAG LINK SPACER

Displaying 1 to 21 (of 21 products)

Parts List

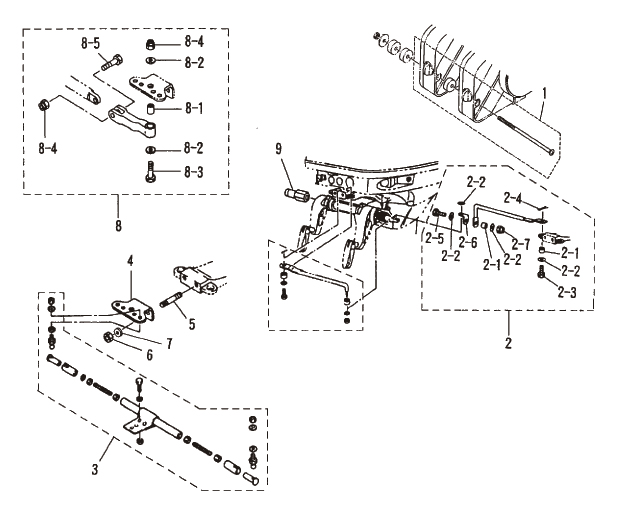

2006 :: 40 HP :: TLDI Tohatsu MD40B (AQ) :: OPTIONAL PARTS (2) (P TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TWIN REMOTE CONTROL BOX KIT 3A3813010M 3A3-81301-0 $56.56 1
(2) TIE-BAR KIT D 3C8849001M 3C8-84900-1 $0.00 1 Sold Out View More Details
(2-1) COLLAR 9.6-13-6.5 3C8849141M 3C8-84914-1 $3.50 2
(2-2) WASHER 9.6-18-2 353849160M 353-84916-0 $1.56 4
(2-3) BOLT 3/8-19 3C8849170M 3C8-84917-0 $8.61 1
(2-4) SPLIT PIN 2-15 9515030215M 951503-0214 $0.90 1
(2-5) BOLT 3/8-30 3C8849370M 3C8-84937-0 $8.61 1
(2-6) STEERING ROD JOINT 3C8849360M 3C8-84936-0 $10.12 1 Sold Out View More Details
(2-7) NYLON NUT 3/8 353849180M 353-84918-0 $7.05 1
(3) TIE-BAR KIT C 3A3849001M 3A3-84900-1 $0.00 1 Sold Out View More Details
(4) STEERING HOOK PLATE 3C8848300M 3C8-84830-0 $35.37 1 Sold Out View More Details
(5) STUD BOLT 9152030816M 915203-0816 $0.00 2 Sold Out View More Details
(6) NYLON NUT 8P-1.25 9304030800M 930446-0800 $2.13 2
(7) WASHER 9401130800M 940113-0800 $0.90 2 Sold Out View More Details
(8) CREVICE ASSY 3C8Q849600 3C8Q84960-0 $324.51 1
(8-1) COLLAR 9.6-13-20.5 3C8849620M 3C8-84962-0 $6.84 1
(8-2) WASHER 9.6-18-2 353849160M 353-84916-0 $1.56 2
(8-3) BOLT 3/8-43 3C8849630M 3C8-84963-0 $5.16 1
(8-4) NYLON NUT 3/8 353849180M 353-84918-0 $7.05 2
(8-5) BOLT 3/8-35 3C8849640M 3C8-84964-0 $19.67 1
(9) DRAG LINK SPACER 353849040M 353-84904-0 $71.44 1
Displaying 1 to 21 (of 21 products)
