11. ELECTRIC PARTS (ECU & DIAGRAM)

Click Here for Microfiche Usage Tip
(1) ECU 40(1) ECU 40(2) BOLT(2) BOLT(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(4) RUBBER MOUNT, 8.5-14-2.5(4) RUBBER MOUNT, 8.5-14-2.5(5) RUBBER MOUNT, 8.5-14-2.5(6) SPACER, 6.2-9-16.6(6) SPACER, 6.2-9-16.6(7) IGNITION COIL, #1(8) IGNITION COIL, #2 & # 3(8) IGNITION COIL, #2 & # 3(9) LEAD WIRE BAND, 158(9) LEAD WIRE BAND, 158(9) LEAD WIRE BAND, 158(10) BOLT(10) BOLT(10) BOLT(11) CLAMP, 6.5-87P(11) CLAMP, 6.5-87P(12) PLUG CAP(WITH RESISTANCE)(13) LEAD WIRE BAND, 104(14) CLAMP, 6.5-47.5P(15) RECTIFIER(16) BOLT(17) CORD ASSY "A"(17A) CORD ASSY "A"(18) FUSE HOLDER (PTT TYPE)(18A) FUSE HOLDER (PTT TYPE)(18-1) FUSE, 15A(18-1) FUSE, 15A(18-2) FUSE, 25A(18-3) FUSE, 30A(18-3) FUSE, 30A(19) FUSE HOLDER "B" (EFO TYPE)(19A) FUSE HOLDER "B" (EFO TYPE)(20) PTT SOLENOID SWITCH "A"(21) PTT SOLENOID SWITCH "B"(22) SOLENOID SWITCH BRACKET(23) STARTER SOLENOID(24) BOLT(25) WASHER, 6-16-1.5(26) RUBBER MOUNT, 9-12-2(26) RUBBER MOUNT, 9-12-2(27) SPACER, 6.2-9-10.7(28) TAPPING SCREW, 6-16(29) CLAMP, 6.5-87P(29) CLAMP, 6.5-87P(30) GROUND CABLE(31) TERMINAL CAP(31) TERMINAL CAP(31) TERMINAL CAP(32) WATER TEMPERATURE SENSOR(32) WATER TEMPERATURE SENSOR(32-1) O-RING, 2.0-10(32-1) O-RING, 1.9-9.8(33) FUSE HOLER BRACKET(34) CABLE TERMINAL PLUG(35) IGNITION COIL, #1(36) IGNITION COIL, #2 & # 3(37) BOLT(38) CLAMP, 6.5-47.5P(39) CLAMP, 6.5-87P(40) SPIRAL TUBE PROTECTOR(41) PLUG CAP (WITH RESISTANCE)(42) GROUND CABLE



Parts List

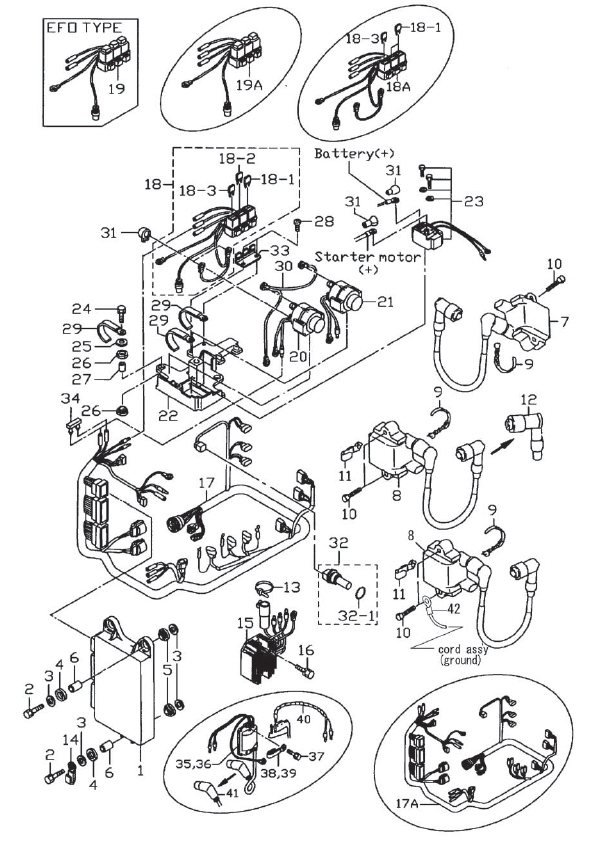

2006 :: 40 HP :: TLDI Tohatsu MD40B (AQ) :: ELECTRIC PARTS (ECU & DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ECU 40 3Z4064010M 3Z4-06401-0 LABEL 3Z403AA # 011601XC~ $0.00 1 Sold Out View More Details
(1) ECU 40 3T4064010M 3T4-06401-0 LABEL 3T402AC ~ 006249 $1,500.43 0
(2) BOLT 9101036630M 910103-6630 $1.30 3
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(6) SPACER 6.2-9-16.6 3T5671140M 3T5-67114-0 $1.22 3
(7) IGNITION COIL #1 3Z5064690M 3Z5-06469-0 # 011601XC~ $84.69 1
(8) IGNITION COIL #2 & # 3 3Z5064700M 3Z5-06470-0 # 011601XC~ $84.69 2
(9) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 3
(10) BOLT 9101037635M 910103-7635 $2.35 6
(11) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 $1.53 2
(12) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 3
(13) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(14) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(15) RECTIFIER 3Z5760600M 3Z5-76060-0 033649XD~ $114.50 1
(16) BOLT 9101035620M 910103-5620 OR 910113-5620 $1.30 2
(17) CORD ASSY A 3Z5761100M 3Z5-76110-0 011601XC~ $0.00 1 Sold Out View More Details
(17A) CORD ASSY A 3T5761100M 3T5-76110-0 ~006249XC $518.38 0
(18) FUSE HOLDER 3Y9760620M 3Y9-76062-0 011601XC~ $113.37 1 Sold Out View More Details
(18A) FUSE HOLDER (PTT TYPE) 3T9760620M 3T9-76062-0 ~006249XC $0.00 0 Sold Out View More Details
(18-1) FUSE 15A 3T5762460M 3T5-76246-0 $3.34 1
(18-2) FUSE 25A 3T5762480M 3T5-76248-0 011601 XG- $3.20 1
(18-3) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 1
(19) FUSE HOLDER B (EFO TYPE) 3Z5760660M 3Z5-76066-0 011601XC~ $0.00 1 Sold Out View More Details
(19A) FUSE HOLDER B (EFO TYPE) 3T5760660M 3T5-76066-0 ~006249XC $0.00 0 Sold Out View More Details
(20) SOLENOID SWITCH A PTT 3C8725800M 3C8-72580-0 UP FOR PTT TYPE $42.82 1
(21) SOLENOID SWITCH B PTT 3C8725810M 3C8-72581-0 DN FOR PTT TYPE $42.82 1
(22) SOLENOID SWITCH BRACKET 3T5725850M 3T5-72585-0 $0.00 1 Sold Out View More Details
(23) STARTER SOLENOID 3H8760400M 3H8-76040-0 $67.57 1
(24) BOLT 9101036625M 910103-6625 $1.01 3
(25) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(26) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 6
(27) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.75 3
(28) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.27 2
(29) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 $1.53 4
(30) GROUND CABLE 3T5761420M 3T5-76142-0 FOR PTT TYPE $8.60 1
(31) CAP CORD 3A3761450M 3A3-76145-0 FOR PTT TYPE $3.39 4
(32) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 011601XC~ $26.18 1
(32) WATER TEMPERATURE SENSOR 3T4725140M 3T4-72514-0 ~006249XC $0.00 0 Sold Out View More Details
(32-1) O-RING 2-10 3G9661360M 3G9-66136-0 011601XC~ $1.59 1
(32-1) O-RING 1.9-9.8 3T5725090M 3T5-72509-0 ~006249XC $1.93 0
(33) FUSE HOLDER BRACKET 3T9760640M 3T9-76064-0 $0.00 1 Sold Out View More Details
(34) CABLE TERMINAL PLUG 353760370M 353-76037-0 $2.53 1
(35) IGNITION COIL #1 3T5061710M 3T5061710M ~006249XC $0.00 0 Sold Out View More Details
(36) IGNITION COIL 3T5061731M 3T5-06173-1 ~006249XC $0.00 0 Sold Out View More Details
(37) BOLT 9101036625M 910103-6625 ~006249XC $1.01 0
(38) CLAMP 6.5-47.5P 309069720M 309-06972-0 IGNITION COIL # 1 & 3 ~006249XC $2.07 0
(39) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 IGNITION COIL # 2 ~ 006249XC $1.53 0
(40) SPIRAL TUBE PROTECTOR 3B7636080 3B7-63608-0 IGNITION COIL # 1 ~006249XC $0.00 0 Sold Out View More Details
(41) PLUG CAP 3T5069210M 3T5-06921-0 ~006249XC $22.91 0
(42) GROUND CABLE 3Y9761420M 3Y9-76142-0 L=400 $4.84 1 Sold Out View More Details
