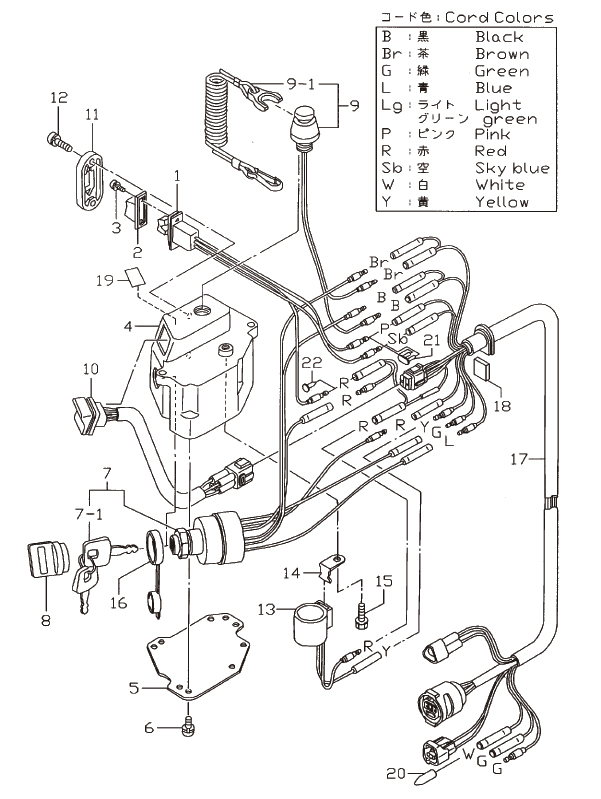

9. SWITCH BOX (F TYPE)

Click Here for Microfiche Usage Tip
(1) PTT SWITCH(2) PTT SWITCH COVER(3) SCREW(4) SWITCH BOX(5) SWITCH BOX COVER(6) SCREW(7) MAIN SWITCH(7-1) MAIN SWITCH KEY (NO. 301)(7-1) MAIN SWITCH KEY (NO. 302)(7-1) MAIN SWITCH KEY (NO. 303)(8) MAIN SWITCH KEY COVER(9) LANYARD STOP SWITCH(9-1) STOP SWITCH LANYARD(10) WARNING LAMP(11) PTT SWITCH COVER(11) PTT SWITCH COVER "B"(12) SCREW(13) OVER HEAT BUZZER(14) OVER-HEAT BUZZER STAY(15) BOLT(16) MAIN SWITCH CAP(17) CORD ASSY "C"(18) SWITCH BOX GROMMET(19) WARNING DECAL(20) CABLE TERMINAL PLUG(21) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG



Parts List
2006 :: 40 HP :: TLDI Tohatsu MD40B (AQ) :: SWITCH BOX (F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PTT SWITCH 3T5725700M 3T5-72570-0 FOR PTT TYPE $52.53 1
(2) PTT SWITCH COVER 353725910M 353-72591-0 FOR PTT TYPE $5.55 1
(3) SCREW 9215035206M 921503-5206 FOR PTT TYPE $0.46 2
(4) SWITCH BOX 3T5Q760320 3T5Q76032-0 $73.60 1
(5) SWITCH BOX COVER 3T5762300M 3T5-76230-0 $16.79 1
(6) SCREW 9215035510M 921503-5510 $0.42 4
(7) MAIN SWITCH 385760201M 385-76020-1 $56.65 1
(7-1) MAIN SWITCH KEY (NO. 301) 353762031M 3F3-76217-0 $17.62 1
(7-1) MAIN SWITCH KEY (NO. 302) 353762032M 3F3-76218-0 $17.62 1
(7-1) MAIN SWITCH KEY (NO. 303) 353762033M 3F3-76219-0 $17.62 1
(8) MAIN SWITCH KEY COVER 385762050M 385762050M $0.00 2 Sold Out View More Details
(9) LANYARD STOP SWITCH 3T5068300M 3T5-06830-0 $35.10 1
(9-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(10) WARNING LAMP 3T5710400M 3T5-71040-0 $76.32 1
(11) PTT SWITCH COVER 3T5726180M 3T5-72618-0 FOR PTT TYPE $3.51 1
(11) PTT SWITCH COVER B 3T5726110M 3T5-72611-0 FOR EFO TYPE $3.51 1
(12) SCREW 9215035512M 921503-5512 $0.83 2
(13) OVER-HEAT BUZZER 3C8761710M 3C8-76171-0 $34.51 1
(14) OVER-HEAT BUZZER STAY 3T5761740M 3T5-76174-0 $0.00 1 Sold Out View More Details
(15) BOLT 9101036612M 910103-6612 $1.16 1
(16) MAIN SWITCH CAP 3T5760220M 3T5-76022-0 $5.23 1
(17) CORD ASSY C 3T5761190M 3T5-76119-0 L=1000 $254.56 1 Sold Out View More Details
(18) SWITCH BOX GROMMET 3B7760350M 3B7-76035-0 $0.00 1 Sold Out View More Details
(19) WARNING DECAL 3T5721980M 3T5-72198-0 $0.00 1 Sold Out View More Details
(20) CABLE TERMINAL PLUG 3T5760370M 3A3-76037-0 $1.50 1
(21) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR EFO TYPE $2.53 1
(22) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EFO TYPE $1.50 1
