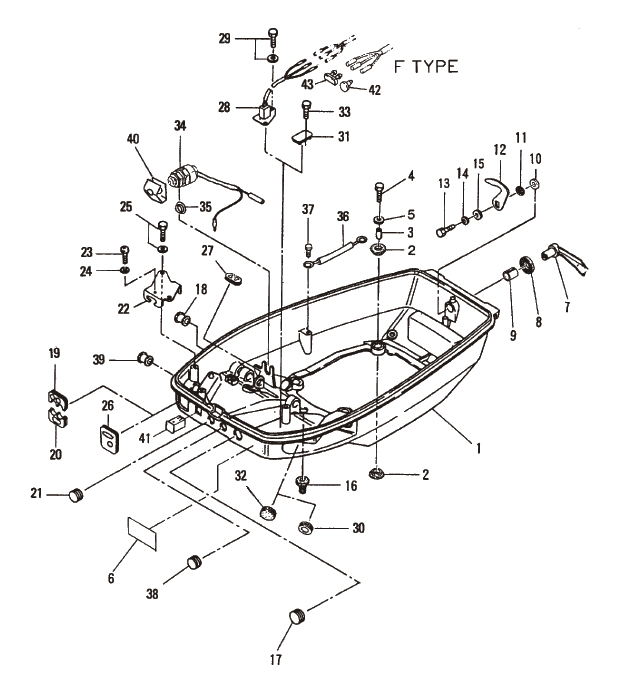

23. BOTTOM COWL (MOTOR COVER LOWER)

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) RUBBER MOUNT, 8.5-14-2.5(2) RUBBER MOUNT, 8.5-14-2.5(3) SPACER, 6.2-9-15.7(4) BOLT(5) WASHER, 6.5-21-1(6) PTT SWITCH DECAL(7) HOOK LEVER(8) HOOK LEVER SEAL RING(9) HOOK LEVER BUSHING(10) WASHER, 14-22-1(11) WAVE WASHER, D=14(12) COVER HOOK(13) BOLT(14) SPRING WASHER(15) WASHER, 6-16-1.5(16) GROMMET, 17-3(17) MAIN SWITCH GROMMET(18) PLUG(19) REMOTE CONTROL CABLE GROMMET(20) CORD GROMMET(21) GROMMET, 17-2.7(22) REMOTE CONTROL CABLE BRACKET(23) SCREW, 4-20 P0.5(24) SPRING WASHER(25) BOLT(26) BATTERY CABLE GROMMET(27) THROTTLE CABLE GROMMET(27) THROTTLE HOLE GROMMET(28) PTT SWITCH "B"(29) BOLT(30) GROMMET, 18-2.5(31) GROMMET(32) GROMMET, 17-2.7(33) BOLT(34) NEUTRAL SWITCH(35) WASHER, 12.5-24-1(36) GROUND CABLE(37) BOLT(38) GROMMET, 17-2.7(39) GROMMET(40) NEUTRAL SWITCH ACTUATOR(41) PLUG(42) CABLE TERMINAL PLUG(43) CABLE TERMINAL PLUG



Parts List
2006 :: 40 HP :: TLDI Nissan NSD40B (AQ) :: BOTTOM COWL (MOTOR COVER LOWER)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3C8Q671000 3C8Q67100-0 MOTOR COVER (LOWER) $0.00 1 Sold Out View More Details
(2) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(3) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 4
(4) BOLT 9101130630M 910113-0630 $1.21 4
(5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(6) PTT SWITCH DECAL 3T5720570M 3T5-72057-0 FOR P TYPE $0.00 1 Sold Out View More Details
(7) HOOK LEVER 3C8Q671410 3C8Q67141-0 $18.98 1 Sold Out View More Details
(8) SEAL RING 338671470M 338-67147-0 $1.85 1
(9) BUSHING 369671050M 369-67105-0 $2.07 1
(10) WASHER 14-22-1 3C8671460M 3C8-67146-0 $1.47 1
(11) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(12) COVER HOOK 3C8671421M 3C8-67142-1 $13.69 1
(13) BOLT 9101140612M 910114-0612 $0.84 1
(14) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(15) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(16) GROMMET 17 - 3 345662260M 345-66226-0 $3.91 1 Sold Out View More Details
(17) MAIN SWITCH GROMMET 345760920M 345-76092-0 $4.38 1
(18) PLUG 3B7010460M 3B7-01046-0 $1.41 1
(19) REMOTE CONTROL CABLE GROMMET 3C8837320M 3C8-83732-0 FOR P TYPE $2.07 1
(20) CORD GROMMET 3C8761161M 3C8-76116-1 FOR P TYPE $2.13 1
(21) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(22) REMOTE CONTROL CABLE BRACKET 3C8838200M 3C8-83820-0 FOR P TYPE $11.48 1
(23) SCREW 4-20 P0.5 3C8838210M 3C8-83821-0 FOR P TYPE $2.33 1
(24) SPRING WASHER 9413030400M 941303-0400 FOR P TYPE $0.90 1
(25) BOLT 9101135616M 910113-5616 FOR P TYPE $1.15 2
(26) BATTERY CABLE GROMMET 3T5671620M 3T5-67162-0 FOR F TYPE $6.84 1
(27) THROTTLE CABLE GROMMET 3C8636210M 3C8-63621-0 FOR F TYPE $3.39 1
(27) THROTTLE HOLE GROMMET 3C8636240M 3C8-63624-0 FOR P TYPE $3.39 1
(28) PTT SWITCH B 3T5726130M 3T5-72613-0 FOR P TYPE $64.12 1
(29) BOLT 9101135612M 910113-5612 FOR P TYPE $1.07 2
(30) GROMMET 18-2.5 338671630M 338-67163-0 $2.07 1
(31) GROMMET 3C8726190M 3C8-72619-0 FOR F TYPE $0.00 1 Sold Out View More Details
(32) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(33) BOLT 9101130610M 910113-0610 FOR F TYPE $0.76 2
(34) NEUTRAL SWITCH 398760800M 398-76080-0 FOR F TYPE $41.45 1
(35) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 FOR F TYPE $2.31 1
(36) GROUND CABLE 3N4761420M 3N4-76142-0 L=270 $4.78 1 Sold Out View More Details
(37) BOLT 9101036612M 910103-6612 $1.16 2
(38) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(39) GROMMET 3B2671870M 3B2-67187-0 FOR P TYPE $3.27 1
(40) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR F TYPE $4.02 1
(41) PLUG 3T5671500M 3T5-67150-0 $1.41 1
(42) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR F TYPE $1.50 1
(43) CABLE TERMINAL PLUG 353760370M 353-76037-0 $2.53 1
