16. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip
(1) GEAR CASE(1) GEAR CASE (WITH SUB WATER PIPE)(1-1) NEEDLE BEARING, 22-30-30(2) BOLT(3) OIL PLUG(3) OIL PLUG(4) GASKET, 8.1-15-1(4) GASKET, 8.1-15-1(5) WATER STRAINER SET(5) WATER STRAINER SET(5-1) SCREW(5-2) NYLON NUT, 4-P0.7(6) SUB WATER STRAINER(7) BOLT(8) WATER PLUG(9) GASKET, 10.1-15-1(10) DRIVE SHAFT "S"(10) DRIVE SHAFT "L"(10) DRIVE SHAFT "LL"(10) DRIVE SHAFT "UL"(11) BEARING, 6304(11) BEARING, 6304(12) DRIVE SHAFT SPRING(13) BEVEL GEAR "B"(14) BEVEL GEAR "B" NUT(15) SHIM, 41-51.5-0.1(15) SHIM, 41-51.5-0.15(15) SHIM, 41-51.5-0.3(15) SHIM, 41-51.5-0.5(16) WATER PUMP IMPELLER(17) WATER PUMP IMPELLER KEY(18) PUMP CASE (UPPER)(19) PUMP CASE LINER(20) PUMP CASE GASKET(21) WATER PUMP GUIDE PLATE(22) GUIDE PLATE GASKET(23) PUMP CASE (LOWER)(24) DOWEL PIN, 4-10(24) DOWEL PIN, 4-10(25) OIL SEAL, 17--33-6(25) OIL SEAL, 17--33-6(26) SHIM, 32.9-26-0.5(27) O-RING, 3.2-47(28) BOLT(29) WATER PIPE SEAL (LOWER)(30) WATER PIPE "S"(30) WATER PIPE "L"(30) WATER PIPE "LL"(30) WATER PIPE "UL"(31) WATER PIPE SEAL (UPPER)(32) COLLAR, 18-20-4.5(33) WATER PIPE AUXILIARY MOUNT(34) CLUTCH CAM(35) SPRING PIN, 3-12(35) SPRING PIN, 3-12(36) CAM ROD "S"(36) CAM ROD "L"(36) CAM ROD "LL"(36) CAM ROD "UL"(37) CAM ROD BUSHING(38) O-RING, 2.4-5.8(39) O-RING, 3.5-21.7(40) STOPPER(41) BOLT(42) SHIFT ROD JOINT(43) SPRING PIN, 3-12



Parts List

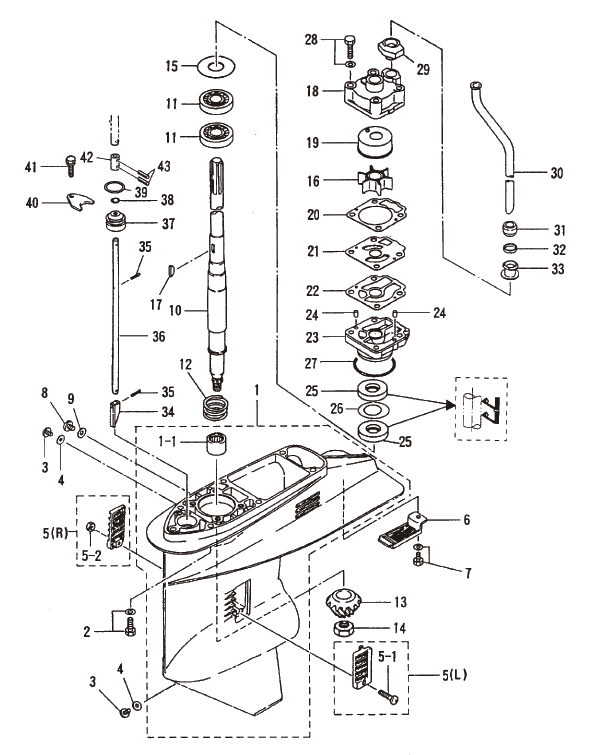

2006 :: 40 HP :: TLDI Nissan NSD40B (AQ) :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3C8Q600000 3C8Q60000-0 FOR TRANSOM S L&LL $353.61 1
(1) GEAR CASE WITH SUB WATER PIPE 3C8Q600900 3C8Q60090-0 FOR TRANSOMUL $432.84 1
(1-1) NEEDLE BEARING 22-30-30 345602110M 345-60211-0 $33.06 1 Sold Out View More Details
(2) BOLT 9101135835M 910113-5835 $3.28 6
(3) WATER PLUG 332600052M 332-60005-2 $5.07 2
(4) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(5) WATER STRAINER SET 3C8602351M 3C8-60235-1 $7.50 1
(5-1) SCREW 9215030438M 921503-0438 $0.72 1
(5-2) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.68 1
(6) SUB WATER STRAINER 3C8602040M 3C8-60204-0 $7.08 1
(7) BOLT 9101135616M 910113-5616 $1.15 1
(8) WATER PLUG 3B7600151M 3B7-60015-1 $5.29 1
(9) GASKET 10.1-15-1 3B7600161M 3B7-60016-0 $2.31 1
(10) DRIVE SHAFT S 3C8643010M 3C8-64301-0 FOR TRANSOM S $294.49 1
(10) DRIVE SHAFT L 3C8643020M 3C8-64302-0 FOR TRANSOM L $301.47 1
(10) DRIVE SHAFT LL 3C8643040M 3C8-64304-0 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(10) DRIVE SHAFT UL 3C8643030M 3C8-64303-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(11) BEARING 6304 3C8602130M 3C8-60213-0 $14.95 2
(12) DRIVE SHAFT SPRING 3C8643270M 3C8-64327-0 $2.62 1
(13) BEVEL GEAR B 3C8640202M 3C8-64020-2 #038130XC~ $55.07 1
(14) BEVEL GEAR B NUT 3C8640270M 3C8-64027-0 $8.80 1
(15) SHIM 41-51.5-0.1 345640810M 345-64081-0 $1.84 0
(15) SHIM 41-51.5-0.15 345640820M 345-64082-0 $0.00 0 Sold Out View More Details
(15) SHIM 41-51.5-0.3 345640830M 345-64083-0 $1.84 0
(15) SHIM 41-51.5-0.5 345640840M 345-64084-0 $1.84 0
(16) WATER PUMP IMPELLER 3C8650212M 3C8-65021-2 $12.88 1
(17) KEY PUMP IMPELLER 332650220M 332-65022-0 $6.47 1
(18) PUMP CASE (UPPER) 3T5650160M 3C8-65016-1 $30.53 1
(19) PUMP CASE LINER 3T5650110M 3T5-65011-0 $8.66 1
(20) PUMP CASE GASKET 3T5650180M 3T5650180M $3.51 1
(21) WATER PUMP GUIDE PLATE 3C8650250M 3C8-65025-0 $3.18 1
(22) GUIDE PLATE GASKET 3C8650291M 3C8-65029-1 $5.87 1
(23) PUMP CASE (LOWER) 3C8650171M 3C8-65017-1 $44.07 1
(24) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(25) OIL SEAL 17-33-6 3C8602230M 3C8-60223-0 $7.34 2
(26) SHIM 32.9-26-0.5 3C8640840M 3C8-64084-0 $2.12 1
(27) O-RING 3.2-47 345650150M 345-65015-0 $1.50 1
(28) BOLT 9101135855M 910113-5855 $3.18 4
(29) WATER PIPE SEAL (LOWER) 3C8650140M 3C8-65014-0 $2.76 1
(30) WATER PIPE S 3C8651000M 3C8-65100-0 FOR TRANSOM S $17.77 1
(30) WATER PIPE L 3C8651100M 3C8-65110-0 FOR TRANSOM L $20.96 1
(30) WATER PIPE LL 3C8651300M 3C8-65130-0 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(30) WATER PIPE UL 3C8651200M 3C8-65120-0 FOR TRANSOM UL $23.01 1
(31) WATER PIPE SEAL (UPPER) 345652060M 345-65206-0 $2.10 1
(32) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
(33) WATER PIPE AUXILIARY MOUNT 346652040M 346-65204-0 WATER PIPE LOCKING RUBBER $2.31 1 Sold Out View More Details
(34) CLUTCH CAM 3C8660110M 3C8-66011-0 $32.23 1
(35) SPRING PN 3-12 9514070312M 951407-0312 $0.86 2
(36) CAM ROD S 3C8660120M 3C8-66012-0 FOR TRANSOM S $19.33 1
(36) CAM ROD L 3C8660130M 3C8-66013-0 FOR TRANSOM L $29.26 1
(36) CAM ROD LL 3C8660150M 3C8-66015-0 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(36) CAM ROD UL 3C8660140M 3C8-66014-0 FOR TRANSOM UL $22.78 1
(37) CAM ROD BUSHING 3C8660311M 3C8-66031-1 $21.14 1
(38) O-RING 2.4 - 5.8 332660210M 332-66021-0 $1.41 1
(39) O-RING 3.5 - 21.7 3C8660320M 3C8-66032-0 $2.07 1
(40) STOPPER 353660240M 353-66024-0 $4.40 1
(41) BOLT 9101036612M 910103-6612 $1.16 1
(42) SHIFT ROD JOINT 3C8662410M 3C8-66241-0 $5.55 1
(43) SPRING PIN 3-12 9514030312M 951403-0312 $0.83 2
