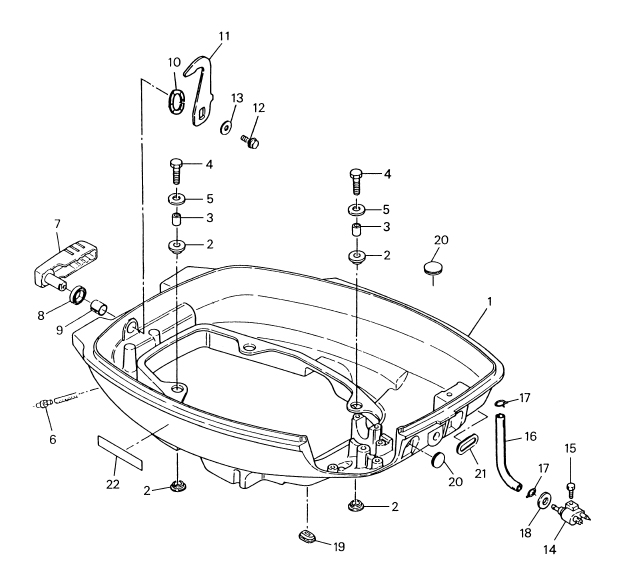

20. BOTTOM COWL (MOTOR COVER LOWER)

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) RUBBER MOUNT 8.5-14-2.5(2) RUBBER MOUNT 8.5-14-2.5(2) RUBBER MOUNT 8.5-14-2.5(2) RUBBER MOUNT 8.5-14-2.5(3) SPACER 6.2-9-15.7(3) SPACER 6.2-9-15.7(4) BOLT(4) BOLT(5) WASHER 6.5-21-1(5) WASHER 6.5-21-1(6) WATER NIPPLE(7) HOOK LEVER(8) HOOK LEVER SEAL RING(9) BUSHING 14-16.5-17.7(10) WAVE WASHER D=14(11) COVER HOOK(12) BOLT(13) WASHER 6-16-1.5(14) FUEL CONNECTOR (ENGINE,MALE)(15) BOLT(16) RUBBER HOSE(17) CLIP o 10(17) CLIP o 10(18) FUEL CONNECTOR GROMMET(19) GROMMET(20) GROMMET 17-2.7(20) GROMMET 17-2.7(21) BATTERY CABLE GROMMET(22) STORAGE DECAL



Parts List
2006 :: 18 HP :: 4 Stroke Tohatsu MFS18B2 :: BOTTOM COWL (MOTOR COVER LOWER)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3R3Q671000 3R3Q67100-0 MOTOR COVER (LOWER) $0.00 1 Sold Out View More Details
(2) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(3) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 4
(4) BOLT 9101130630M 910113-0630 $1.21 4
(5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(6) WATER NIPPLE 353011380M 353-01138-0 $2.21 1
(7) HOOK LEVER 3R3Q671410 3R3Q67141-0 $15.25 1
(8) SEAL RING 338671470M 338-67147-0 $1.85 1
(9) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.66 1
(10) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(11) COVER HOOK 3R3671420M 3R3-67142-0 $7.05 1
(12) BOLT 9101036512M 9101036512M $0.90 1
(13) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(14) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(15) BOLT 9101135625M 910113-5625 $1.47 1
(16) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(17) CLIP ø10 338022150M 338-02215-0 $1.41 2
(18) FUEL CONNECTOR GROMMET 3R3670820M 3R3-67082-0 $1.71 1
(19) GROMMET THROTTLE HOLE 3B2636240M 3B2-63624-0 2 FOR EP $3.27 1
(20) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(21) BATTERY CABLE GROMMET 3R3671620M 3R3-67162-0 $1.98 1
(22) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
