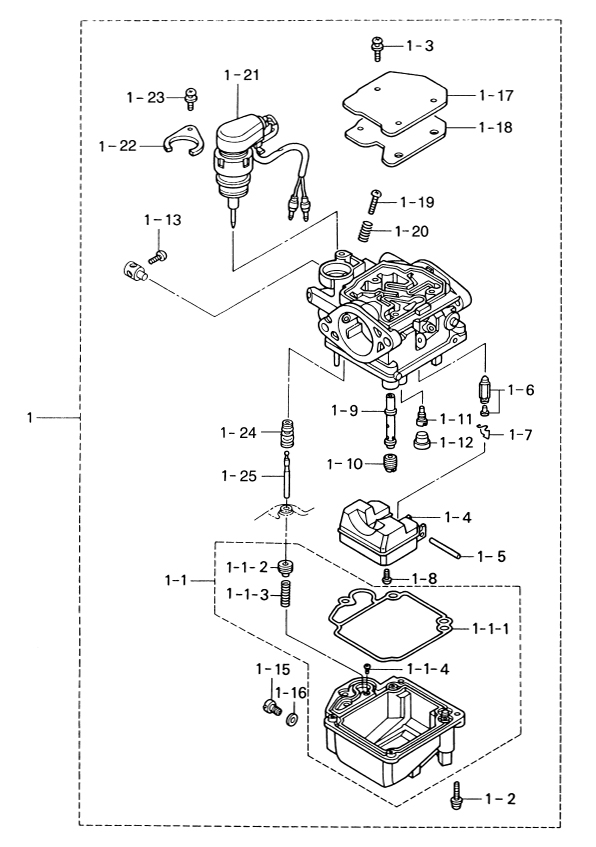

5. CARBURETOR

Click Here for Microfiche Usage Tip
(1) CARBURETOR(1) CARBURETOR(1) CARBURETOR (FOR EU)(1-1) FLOAT CHAMBER(1-1-1) FLOAT CHAMBER O-RING(1-1-2) PLUNGER COMP(1-1-3) COIL SPRING(1-1-4) SCREW(1-2) SCREW(1-3) SCREW(1-4) FLOAT(1-5) FLOAT ARM PIN(1-6) FLOAT VALVE(1-7) CLIP(1-8) SCREW(1-9) MAIN NOZZLE(1-10) MAIN JET #108(1-11) SLOW JET # 58(1-12) RUBBER CAP(1-13) SCREW(1-15) DRAIN SCREW(1-16) GASKET(1-17) CARBURETOR COVER(1-18) CARBURETOR COVER GASKET(1-19) STOP SCREW(1-20) SPRING A(1-21) AUTO BY STARTER(1-22) HOLDER(1-23) SCREW(1-24) RUBBER BOOT(1-25) LINK ROD



Parts List
2006 :: 18 HP :: 4 Stroke Nissan NSF18B2 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3V9035002M 3V9-03500-2 3V9B 18B2#01549~ $236.03 1
(1) CARBURETOR 3V9035000M 3V9-03500-0 3V9A 18B#00001~#01548 $236.03 0
(1) CARBURETOR (FOR EU) 3DU035000 3DU-03500-0 FOR EU (EUROPE) (3DUA) USE WITH (3DU-07010-0) $0.00 1 Sold Out View More Details
(1-1) FLOAT CHAMBER 3V9032200M 3V9-03220-0 15B#10001~#12010 / OLD PART # 3R3-03221-0 $0.00 1 Sold Out View More Details
(1-1-1) O-RING FLOAT CHAMBER 3R3032220M 3R3-03222-0 $9.73 1
(1-1-2) PLUNGER COMP 3V9033150M 3V9-03315-0 H-9.6 15B#10001~#12010 / OLD PART #3R3-03315-0 $23.42 1
(1-1-3) COIL SPRING 3R3033140M 3R3-03314-0 $3.60 1
(1-1-4) SCREW 3R3033160M 3R3-03316-0 $1.55 1
(1-2) SCREW 9225036414M 922503-6414 $1.36 4
(1-3) SCREW 369031860M 369-03186-0 $1.55 3
(1-4) FLOAT 3R3032310M 3R3-03231-0 $28.78 1
(1-5) ARM PIN FLOAT 3F3032320M 3F3-03232-0 $2.35 1
(1-6) FLOAT VALVE 3R3032390M 3R3-03239-0 WITH VALVE PIN $12.45 1
(1-7) CLIP 344032440M 344-03244-0 $3.75 1
(1-8) SCREW 3R3032340M 3R3-03234-0 $1.20 1
(1-9) MAIN NOZZLE 3R3032520M 3R3-03252-0 $14.58 1
(1-10) MAIN JET #108 3V9032510M 3V9-03251-0 $6.56 1
(1-11) SLOW JET # 58 3V9032550M 3V9-03255-0 $8.95 1
(1-12) RUBBER CAP 346032560M 346-03256-0 $2.40 1
(1-13) SCREW 3R3031800M 3R3-03180-0 $0.00 1 Sold Out View More Details
(1-15) DRAIN SCREW 3R3032920M 3R3-03292-0 $0.00 1 Sold Out View More Details
(1-16) GASKET 3R3032930M 3R3-03293-0 $1.44 1 Sold Out View More Details
(1-17) CARBURETOR COVER 3R3031810M 3R3-03181-0 $9.89 1
(1-18) GASKET CARBURETOR COVER 3R3031820M 3R3-03182-0 $8.89 1
(1-19) STOP SCREW 346032650M 346-03265-0 $4.86 1
(1-20) SPRING 3R3032670M 3R3-03267-0 $1.13 1
(1-21) AUTO BY STARTER 3R3034100M 3R3-03410-0 WITH O-RING $0.00 1 Sold Out View More Details
(1-22) HOLDER 3R3034110M 3R3-03411-0 $6.28 1
(1-23) SCREW 369031860M 369-03186-0 $1.55 1
(1-24) RUBBER BOOT 3R3033111M 3R3-03311-1 #043679XD~ $6.28 1
(1-25) LINK ROD 3R3033120M 3R3-03312-0 $14.63 1
