4. INTAKE MANIFOLD & FUEL PUMP

Click Here for Microfiche Usage Tip

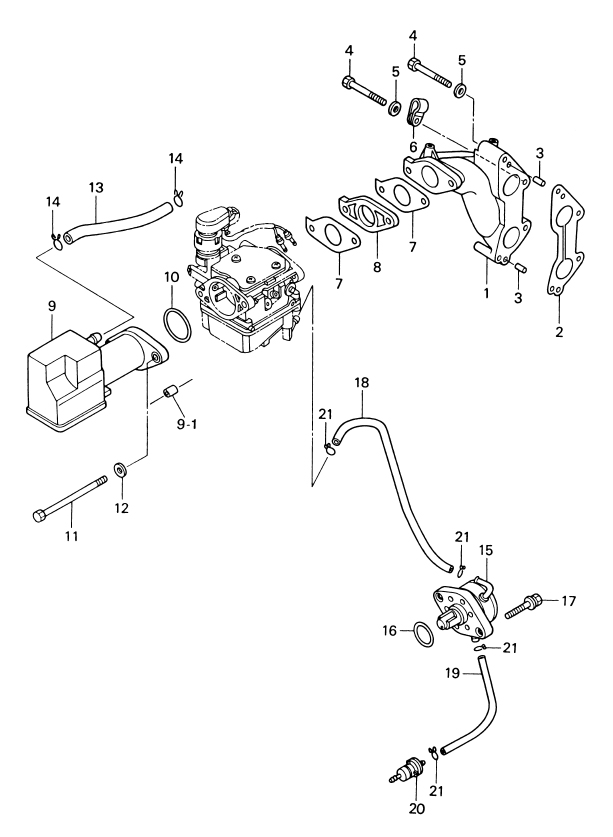

(1) INTAKE MANIFOLD(2) INTAKE MANIFOLD GASKET(3) DOWEL PIN 6-12(3) DOWEL PIN 6-12(4) BOLT(4) BOLT(5) WASHER(5) WASHER(6) CLAMP 6.5-14L(7) CARBURETOR GASKET(7) CARBURETOR GASKET(8) INSULATOR(9) INTAKE SILENCER(9-1) COLLAR 6.2-9-7.4(10) O-RING 1.9-38.8(11) BOLT 6-100(12) WASHER(13) RUBBER HOSE(14) CLIP o 12(14) CLIP o 12(15) FUEL PUMP(16) O-RING 3.5-25.7(17) BOLT(18) RUBBER HOSE(19) RUBBER HOSE(20) FUEL FILTER(21) CLIP o 10(21) CLIP o 10(21) CLIP o 10(21) CLIP o 10



Parts List
2006 :: 15 HP :: 4 Stroke Tohatsu MFS15B2 :: INTAKE MANIFOLD & FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD 3R3020101M 3R3-02010-1 18B#01285~ 15B#11840~ 9.9B#11775~ $0.00 1 Sold Out View More Details
(2) INTAKE MANIFOLD GASKET 3R3021041M 3R3-02104-1 18B#01285~ 15B#11840~ 9.9B#11775~ $4.19 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(4) BOLT 9161140645M 916114-0645 $2.21 4
(5) WASHER 9401130600M 940113-0600 $0.83 4
(6) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(7) CARBURETOR GASKET 3R0020110M 3R0-02011-0 $1.82 2
(8) INSULATOR 3R0039520M 3R0-03952-0 $2.01 1
(9) INTAKE SILENCER 3H8024100M 3H8-02410-0 WITH COLLARS $15.48 1
(9-1) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 0 Sold Out View More Details
(10) O-RING 1.9 - 38.8 3F3020120M 3F3-02012-0 $4.33 1
(11) BOLT 6 -100 3R0032150M 916113-0695 $6.22 2 Sold Out View More Details
(12) WASHER 9401130600M 940113-0600 $0.83 2
(13) RUBBER HOSE 98AB71000M 98AB71000M FOR BREATHER $13.44 1
(14) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(15) FUEL PUMP 3H8040001M 3H8-04000-1 $67.56 1
(16) O-RING 3.5 - 25.7 345624150M 345-62415-0 $1.10 1 Sold Out View More Details
(17) BOLT 9101135625M 910113-5625 OR 910103-5625 $1.47 2
(18) RUBBER HOSE 98AB50260M 98AB-5-0260 $11.41 1
(19) RUBBER HOSE 98AB50150M 98AB-5-0150 $11.41 1
(20) FUEL FILTER 369022300M 369-02230-0 $12.14 1
(21) CLIP ø10 338022150M 338-02215-0 $1.41 4
