1. CYLINDER HEAD

Click Here for Microfiche Usage Tip

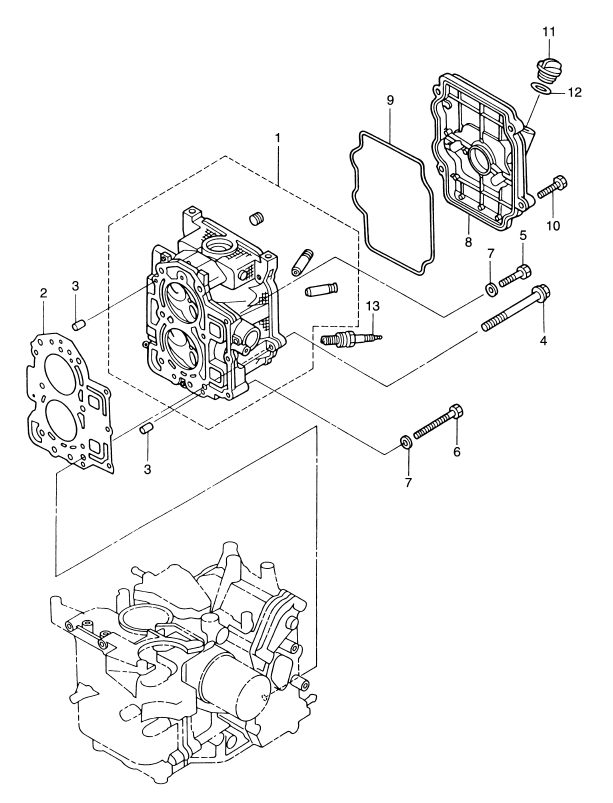

(1) CYLINDER HEAD(1) CYLINDER HEAD(2) CYLINDER HEAD GASKET(3) DOWEL PIN 6-12(3) DOWEL PIN 6-12(4) CYLINDER HEAD BOLT(5) BOLT(6) BOLT(7) WASHER(7) WASHER(8) CYLINDER HEAD COVER(9) CYLINDER HEAD COVER GASKET(10) BOLT(11) ENGINE OIL FILLER CAP(12) O-RING(13) SPARK PLUG



Parts List
2006 :: 15 HP :: 4 Stroke Tohatsu MFS15B2 :: CYLINDER HEAD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER HEAD 3H8B010011 3H8B01001-1 15B#11421~ 9.9B#11288~ $0.00 1 Sold Out View More Details
(1) CYLINDER HEAD 3H8B010010 3H8B01001-0 15B ~#11420 9.9B~#11287 $0.00 0 Sold Out View More Details
(2) CYLINDER HEAD GASKET 3H8010050M 3H8-01005-0 $18.12 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(4) BOLT CYLINDER HEAD 8 - 60 3H8010130M 3H8-01013-0 8-60 $2.13 6
(5) BOLT 9161140625M 916114-0625 $0.00 2 Sold Out View More Details
(6) BOLT 9161190640M 916119-0640 $1.59 1
(7) WASHER 9401130600M 940113-0600 $0.83 3
(8) CYLINDER HEAD COVER 3H8B010210 3H8B01021-0 $98.15 1
(9) CYLINDER HEAD COVER GASKET 3H8010240M 3H8-01024-0 RUBBER $9.14 1
(10) BOLT 9101145630M 910114-5630 $1.21 4
(11) ENGINE OIL FILLER CAP 3R0710150M 3R0-71015-0 $3.31 1
(12) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(13) SPARK PLUG 970111103M 9701-1-1103 NGK: DCPR6E $6.50 2
