22. FUEL TANK

Click Here for Microfiche Usage Tip

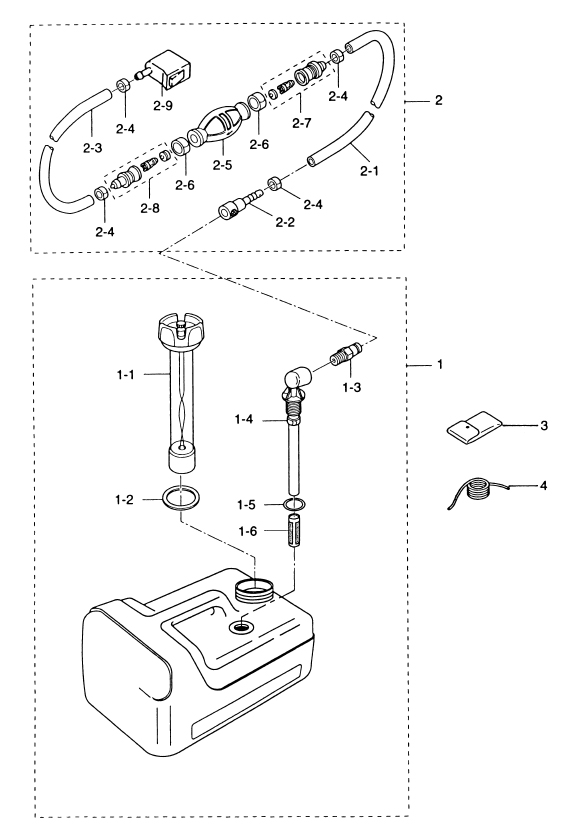

(1) FUEL TANK(1) FUEL TANK(1-1) FUEL GAUGE VENTED CAP(1-2) TANK CAP GASKET(1-3) MALE QUICK CONNECTOR(1-4) ELBOW TUBING AND CLAMP ASSY(1-5) O-RING(1-6) FILTER(2) PRIMER BULB ASSY(2-1) RUBBER HOSE(2-2) FUEL CONNECTOR (TANK SIDE, FEMALE)(2-3) RUBBER HOSE(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-5) PRIMER BULB(2-6) CLAMP(2-6) CLAMP(2-7) JOINT ASSY (INLET)(2-8) JOINT ASSY (OUTLET)(2-9) FUEL CONNECTOR (ENGINE SIDE, FEMALE)(3) TOOL(4) ROPE



Parts List
2006 :: 15 HP :: 4 Stroke Nissan NSF15B2 :: FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK (12L PLASTIC) 3B2701670M 3B2-70167-0 TOHATSU $87.32 1
(1) FUEL TANK (12L PLASTIC) 99998FT12M 99998FT12M NISSAN $87.32 1
(1-1) FUEL GAUGE VENTED CAP 3B2700500M 3B2-70050-0 $0.00 1 Sold Out View More Details
(1-2) TANK CAP GASKET 3C7700210M 3C7-70021-0 $0.00 1 Sold Out View More Details
(1-3) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 $9.71 1
(1-4) ELBOW TUBING AND CLAMP ASSY 3B2701550M 3B2-70155-0 $11.97 1
(1-5) O-RING 3C7701990M 3C7-70199-0 $1.24 1
(1-6) FILTER 3C7701130M 3C7-70113-0 $3.20 1
(2) PRIMER BULB ASSY 3H6702000M 3H6-70200-0 $122.59 1
(2-1) RUBBER HOSE 98AB71600M 98AB-7-1600 $13.44 1
(2-2) FUEL CONNECTOR (TANK SIDE FEMALE) 3B2702810M 3B2-70281-0 $21.33 1
(2-3) RUBBER HOSE 98AB70700M 98AB-7-0700 $13.44 1
(2-4) CLAMP 332702010M 332-70201-0 $2.07 4
(2-5) PRIMER BULB 3C7702110M 3C7-70211-0 $22.31 1
(2-6) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(2-7) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(2-8) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(2-9) FUEL CONNECTOR (ENGINE SIDE FEMALE) 394702500M 394-70250-0 $11.78 1
(3) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(4) ROPE 3B7722010M 3B7-72201-0 ø 6-1600 $5.07 1
