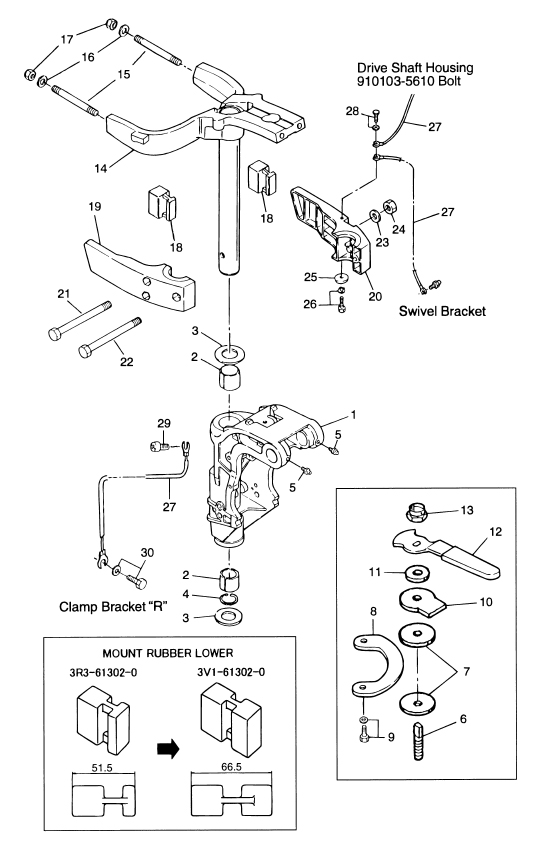

18. SWIVEL BRACKET

Click Here for Microfiche Usage Tip
(1) SWIVEL BRACKET(1) SWIVEL BRACKET(2) BUSHING 28-31-35(2) BUSHING 28-31-35(3) THRUST PLATE 28.5-18-1(3) THRUST PLATE 28.5-18-1(4) O-RING 3.5-25.7(5) GREASE FITTING(5) GREASE FITTING(6) CO-PILOT BOLT(7) CO-PILOT DISK(8) CO-PILOT PLATE(9) BOLT(10) CO-PILOT WASHER(11) WASHER 8.1-20-0.8(12) CO-PILOT HANDLE(13) NYLON NUT (2T) M8-P1 .25(14) STEERING SHAFT(15) STUD BOLT 10-95(16) WASHER(17) NYLON NUT(18) RUBBER MOUNT (LOWER)(18) RUBBER MOUNT (LOWER)(18) RUBBER MOUNT (LOWER)(18) RUBBER MOUNT (LOWER)(19) MOUNT BRACKET (RIGHT)(19) MOUNT BRACKET (RIGHT)(20) MOUNT BRACKET (LEFT)(20) MOUNT BRACKET (LEFT)(21) BOLT(22) BOLT(23) WASHER 8.1-16-1.5(24) NUT(25) ANODE(26) BOLT(27) GROUND CABLE(27) GROUND CABLE(27) GROUND CABLE(28) BOLT(29) SCREW(30) BOLT



Parts List
2006 :: 15 HP :: 4 Stroke Nissan NSF15B2 :: SWIVEL BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET 3V6Q623100 3V6Q62310-0 NEW FOR 3V6 TYPE CLAMP BRACKET $132.12 1
(1) SWIVEL BRACKET 3R3Q623101 3R3Q62310-1 OLD FOR 3G2 TYPE CLAMP BRACKET $145.00 0
(2) BUSHING 28-31-35 3R3624170M 3R3-62417-0 $2.31 2
(3) THRUST PLATE 28.5-48-1 3H8624230M 3H8624230M $1.93 2
(4) O-RING 3.5-25.7 3H8624150M 345-62415-0 $1.10 1 Sold Out View More Details
(5) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(6) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR MF & EF $6.74 1
(7) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR MF & EF $7.91 2
(8) PLATE CO-PILOT 3R3624470M 3R3-62447-0 FOR MF & EF $4.28 1
(9) BOLT 9101135616M 910113-5616 FOR MF & EF $1.15 2
(10) CO-PILOT WASHER 3R3624480M 3R3624480M FOR MF & EF $5.59 1
(11) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR MF & EF $1.48 1
(12) HANDLE CO-PILOT 3R3624410M 3R3-62441-0 FOR MF & EF $13.14 1
(13) NYLON NUT (2T) M8 P1.25 3V5624420M 3V5-62442-0 FOR MF & EF $5.25 1
(14) STEERING SHAFT 3R3Q620101 3R3Q62010-1 $455.91 1
(15) STUD BOLT 10-95 3R3613131M 3R3-61313-1 $7.65 2
(16) WASHER 9401131000M 940113-1000 $1.50 2
(17) NYLON NUT 9304031000M 930403-1000 $4.56 2
(18) RUBBER MOUNT (LOWER) 3V1613020M 3V1-61302-0 FOR 5 (PAGE 32) NEW $9.64 2
(18) RUBBER MOUNT (LOWER) 3R3613020M 3R3-61302-0 FOR 6 (PAGE 32) OLD $8.95 0
(19) MOUNT BRACKET (RIGHT) 3H8Q614012 3H8Q61401-2 FOR 5 (PAGE 32) FOR 3V1-61302-0 RUBBER $58.36 1
(19) MOUNT BRACKET (RIGHT) 3H8Q614010 3H8Q61401-0 FOR 6 (PAGE 32) FOR 3R3-61302-0 RUBBER $58.36 0
(20) MOUNT BRACKET (LEFT) 3H8Q614022 3H8Q61402-2 FOR 5 (PAGE 32) FOR 3V1-61302-0 RUBBER $0.00 1 Sold Out View More Details
(20) MOUNT BRACKET (LEFT) 3H8Q614020 3H8Q61402-0 FOR 6 (PAGE 32) FOR 3R3-61302-0 RUBBER $0.00 0 Sold Out View More Details
(21) BOLT 9161130885M 916113-0885 $3.50 2
(22) BOLT 9161130855M 916113-0855 $3.18 1
(23) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.29 3
(24) NUT 9301130800M 930113-0800 $1.99 3 Sold Out View More Details
(25) ANODE 338602182M 338-60218-2 $9.20 1
(26) BOLT 9101035620M 910103-5620 $1.30 1
(27) GROUND CABLE 398623961M 398-62396-1 L=130 $5.75 3 Sold Out View More Details
(28) BOLT 9101035610M 910103-5610 $1.02 2
(29) SCREW 9215030610M 921503-0610 SWIVEL BRACKET $0.90 1
(30) BOLT 9101035612M 910103-5612 CLAMP BRACKET R $1.07 1
