8. MAGNETO

Click Here for Microfiche Usage Tip

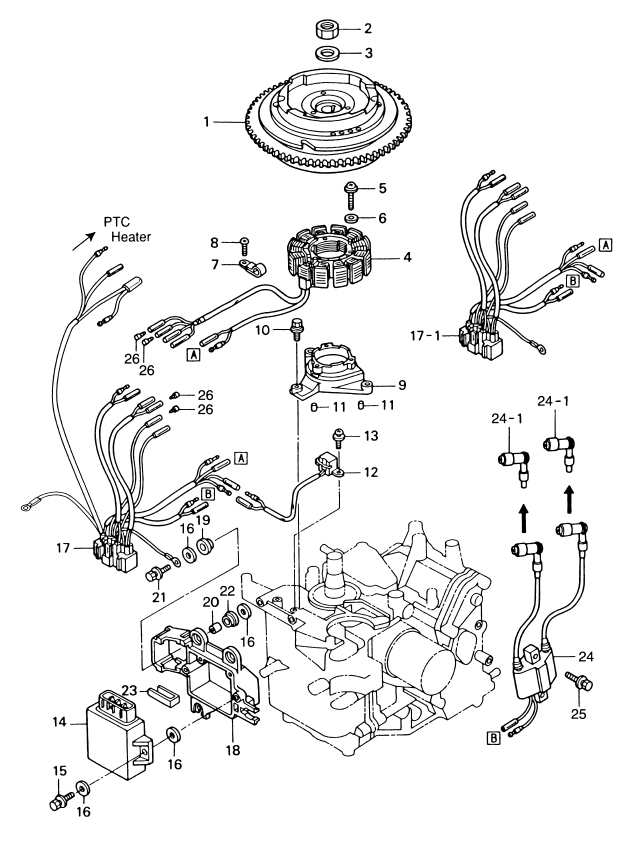

(1) FLYWHEEL CUP (W/RING GEAR)(2) NUT 16-P1.5(3) WASHER 16-27-3.2(4) ALTERNATOR(5) SCREW(6) WASHER(7) CLAMP 6.5-14L(8) SCREW(9) COIL BRACKET(9) COIL BRACKET(10) BOLT(11) DOWEL PIN 6-12(11) DOWEL PIN 6-12(12) PULSER COIL(13) SCREW(14) C.D. UNIT (CU7241)(14) C.D. UNIT (CU7220)(15) BOLT(16) WASHER 6-16-1.5(16) WASHER 6-16-1.5(16) WASHER 6-16-1.5(16) WASHER 6-16-1.5(17) C.D. UNIT CORD ASSY(17-1) C.D. UNIT CORD ASSY(18) ELECTRIC BRACKET(19) RUBBER MOUNT 8.5-12-2(20) COLLAR 6.2-9-9.3(21) BOLT(22) RUBBER MOUNT 8.5-18-7(23) CLAMP(24) IGNITION COIL(24-1) PLUG CAP (WITH RESISTANCE)(24-1) PLUG CAP (WITH RESISTANCE)(25) BOLT(26) CABLE TERMINAL PLUG(26) CABLE TERMINAL PLUG



Parts List
2006 :: 15 HP :: 4 Stroke Nissan NSF15B2 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP (W/RING GEAR) 3H8060960M 3H8-06096-0 FF-51 $183.13 1
(2) NUT 16-P1.5 9311211600M 931121-1600 $3.04 1
(3) WASHER 16-27-3.2 3H8001330M 3H8-00133-0 $1.47 1
(4) ALTERNATOR 3H8060230M 3H8-06023-0 $141.80 1
(5) SCREW 9215036630M 921503-6630 $1.06 3
(6) WASHER 9402030600M 940203-0600 $0.46 3
(7) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(8) SCREW 9215130616M 921513-0616 $0.00 1 Sold Out View More Details
(9) COIL BRACKET 3V6060080M 3V6-06008-0 NEW $23.97 1
(9) COIL BRACKET 3H8060080M 3H8-06008-0 OLD $0.00 0 Sold Out View More Details
(10) BOLT 9101037625M 9101037625M $1.29 3
(11) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(12) PULSER COIL 3H8060710M 3H8-06071-0 $34.59 1
(13) SCREW 9215036516M 921503-6516 $0.00 2 Sold Out View More Details
(14) C.D. UNIT (CU7241) 3V9060602M 3V9-06060-2 18B2#01549~ 15B2#12011~ 9.9B2#11891 $213.81 1
(14) C.D. UNIT (CU7220) 3V9060600M 3V9-06060-0 18B#00001~18B2#01548 15B#11012~15B2#12010 9.9B#11205~9.9B2#11890 $0.00 0 Sold Out View More Details
(15) BOLT 9101130620M 910113-0620 $1.04 2
(16) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 10 Sold Out View More Details
(17) C.D. UNIT CORD ASSY 3V9061670M 3V9-06167-0 18B#00001~ 15B#11205~ 9.9B#11012~ $78.61 1
(17-1) C.D. UNIT CORD ASSY 3H8061670M 3H8-06167-0 15B~#11011 9.9B~#11204 $90.60 0
(18) ELECTRIC BRACKET 3H8069010M 3H8069010M $24.68 1
(19) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 3
(20) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 3
(21) BOLT 9101030625M 910113-0625 $0.95 3
(22) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 3
(23) CLAMP 3V9069730M 3V9-06973-0 $3.55 1 Sold Out View More Details
(24) IGNITION COIL 3H8060400M 3H8-06040-0 $62.68 1
(24-1) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 OLD PART#3H6-06921-0 $25.93 2
(25) BOLT 9101035625M 910103-5625 $1.47 2
(26) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 4 FOR MF 2 FOR EP & EF $1.50 4
