3. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

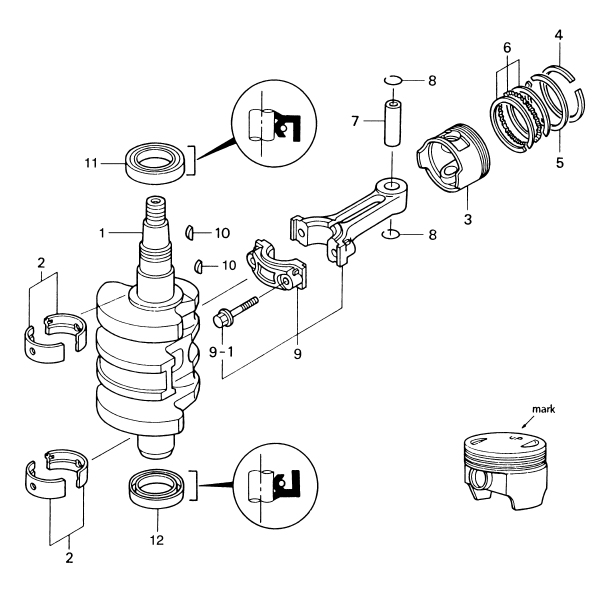

(1) CRANKSHAFT ASSY(2) BEARING (BLACK)(2) BEARING (BLACK)(2) BEARING (BROWN)(2) BEARING (BROWN)(3) PISTON(3) PISTON (0.5MM O/S)(4) PISTON RING TOP(4) PISTON RING TOP (0.5MM O/S)(5) PISTON RING 2ND(5) PISTON RING 2ND (0.5MM O/S)(6) PISTON RING OIL(6) PISTON RING OIL (0.5MM O/S)(7) PISTON PIN(8) PISTON PIN CLIP(8) PISTON PIN CLIP(9) CONNECTING ROD(9-1) CONNECTING ROD BOLT(10) KEY(10) KEY(11) OIL SEAL 32-48-8(12) OIL SEAL 32-44-9



Parts List
2006 :: 9.9 HP :: 4 Stroke Tohatsu MFS9.9B2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3R3000300M 3R3-00030-0 $222.86 1
(2) BEARING (BLACK) 3H8074070M 3H8-07407-0 T-1.5 -0.006 $7.36 4
(2) BEARING (BROWN) 3H8074080M 3H8-07408-0 T-1.5 -0.006 -0.012 $8.77 4
(2) BEARING (BLACK) 3H8074070M 3H8-07407-0 T-1.5 -0.006 $7.36 4
(2) BEARING (BROWN) 3H8074080M 3H8-07408-0 T-1.5 -0.006 -0.012 $8.77 4
(3) PISTON 3H8000010M 3H8-00001-0 $36.26 2
(3) PISTON (0.5MM O/S) 3H8000040M 3H8-00004-0 OPTION $40.86 2
(4) PISTON RING TOP 3H6000110M 3H6-00011-0 $10.41 2
(4) PISTON RING TOP (0.5MM O/S) 3H6000140M 3H6-00014-0 OPTION $7.62 2
(5) PISTON RING 2ND 3H6000120M 3H6-00012-0 $6.27 2
(5) PISTON RING 2ND (0.5MM O/S) 3H6000150M 3H6-00015-0 OPTION $7.62 2
(6) PISTON RING OIL 3H6000130M 3H6-00013-0 $8.47 2
(6) PISTON RING OIL (0.5MM O/S) 3H6000160M 3H6-00016-0 OPTION $7.62 2
(7) PISTON PIN 3H6000210M 3H6-00021-0 $4.86 2
(8) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 4
(9) CONNECTING ROD ASSY 3R0000400M 3R0-00040-0 $51.06 2
(9-1) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 4
(10) KEY 3T5101310M 3T5-10131-0 $1.56 2
(11) OIL SEAL 32-48-8 3H8001210M 3H8-00121-0 $7.07 1 Sold Out View More Details
(12) OIL SEAL 32-44-9 3R3001210M 3R3-00121-0 $8.47 1
