10. RECOIL STARTER

Click Here for Microfiche Usage Tip

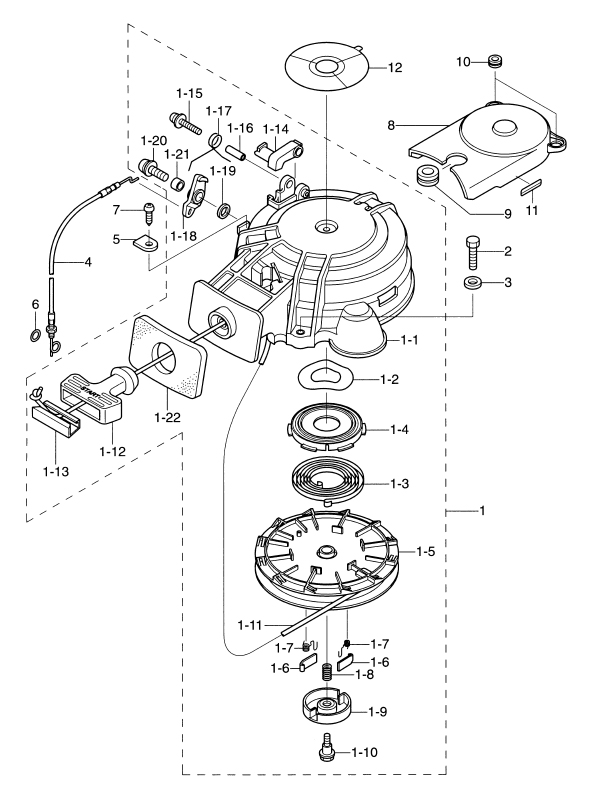

(1) RECOIL STARTER(1-1) STARTER CASE(1-2) WAVE WASHER(1-3) STARTER SPRING(1-4) STARTER SPRING CASE(1-5) REEL(1-6) RATCHET(1-6) RATCHET(1-7) RETURN SPRING(1-7) RETURN SPRING(1-8) FRICTION SPRING(1-9) FRICTION PLATE(1-10) STARTER SHAFT BOLT(1-11) STARTER ROPE(1-12) STARTER HANDLE(1-13) ROPE ANCHOR(1-14) STARTER LOCK (BLACK)(1-15) SCREW(1-16) COLLAR, 4-6-21(1-17) SPRING, STARTER LOCK(1-18) STARTER LOCK CAM(1-19) WASHER(1-20) SCREW(1-21) COLLAR, 6.1-8-6.5(1-22) STARTER SEAL(2) BOLT(3) WASHER, 6.5-16-1.5(4) STARTER LOCK CABLE(5) STOPPER(6) O-RING, 1.5-2.5(7) TAPPING SCREW, 5-12(8) BELT COVER(9) RUBBER MOUNT, 2.5-20(10) GROMMET, 13.2(11) RESISTANCE SPARK PLUG DECAL(12) CAUTION DECAL "B"



Parts List
2006 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3AA050900M 3AA-05090-0 #023322XD~ $132.54 1
(1-1) STARTER CASE 3AA050981M 3AA-05098-0 #023322XD~ $55.89 1
(1-2) WAVE WASHER 3V1052590M 3V1-05259-0 $3.20 1
(1-3) STARTER SPRING 3AA050040M 3AA-05004-0 T=0.67 #023322XD~ $22.50 1
(1-4) STARTER SPRING CASE 3R1051250M 3R1-05125-0 $5.99 1
(1-5) REEL 3V1051041M 3V1-05104-1 $21.91 1
(1-6) RATCHET 3R1050031M 3R1-05003-1 OR 3B2-05003-0 $3.14 2
(1-7) RETURN SPRING 3R1050120M 3H6-05012-0 $2.22 2
(1-8) FRICTION SPRING 3R1050070M 369-05007-0 OR 369-05007-0 $1.59 1
(1-9) FRICTION PLATE 3R1050061M 3B2-05006-0 OR 3B2-05006-0 $6.97 1
(1-10) STARTER SHAFT BOLT 3R1051381M 3R1-05138-1 OR 3B2-05138-0 $3.04 1
(1-11) STARTER ROPE 3AA050130M 3R1-05013-0 Ø 4.5-1620 OR 3B2-05013-0 $8.29 1
(1-12) STARTER HANDLE 3AA050190M 3AA-05019-0 #023322XD~ $5.44 1
(1-13) ROPE ANCHOR 3R1051310M 3R1-05131-0 $4.78 1
(1-14) STARTER LOCK (BLACK) 3AA052520M 3AA-05252-0 #023322XD~ $2.21 1
(1-15) SCREW 9215035430M 921503-5430 $0.93 1
(1-16) COLLAR 4-6-21 3R1052550M 3R1-05255-0 OR 338-05255-0 $1.85 1
(1-17) SPRING STARTER LOCK 3R1052160M 338-05216-0 OR 338-05216-0 $1.27 1
(1-18) STARTER LOCK CAM 3AA052530M 3AA-05253-0 #023322XD~ $2.53 1
(1-19) WASHER 9401130600M 940113-0600 $0.83 1
(1-20) SCREW 9215037616M 921503-7616 $1.36 1
(1-21) COLLAR 6.1-8-6.5 3R1052150M 3R1-05215-0 $2.08 1
(1-22) STARTER SEAL 3AA675030M 3AA-67503-0 #023322XD~ $8.80 1
(2) BOLT 9101130625M 910113-0625 $0.95 3
(3) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 2 FOR EF & EP $1.59 3 Sold Out View More Details
(4) STARTER LOCK CABLE 3V1052070M 3V1-05207-0 $23.56 1
(5) STOPPER 332660330M 332-66033-0 $0.55 1
(6) O-RING 1.5-2.5 3C7032711M 3C7-03271-0 OR 3C7-03271-0 $1.04 1
(7) TAPPING SCREW 5-12 3V1052080M 3V1052080M OLD PART NO. 3V1-05208-0 $1.93 1
(8) BELT COVER 3V1063080M 3V1-06308-0 $7.28 1
(9) RUBBER MOUNT 2.5-20 3V1063020M 3V1-06302-0 $2.91 1
(10) GROMMET 13.2 172360080M 172-36008-0 $2.40 2
(11) RESISTANCE SPARK PLUG DECAL 3H6720260M 3H6-72026-0 $3.04 1
(12) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
