6. CAMSHAFT & OIL PUMP

Click Here for Microfiche Usage Tip

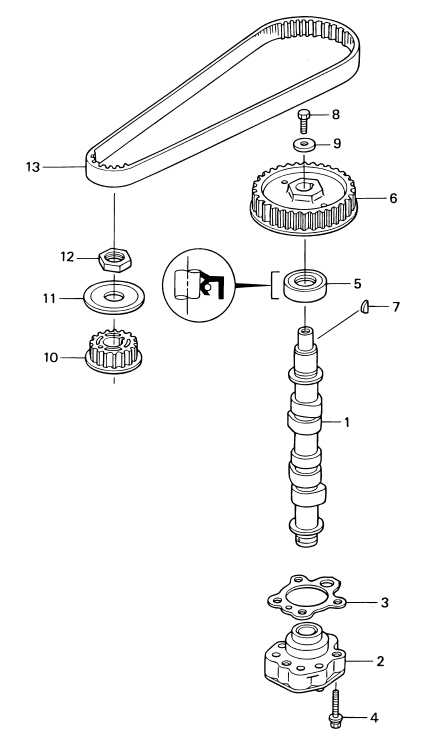

(1) CAMSHAFT(2) OIL PUMP(3) OIL PUMP GASKET(4) BOLT(5) OIL SEAL, 18-35-8(6) DRIVEN PULLEY(7) KEY(8) BOLT, 6-20 PRE-COATED(9) WASHER, 6.5-19-3.2(10) DRIVE PULLEY(11) BELT GUIDE(12) NUT(13) TIMING BELT



Parts List
2006 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: CAMSHAFT & OIL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CAMSHAFT 3V1070100M 3V1-07010-0 $184.05 1
(2) OIL PUMP 3V1076000M 3V1-07600-0 $54.70 1
(3) OIL PUMP GASKET 3V1076530M 3V1-07653-0 $4.29 1
(4) BOLT 9101145635M 910114-5635 OIL PUMP $1.96 3 Sold Out View More Details
(5) OIL SEAL 18-35-8 3H8070250M 3H8-07025-0 $5.44 1
(6) DRIVEN PULLEY 3H8100622M 3H8-10062-2 BLACK CAMSHAFT PULLEY $48.39 1
(7) KEY 309001310M 309-00131-0 $2.31 1
(8) BOLT 6-20 PRE-COATED 3AA601080M 3AA-60108-0 #017458XD~ $1.45 1 Sold Out View More Details
(9) WASHER 6.5-19-3.2 3H8100660M 3H8-10066-0 $1.27 1 Sold Out View More Details
(10) DRIVE PULLEY 3V1100600M 3V1-10060-0 TIMING PULLEY $39.16 1
(11) BELT GUIDE 3V1100630M 3V1-10063-0 $3.73 1
(12) NUT 3V1100680M 3V1-10068-0 $4.31 1
(13) TIMING BELT 3V1100450M 3V1-10045-0 $18.70 1
