2. CYLINDER

Click Here for Microfiche Usage Tip

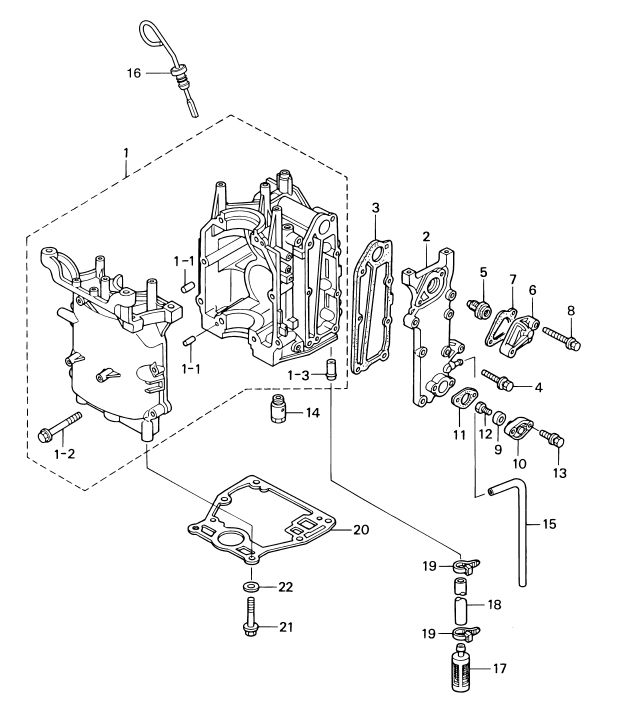

(1) CYLINDER-CRANK CASE(1-1) DOWEL PIN, 6-12(1-1) DOWEL PIN, 6-12(1-2) BOLT, 8-50(1-3) NIPPLE,10-32(2) EXHAUST COVER(3) EXHAUST COVER GASKET(4) BOLT(5) THERMOSTAT(6) THERMOSTAT CAP(7) THERMOSTAT CAP GASKET(8) BOLT(9) ANODE(10) ANODE CAP(11) ANODE CAP GASKET(12) BOLT(13) BOLT(14) PLUNGER(15) RUBBER HOSE(16) OIL LEVEL GAUGE(17) OIL STRAINER(18) HOSE(19) LEAD WIRE BAND, 150(19) LEAD WIRE BAND, 150(20) ENGINE BASEMENT GASKET(21) BOLT(22) WASHER



Parts List
2006 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: CYLINDER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER-CRANK CASE 3V1B011000 3V1B01100-0 $639.64 1
(1-1) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-2) BOLT 8-50 3H8010120M 3H8-01012-0 $2.49 8
(1-3) NIPPLE 10-32 3H8020930M 3H8-02093-0 $0.00 1 Sold Out View More Details
(2) EXHAUST COVER 3V1B023010 3V1B02301-0 $40.30 1
(3) EXHAUST COVER GASKET 3V1023050M 3V1-02305-0 $4.56 1
(4) BOLT 9101135625M 910113-5625 $1.47 5
(5) THERMOSTAT 3R3010300M 3R3-01030-0 $39.63 1
(6) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(7) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(8) BOLT 9101135640M 910113-5640 $1.68 2
(9) ANODE 369602181M 369-60218-1 $7.42 1
(10) ANODE CAP 3H8B011430 3H8B01143-0 $17.31 1
(11) ANODE CAP GASKET 3R3011440M 3R3-01144-0 $2.01 1
(12) BOLT 9101030616M 910113-0616 $0.98 1
(13) BOLT 9101135620M 910113-5620 $1.30 2
(14) PLUNGER 3V2076200M 3V1-07620-0 $26.96 1
(15) RUBBER HOSE 98AB51000M 98AB51000M FOR TELL-TALE $11.41 1
(16) OIL LEVEL GAUGE 3V1074210M 3V1-07421-0 $13.89 1
(17) OIL STRAINER 3V1074100M 3V1-07410-0 $13.34 1
(18) HOSE 98AH100120M 98AH10-0120 $65.61 1
(19) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(20) ENGINE BASEMENT GASKET 3V1013030M 3V1-01303-0 $20.99 1
(21) BOLT 3R3610170M 3R3-61017-0 8-35 $1.82 6
(22) WASHER 9401130800M 940113-0800 $0.84 6
