19. COWL

Click Here for Microfiche Usage Tip

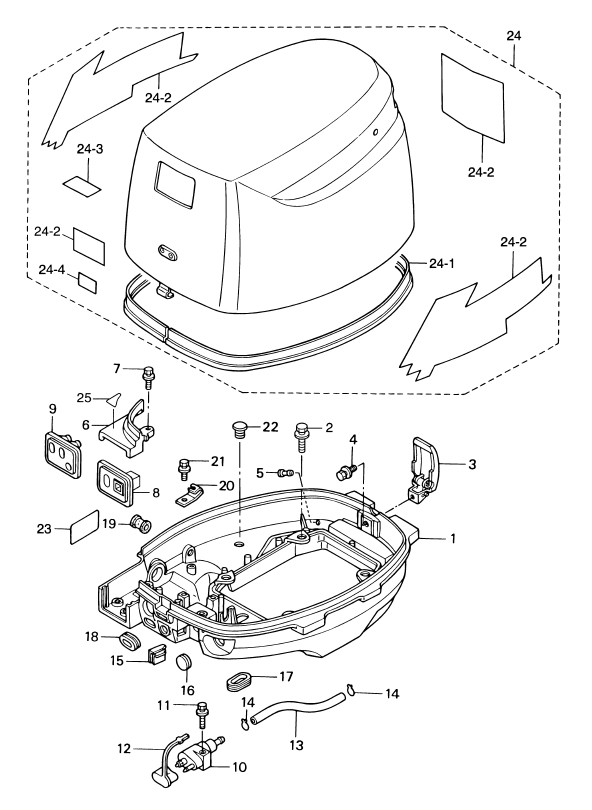

(1) BOTTOM COWL(2) BOLT(3) COWL LATCH(4) BOLT(5) WATER NIPPLE(6) SHIFT LEVER BRACKET COVER(7) BOLT(8) GROMMET(9) GROMMET(10) FUEL CONNECTOR ( ENGINE MALE)(11) BOLT(12) FUEL CONNECTOR PROTECTOR(13) RUBBER HOSE(14) CLIP, o10(14) CLIP, o10(15) GROMMET(16) GROMMET, 17-2.7(17) SHIFT ROD GROMMET(18) BATTERY CABLE GROMMET(19) GROMMET(20) STARTER LOCK CABLE BRACKET(21) BOLT(22) PLUG(23) STORAGE DECAL(24) TOP COWL(24) TOP COWL(24-1) TOP COWL SEAL(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-2) DECAL SET(24-3) CAUTION DECAL "A"(24-4) OIL PRESSURE DECAL(25) SHIFT DECAL (F,N,R)



Parts List
2006 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3V2Q671000 3V2Q67100-0 $269.93 1
(2) BOLT 9101135625M 910113-5625 $1.47 4
(3) COWL LATCH 3V1671200M 3V1-67120-0 $20.93 1
(4) BOLT 9101135625M 910113-5625 $1.47 1
(5) WATER NIPPLE 353011380M 353-01138-0 $2.21 1
(6) SHIFT LEVER BRACKET COVER 3V1Q674810 3V1Q67481-0 $32.81 1
(7) BOLT 9101135616M 910113-5616 $1.15 1
(8) GROMMET 3Y3636210M 3Y3-63621-0 9-8A3/8A3 #026832~ FOR MF & EF $11.28 1
(9) GROMMET (P TYPE) 3V1837320M 3V1-83732-0 FOR EP $5.61 1
(10) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(11) BOLT 9101135625M 910113-5625 $1.47 1
(12) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(13) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(14) CLIP ø10 338022150M 338-02215-0 $1.41 2
(15) GROMMET 3V1636240M 3V1-63624-0 THROTTLE CABLE $2.30 1
(16) GROMMET 17-2.7 345671170M 345-67117-0 FOR MF & EP $2.31 1 Sold Out View More Details
(17) SHIFT ROD GROMMET 3R3662260M 3R3-66226-0 $1.44 2
(18) BATTERY CABLE GROMMET 3R3671620M 3R3-67162-0 $1.98 1
(19) GROMMET 3B2671870M 3B2-67187-0 FOR MF & EF $3.27 1
(20) STARTER LOCK CABLE BRACKET 3V1690000M 3V1-69000-0 $5.18 1
(21) BOLT 9101135612M 910113-5612 $1.07 1
(22) PLUG 3A3609840M 3A3-60984-0 $2.31 1
(23) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(24) TOP COWL 3V2Q676302 3V2Q67630-2 TOHATSU $416.40 1
(24) TOP COWL 3Y3Q676450 3Y3Q67645-0 NISSAN $0.00 1 Sold Out View More Details
(24-1) TOP COWL SEAL 3V1675010M 3V1-67501-0 $52.28 1
(24-2) DECAL SET 3V1Q878011 3V1Q87801-1 TOHATSU $34.78 1
(24-2) DECAL SET 3Y3N878011 3Y3N87801-1 NISSAN $27.28 1
(24-3) CAUTION DECAL A 3R0721800M 3R0-72180-0 $3.40 1
(24-4) OIL PRESSURE DECAL 3H6761990M 3H6-76199-0 $0.00 1 Sold Out View More Details
(25) SHIFT DECAL (F N R) 3Y3675780M 3Y3-67578-0 9.8A3/8A3 # 026832XE~ / FOR MF & EF $2.07 1
