18. BRACKET (FOR P TYPE)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (RIGHT)(1A) CLAMP BRACKET (RIGHT)(2) CLAMP BRACKET (LEFT)(2A) CLAMP BRACKET (LEFT)(3) SWIVEL BRACKET SHAFT(3) SWIVEL BRACKET SHAFT(4) NYLON NUT,7/8(5) WASHER, 22-36-1(5) WASHER, 22-36-1(6) PLATE(7) DISTANCE PIECE(8) BOLT(8) BOLT(9) TRIM SETTING PLATE(10) TILT LOCK PIECE(11) KNOB(11) KNOB(12) TILT LOCK KNOB SPRING(12) TILT LOCK KNOB SPRING(13) SCREW(13) SCREW(14) CLAMP SCREW ASSY(14-1) CLAMP SCREW(14-2) CLAMP SCREW HANDLE(14-3) RIVET(15) CLAMP SCREW PAD(16) SWIVEL BRACKET(17) STEERING SHAFT(18) STUD BOLT(18) STUD BOLT(19) THRUST PLATE, 22-44-2(19) THRUST PLATE, 22-44-2(20) O-RING, 3.5-22(21) BUSHING, 24-30-30(21) BUSHING, 24-30-30(22) RUBBER MOUNT (UPPER)(22) RUBBER MOUNT (UPPER)(23) BOLT(23) BOLT(24) DAMPER (UPPER)(25) WASHER(25) WASHER(26) NUT(26) NUT(27) RUBBER MOUNT (LOWER)(27) RUBBER MOUNT (LOWER)(28) MOUNT BRACKET (RIGHT)(29) MOUNT BRACKET (LEFT)(30) BOLT(31) TILT STOPPER BODY(32) SPRING(33) TILT STOPPER SHAFT (UPPER)(34) E-RING, D=6(35) TILT STOPPER SHAFT (LOWER)(35) TILT STOPPER SHAFT (LOWER)(36) SPRING(37) E-RING, D=9(37) E-RING,D=8(38) WASHER, 10.5-18-1.5(39) TILT STOPPER(40) BOLT(40) BOLT(41) WAVE WASHER, D=10(42) GREASE FITTING(42) GREASE FITTING(43) REVERSE LOCK(44) REVERSE LOCK SPRING(45) GROUNG CABLE(45) GROUNG CABLE(46) BOLT(46) BOLT(47) CO- PILOT HANDLE(48) WASHER, 8.1-20-0.8(49) CO-PILOT BOLT(50) WASHER(51) NYLON NUT, 8P-1.25(52) CO-PILOT PLATE(53) BOLT(54) CO-PILOT WASHER(55) CO-PILOT DISC(55) CO-PILOT DISC(56) CARRYING HANDLE(57) BOLT(57A) BOLT(58) WASHER,8.5-34-3(58A) WASHER(59) WASHER(60) NYLON NUT,8P-1.25(60A) NYLON NUT, 1/4(61) TRIM POSTION DECAL(62) LOWER TILT LIMIT DECAL(63) CO-PILOT DECAL(64) TILT LOCK DECAL



Parts List

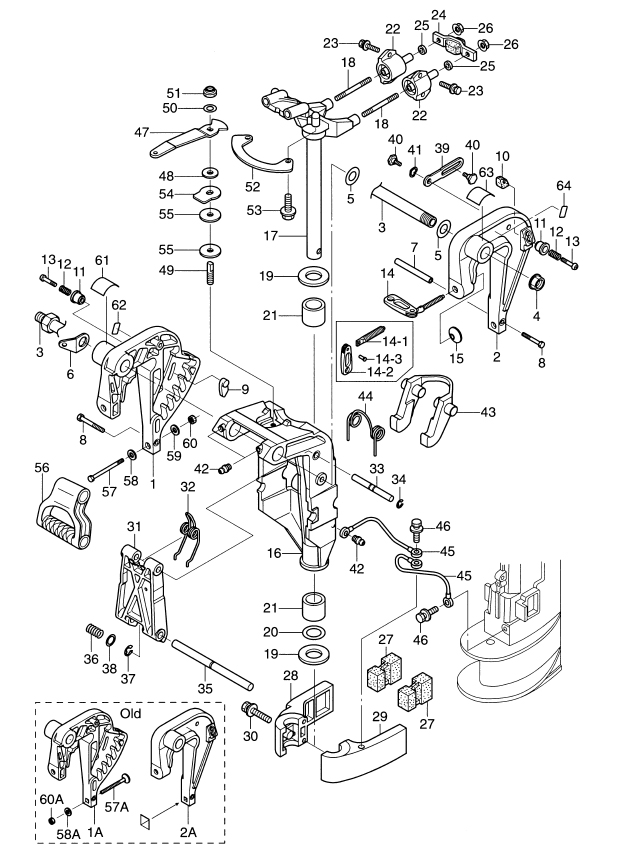

2006 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: BRACKET (FOR P TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3AAQ621121 3AAQ62112-1 STERN BRACKET (RIGHT) STARBOARD $68.55 1
(1A) CLAMP BRACKET (RIGHT) 3AAS621120 3AAS62112-0 OLD $0.00 1 Sold Out View More Details
(2) CLAMP BRACKET (LEFT) 3AAQ621131 3AAQ62113-1 STERN BRACKET (LEFT) PORT $68.55 1
(2A) CLAMP BRACKET (LEFT) 3AAS621130 3AAS62113-0 OLD $0.00 1 Sold Out View More Details
(3) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT OR 346-62191-0 $41.18 1
(4) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(5) WASHER 22-36-1 3AA621160M 3AA-62116-0 NYLON $3.91 2
(6) PLATE 3AA621140M 3AA-62114-0 $5.99 1
(7) DISTANCE PIECE 3AA621170M 3AA-62117-0 $9.43 1
(8) BOLT 9101135640M 910113-5640 $1.68 2
(9) TRIM SETTING PLATE 3AA621630M 3AA-62163-0 $4.20 1
(10) TILT LOCK PIECE 3AA621640M 3AA-62164-0 $4.38 1
(11) KNOB 3AA624630M 3AA-62463-0 $4.67 2
(12) TILT LOCK KNOB SPRING 3Y0661120M 3Y0-66112-0 $3.80 2
(13) SCREW 9215030535M 921503-0535 $0.65 2
(14) CLAMP SCREW ASSY 3AAQ621000 3AAQ62100-0 $56.36 2
(14-1) CLAMP SCREW 3AA621030M 3AA-62103-0 $14.84 2
(14-2) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 2
(14-3) RIVET 3C8621041M 3C8-62104-1 $0.92 2
(15) CLAMP SCREW PAD 332621021M 332-62102-1 $7.57 2
(16) SWIVEL BRACKET 3AAQ623101 3AAQ62310-1 $142.70 1
(17) STEERING SHAFT 3AAQ620100 3AAQ62010-0 $270.30 1
(18) STUD BOLT 3V1613130M 3V1-61313-0 $7.18 2 Sold Out View More Details
(19) THRUST PLATE 22-44-2 350624230M 350-62423-0 $4.63 2
(20) O-RING 3.5-22 350624150M 350-62415-0 $2.07 1
(21) BUSHING 24-30-30 350624170M 350-62417-0 $6.65 2
(22) RUBBER MOUNT (UPPER) 3V1613011M 3V1-61301-1 $43.13 2
(23) BOLT 9101845620M 910184-5620 $1.30 4
(24) DAMPER (UPPER) 3V1613330M 3V1613330M $21.58 1
(25) WASHER 9401130800M 940113-0800 $0.84 2
(26) NUT 3V1613240M 3V1-61324-0 $1.99 2 Sold Out View More Details
(27) RUBBER MOUNT (LOWER) 3V1613020M 3V1-61302-0 $9.64 2
(28) MOUNT BRACKET (RIGHT) 3V1Q614010 3V1Q61401-0 STARBOARD $44.80 1
(29) MOUNT BRACKET (LEFT) 3V1Q614020 3V1Q61402-0 PORT $44.80 1
(30) BOLT 9101135652M 910113-5652 $2.91 2 Sold Out View More Details
(31) TILT STOPPER BODY 3AA629940M 3AA-62994-0 $18.13 1
(32) SPRING 3AA624340M 3AA-62434-0 $7.76 1
(33) TILT STOPPER SHAFT (UPPER) 3AA629950M 3AA-62995-0 $10.50 1
(34) E-RING D=6 9453030600M 945303-0600 $0.83 2
(35) TILT STOPPER SHAFT (LOWER) 3AA629961M 3AA-62996-0 NEW #046629XD~ $15.04 1
(35) TILT STOPPER SHAFT (LOWER) 3AA629960M 3AA-62996-0 OLD ~#043353XD $15.04 0
(36) SPRING 3AA637270M 3AA-63727-0 $3.83 1
(37) E-RING D=9 9453030900M 945303-0900 NEW #046629XD~ $0.79 1
(37) E-RING D=8 9453030800M 945303-0800 OLD ~#043353XD $0.76 0
(38) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 1
(39) TILT STOPPER 3AA624540M 3AA-62454-0 $7.23 2
(40) BOLT 3AA624520M 3AA-62452-0 $3.91 4
(41) WAVE WASHER D=10 9414031000M 941403-1000 $0.81 2
(42) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(43) REVERSE LOCK 3AA663221M 3AA-66322-0 $14.08 1
(44) REVERSE LOCK SPRING 3AA663150M 3AA-66315-0 $7.91 1
(45) GROUNG CABLE 3A3623961M 3A3-62396-0 L=110 $17.85 2
(46) BOLT 9101035612M 910103-5612 $1.07 2
(47) CO- PILOT HANDLE 3AA624410M 3AA-62441-0 $12.91 1
(48) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 $1.48 1
(49) CO-PILOT BOLT 3R3624450M 3R3-62445-0 $6.74 1
(50) WASHER 9401130800M 940113-0800 $0.84 1
(51) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(52) CO-PILOT PLATE 3AA624470M 3AA-62447-0 $5.67 1
(53) BOLT 9101135616M 910113-5616 $1.15 2
(54) CO-PILOT WASHER 3R3624480M 3R3624480M $5.59 1
(55) CO-PILOT DISC 3R3624490M 3R3-62449-0 $7.91 2
(56) CARRYING HANDLE 3AA611990M 3AA-61199-0 $16.24 1
(57) BOLT 9161130885M 916113-0885 OR 910113-0885 $3.50 2
(57A) BOLT 3AA621330M 3AA-62133-0 OLD $5.23 0 Sold Out View More Details
(58) WASHER 8.5-34-3 3Z0613340M 3Z0-61334-0 $3.91 2
(58A) WASHER 3AA613340M 3AA-61334-0 OLD $0.00 0 Sold Out View More Details
(59) WASHER 9401130800M 940113-0800 $0.84 2
(60) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 2
(60A) NYLON NUT 1/4 3AA613250M 3AA-61325-0 OLD $4.77 0 Sold Out View More Details
(61) LOWER TILT LIMIT DECAL 3AA675890M 3AA-67589-0 $0.00 1 Sold Out View More Details
(62) LOWER TILT LIMIT DECAL 3AA675890M 3AA-67589-0 $0.00 1 Sold Out View More Details
(63) CO-PILOT DECAL 3AA720490M 3AA-72049-0 $0.00 1 Sold Out View More Details
(64) TILT LOCK DECAL 3AA675840M 3AA-67584-0 $0.00 1 Sold Out View More Details
