9. ELECTRIC PARTS

Click Here for Microfiche Usage Tip

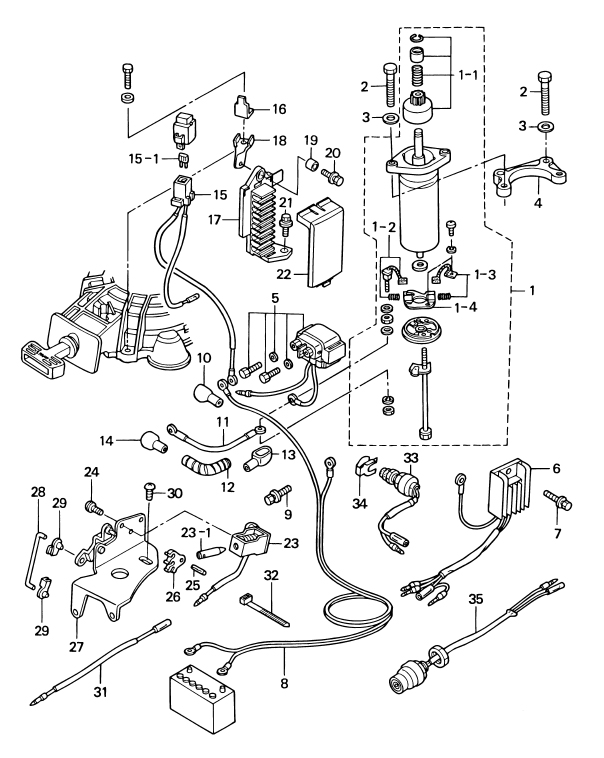

(1) STARTER MOTOR (S106-12B)(1-1) PINION(1-2) POSITIVE BRUSH (WITH SPRING)(1-3) NEGATIVE BRUSH (WITH SPRING)(1-4) BRUSH HOLDER(2) BOLT(2) BOLT(3) WASHER(3) WASHER(4) STARTER MOTOR BRACKET(5) STARTER SOLENOID(6) RECTIFIER(7) BOLT(8) BATTERY CABLE (L=2500)(9) BOLT(10) TERMINAL CAP(11) STARTER CABLE(12) SPIRAL TUBE PROTECTOR(13) TERMINAL CAP(14) TERMINAL CAP(15) FUSE CABLE(15-1) FUSE (20A)(16) FUSE HOLDER STAY(17) CABLE TERMINAL HOLDER(18) CABLE TERMINAL HOLDER STAY(19) COLLAR, 6-8-6(20) BOLT(21) BOLT(22) TERMINAL HOLDER COVER(23) CHOKE SOLENOID(23-1) PLUNGER(24) SCREW(25) SPRING PIN, 3-12(26) CHOKE SOLENOID HOOK(27) CHOKE SOLENOID BRACKET(28) LINK ROD(29) ROD SNAP(29) ROD SNAP(30) SCREW(31) ASSIST CORD (BLUE)(32) LEAD WIRD BAND, 104(33) NEUTRAL SWITCH(34) NEUTRAL SWITCH ACTUATOR(35) MAIN SWITCH



Parts List
2006 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR 3AA760100M 3AA-76010-0 #010322XD~ FOR EP & EF $430.05 1
(1-1) PINION 350760150M 350-76015-0 FOR EP & EF $127.93 1
(1-2) POSITIVE BRUSH (WITH SPRING) 3AA760120M 3AA-76012-0 #010322XD~ FOR EP & EF $30.37 1
(1-3) NEGATIVE BRUSH (WITH SPRING) 3AA760130M 3AA-76013-0 #010322XD~ FOR EP & EF $30.37 1
(1-4) BRUSH HOLDER 3AA760140M 3AA-76014-0 #010322XD~ FOR EP & EF $0.00 1 Sold Out View More Details
(2) BOLT 9161140830M 916114-0830 #010322XD~ FOR EP & EF $0.00 4 Sold Out View More Details
(3) WASHER 9401130800M 940113-0800 FOR EP & EF $0.84 4
(4) STARTER MOTOR BRACKET 3V1760110M 3V1-76011-0 FOR EP & EF $30.19 1
(5) STARTER SOLENOID 3H8760400M 3H8-76040-0 FOR EP & EF $67.57 1
(6) RECTIFIER 3AA760650M 3AA-76065-0 #031096XD~ FOR EP & EF $102.12 1
(7) BOLT 9101035616M 910103-5616 FOR EP & EF $1.15 1
(8) BATTERY CABLE (L=2500) 3V1761201M 3V1-76120-1 #036546XD~ FOR EP & EF $61.59 1
(9) BOLT 9101035610M 910103-5610 FOR EP & EF $1.02 1
(10) TERMINAL CAP 3AA761450M 3AA-76145-0 FOR EP & EF $2.25 1
(11) STARTER CABLE 3B2761471M 3B2-76147-1 L=200 FOR EP & EF $16.50 1
(12) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 STARTER CABLE Ø 10-100 FOR EP & EF $6.21 1
(13) TERMINAL CAP 3Y0761450M 3Y0-76145-0 FOR EP & EF $2.25 1
(14) TERMINAL CAP 3Y1761450M 3Y1-76145-0 FOR EP & EF $2.25 1
(15) FUSE CABLE 3V1760660M 3V1-76066-0 L=185 FOR EP & EF $32.81 1
(15-1) FUSE (20A) 3T5762470M 3T5-76247-0 FOR EP & EF $2.99 2
(16) FUSE HOLDER STAY 3R0760640M 3R0-76064-0 FOR EP & EF $1.44 1
(17) CABLE TERMINAL HOLDER 3AA062810M 3AA-06281-0 #031096XD~ FOR EP & EF $13.34 1
(18) CABLE TERMINAL HOLER STAY 3V1062840M 3V1-06284-0 FOR EP & EF $4.89 1
(19) COLLAR 6-8-6 174350120M 174-35012-0 #031096XD~ FOR EP & EF $2.86 1
(20) BOLT 9101135612M 910113-5612 FOR EP & EF $1.07 1
(21) BOLT 9101135616M 910113-5616 FOR EP & EF $1.15 1
(22) TERMINAL HOLDER COVER 3AA069020M 3AA-06902-0 #031096XD~ FOR EP & EF $5.41 1
(23) CHOKE SOLENOID 3V1760500M 3V1-76050-0 FOR EP $63.34 1
(23-1) PLUNGER 361760730M 361-76073-0 FOR EP $8.80 1
(24) SCREW 9215036408M 921503-6408 CHOKE SOLENOID FOR EP $0.90 3
(25) SPRING PIN 3-12 9514030312M 951403-0312 FOR EP $0.83 1
(26) CHOKE SOLENOID HOOK 346760570M 346-76057-0 FOR EP $3.00 1
(27) CHOKE SOLENOID BRACKET 3V1760781M 3V1-76078-1 FOR EP $36.78 1 Sold Out View More Details
(28) LINK ROD 3V1760760M 3V1-76076-0 FOR EP $2.58 1
(29) ROD SNAP 3V1671960M 3V1-67196-0 FOR EP $2.08 2
(30) SCREW 9215130510M 921513-0510 FOR EP $0.81 1
(31) ASSIST CORD (BLUE) 3V1725470M 3V1-72547-0 FOR EP $3.62 1
(32) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 FOR EP $0.00 1 Sold Out View More Details
(33) NEUTRAL SWITCH 398760800M 398-76080-0 FOR EF $41.45 1
(34) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF $4.02 1
(35) MAIN SWITCH 3AA760260M 3AA-76026-0 OR 3B2-76026-1 FOR EF $13.94 1
