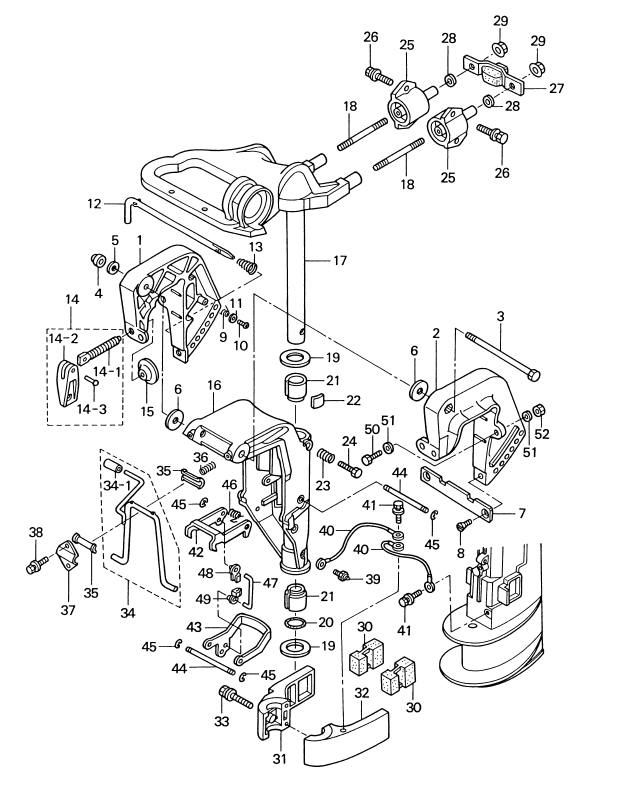

17. BRACKET (FOR F TYPE)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (RIGHT)(2) CLAMP BRACKET (LEFT)(3) BOLT, 8-122(4) NYLON NUT, 8-P1.25(5) WASHER(6) WASHER, 8.5-28-1(6) WASHER, 8.5-28-1(7) DISTANCE PLATE(8) SCREW(9) CLAMP BRACKET SPRING(10) SCREW(11) WASHER, 4.3-16-1.5(12) THRUST ROD(13) THRUST ROD SPRING(14) CLAMP SCREW ASSY(14-1) CLAMP SCREW(14-2) CLAMP SCREW HANDLE(14-3) RIVIT, 3-22(15) CLAMP SCREW PAD(16) SWIVEL BRACKET(17) STEERING SHAFT(18) STUD BOLT(18) STUD BOLT(19) THRUST PLATE, 22-44-2(19) THRUST PLATE, 22-44-2(20) O-RING, 3.5-22(21) BUSHING, 24-30-30(21) BUSHING, 24-30-30(22) FRICTION PLATE(23) FRICTION SPRING(24) BOLT(25) RUBBER MOUNT (UPPER)(25) RUBBER MOUNT (UPPER)(26) BOLT(26) BOLT(27) DAMPER (UPPER)(28) WASHER(28) WASHER(29) NUT(29) NUT(30) RUBBER MOUNT (LOWER)(30) RUBBER MOUNT (LOWER)(31) MOUNT BRACKET (RIGHT)(32) MOUNT BRACKET (LEFT)(33) BOLT(34) TILT STOPPER(34-1) TILT STOPPER GRIP(35) TILT STOPPER BUSHING(35) TILT STOPPER BUSHING(36) SPRING(37) TILT STOPPER SETTING PLATE(38) BOLT(39) GREASE FITTING(40) GROUND CABLE(40) GROUND CABLE(41) BOLT(41) BOLT(42) REVERSE LOCK(43) REVERSE LOCK ARM(44) REVERSE LOCK ROD(44) REVERSE LOCK ROD(45) E-RING, D=5(45) E-RING, D=5(45) E-RING, D=5(45) E-RING, D=5(46) REVERSE LOCK SPRING(47) REVERSE LOCK ROD(48) ROD SNAP,5-3(49) ROD SNAP, 4-2(50) BOLT(51) WASHER(51) WASHER(52) NUT



Parts List
2006 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: BRACKET (FOR F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3V1Q621120 3V1Q62112-0 STERN BRACKET RIGHT STARBOARD $70.52 1
(2) CLAMP BRACKET (LEFT) 3V1Q621130 3V1Q62113-0 STERN BRACKET LEFT PORT $70.52 1 Sold Out View More Details
(3) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(4) NYLON NUT 8-P1.25 9304460800M 930446-0800 $1.99 1 Sold Out View More Details
(5) WASHER 9401130800M 940113-0800 $0.84 1
(6) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(7) DISTANCE PLATE 3B2621180M 3B2-62118-0 $6.47 1 Sold Out View More Details
(8) SCREW 9216130612M 921613-0612 $0.98 2
(9) CLAMP BRACKET SPRING 369621461M 369-62146-1 $2.31 1
(10) SCREW 9217030406M 920703-0406 OR 920703-0406 $0.67 1
(11) WASHER 4.3-16-1.5 369621470M 369-62147-0 $0.76 1
(12) THRUST ROD 350621211M 350-62121-1 $20.96 1
(13) THRUST ROD SPRING 369621222M 369-62122-2 $1.85 1 Sold Out View More Details
(14) CLAMP SCREW ASSY 398Q621000 398Q62100-0 $31.11 2
(14-1) CLAMP SCREW 398621030M 398-62103-0 $49.87 2
(14-2) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 2
(14-3) RIVET 3C8621041M 3C8-62104-1 $0.92 2
(15) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(16) SWIVEL BRACKET 3V1Q623100 3V1Q62310-0 $136.79 1
(17) STEERING SHAFT 3V1Q620100 3V1Q62010-0 $251.99 1
(18) STUD BOLT 3V1613130M 3V1-61313-0 $7.18 2 Sold Out View More Details
(19) THRUST PLATE 22-44-2 350624230M 350-62423-0 $4.63 2
(20) O-RING 3.5-22 350624150M 350-62415-0 $2.07 1
(21) BUSHING 24-30-30 350624170M 350-62417-0 $6.65 2
(22) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(23) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(24) BOLT 9101130830M 910113-0830 $1.67 1
(25) RUBBER MOUNT (UPPER) 3V1613011M 3V1-61301-1 #026947XD $43.13 2
(26) BOLT 9101845620M 910184-5620 #026947XD $1.30 4
(27) DAMPER (UPPER) 3V1613330M 3V1613330M #026947XD $21.58 1
(28) WASHER 9401130800M 940113-0800 $0.84 2
(29) NUT 3V1613240M 3V1-61324-0 #026947XD $1.99 2 Sold Out View More Details
(30) RUBBER MOUNT (LOWER) 3V1613020M 3V1-61302-0 $9.64 2
(31) MOUNT BRACKET (RIGHT) 3V1Q614010 3V1Q61401-0 STARBOARD $44.80 1
(32) MOUNT BRACKET (LEFT) 3V1Q614020 3V1Q61402-0 PORT $44.80 1
(33) BOLT 9101135652M 910113-5652 $2.91 2 Sold Out View More Details
(34) TILT STOPPER 3B2Q624313 3B2Q62431-3 $34.68 1 Sold Out View More Details
(34-1) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(35) TILT STOPPER BUSHING 393624370M 393-62437-0 $2.25 2
(36) SPRING 369661121M 369-66112-1 $1.61 1
(37) TILT STOPPER SETTING PLATE 369624391M 369-62439-1 $4.40 1
(38) BOLT 9101135612M 910113-5612 $1.07 2
(39) GREASE FITTING 344671770M 344-67177-0 $2.56 1 Sold Out View More Details
(40) GROUNG CABLE 3A3623961M 3A3-62396-0 L=110 $17.85 2
(41) BOLT 9101035612M 910103-5612 $1.07 2
(42) REVERSE LOCK 3V1663220M 3V1-66322-0 $12.34 1
(43) REVERSE LOCK ARM 3V1663130M 3V1-66313-0 $15.13 1
(44) REVERSE LOCK ROD 3B2663211M 3B2-66321-1 $4.19 2
(45) E-RING D=5 9453030500M 945303-0500 $0.86 4
(46) REVERSE LOCK SPRING 3B2663150M 3B2-66315-0 $2.31 1
(47) REVERSE LOCK ROD 3V1663050M 3V1-66305-0 $3.46 1
(48) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 1
(49) ROD SNAP 4-2 3K9052230M 3K9-05223-0 $1.02 1
(50) BOLT 9161130885M 916113-0885 OPTION $3.50 2
(51) WASHER 9401130800M 940113-0800 OPTION $0.84 4
(52) NUT 9301130800M 930113-0800 OPTION $1.99 2 Sold Out View More Details
