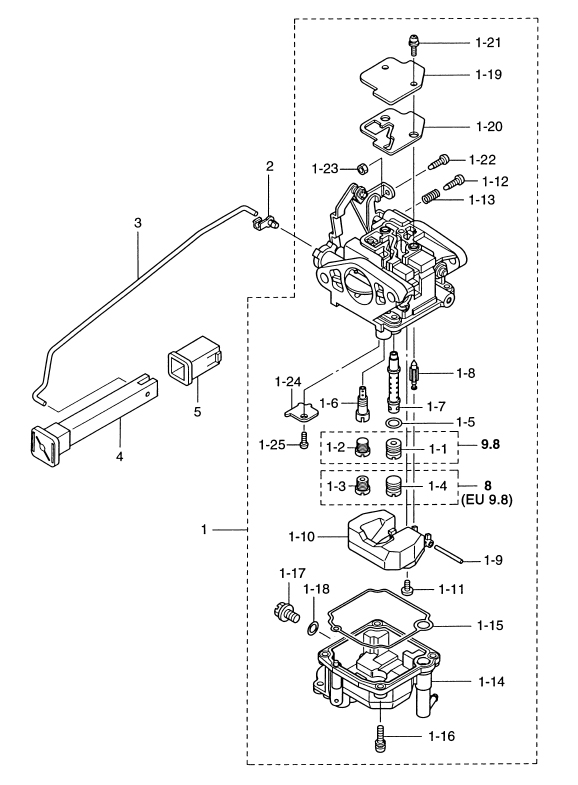

5. CARBURETOR

Click Here for Microfiche Usage Tip
(1) CARBURETOR(1) CARBURETOR(1) CARBURETOR (FOR EU)(1) CARBURETOR (FOR EU)(1-1) MAIN JET #92(1-2) PLUG(1-3) MAIN JET # 76(1-3) MAIN JET # 71 (FOR EU)(1-4) PLUG(1-5) O- RING(1-6) SLOW JET #36(1-6) SLOW JET #37 (FOR EU)(1-7) MAIN NOZZLE(1-7) MAIN NOZZLE (FOR EU)(1-8) FLOAT VALVE(1-9) FLOAT ARM PIN(1-10) FLOAT(1-11) SCREW(1-12) STOP SCREW(1-13) SPRING(1-14) FLOAT CHAMBER(1-15) FLOAT CHAMBER GASKET(1-16) SCREW(1-17) DRAIN SCREW(1-18) GASKET(1-19) CARBURETOR COVER(1-20) CARBURETOR COVER GASKET(1-21) SCREW(1-22) STOP SCREW(1-23) NUT(1-24) PLATE(1-25) SCREW(2) ROD SNAP o 3B(3) CHOKE LINK ROD(4) CHOKE ROD(5) BUSHING



Parts List
2006 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3V1031002M 3V1-03100-2 #036546XD~ FOR MF &EF (3V1FB) $212.34 1
(1) CARBURETOR 3V1031332M 3V1-03133-2 #036546XD~ FOR EP (3V1PB) $234.15 1
(1) CARBURETOR (FOR EU) 3DN031000 3DN-03100-0 FOR MF &EF (3DNFA) $0.00 1 Sold Out View More Details
(1) CARBURETOR (FOR EU) 3DN031330 3DN-03133-0 FOR EP (3DNPA) $0.00 1 Sold Out View More Details
(1-1) MAIN JET #92 3V2044920M 3V2-04492-0 OLD PART # 3V2-04692-0 $7.92 1 Sold Out View More Details
(1-2) PLUG 3V2031690M 3V2-03169-0 $6.13 1
(1-3) MAIN JET #76 3V1044760M 3V1-04476-0 OLD PART NO. 3V1-04676-0 $8.14 1
(1-3) MAIN JET # 71 (FOR EU) 3V1044710M 3V1-04471-0 FOR EU (EUROPE) ONLY $7.69 1
(1-4) PLUG (FOR EU) 3V1031690M 3V1-03169-0 $6.13 1
(1-5) O-RING 3V1031160M 3V1-03116-0 $1.61 1
(1-6) SLOW JET #36 3V1045390M 3V1-04539-0 OLD PART NUMBER 3V1-04739-0 $18.78 1
(1-6) SLOW JET #37 (FOR EU) 3V1045370M 3V1-04537-0 FOR EU (EUROPE) ONLY $18.59 1
(1-7) MAIN NOZZLE 3V1031410M 3V1-03141-0 $20.91 1
(1-7) MAIN NOZZLE (FOR EU) 3Y1031410 3Y1-03141-0 FOR EU (EUROPE) ONLY $0.00 1 Sold Out View More Details
(1-8) FLOAT VALVE 3V1031471M 3V1-03147-1 $16.08 1 Sold Out View More Details
(1-9) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.56 1
(1-10) FLOAT 3C8031250M 3C8-03125-0 $15.32 1 Sold Out View More Details
(1-11) SCREW 9217030406M 920703-0406 $0.72 1
(1-12) STOP SCREW 3V2031790M 3V2-03179-0 #036546XD~ L=18 $3.59 1
(1-13) SPRING 3V2031570M 3V2-03157-0 #036546XD~ L=14 $2.59 1
(1-14) FLOAT CHAMBER 3V1031200M 3V1-03120-0 $41.54 1
(1-15) FLOAT CHAMBER GASKET 3V1031210M 3V1-03121-0 $5.20 1
(1-16) SCREW 9225036412M 922503-6412 $1.57 4 Sold Out View More Details
(1-17) DRAIN SCREW 3V1031920M 3V1-03192-0 $3.51 1
(1-18) DRAIN SCREW GASKET 3V1031930M 3V1-03193-0 $2.58 1
(1-19) CARBURETOR COVER 3C8031810M 3C8-03181-0 $7.39 1
(1-20) CARBURETOR COVER GASKET 3V1031820M 3V1-03182-0 $7.22 1
(1-21) SCREW 9225036410M 922503-6410 $1.91 2
(1-22) STOP SCREW 3V1031790M 3V1-03179-0 L=15 $3.55 1
(1-23) NUT 3V1031910M 3V1-03191-0 $5.69 1
(1-24) PLATE 3V1031280M 3V1-03128-0 $2.42 1
(1-25) SCREW 9225030305M 922503-0305 $0.00 1 Sold Out View More Details
(2) ROD SNAP ø 3B 346671961M 346-67196-1 FOR MF & EF $2.74 1
(3) CHOKE LINK ROD 3Y3671920M 3Y3-67192-0 9.8A3/8A3 #026832XE~ FOR MF & EF $5.96 1
(4) CHOKE ROD 3C8671511M 3C8-67151-0 #036546XD~ FOR MF & EF $6.15 1
(5) BUSHING 3C8671560M 3C8-67156-0 FOR MF & EF $3.54 1
