3. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

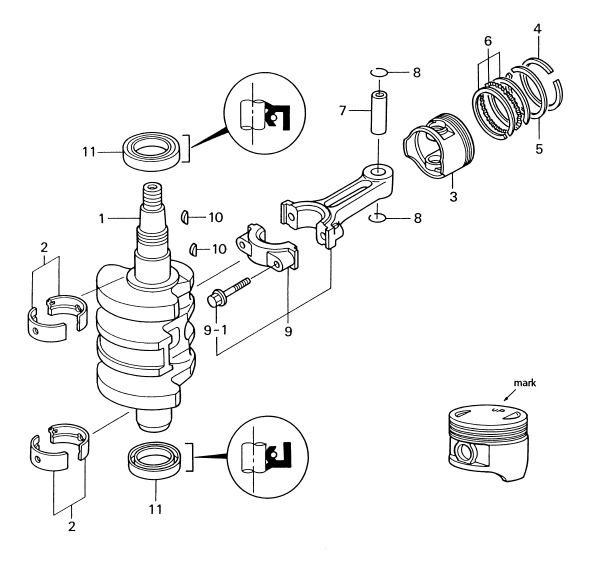

(1) CRANKSHAFT(2) BEARING (BLACK)(2) BEARING (BLACK)(2) BEARING (BROWN)(2) BEARING (BROWN)(3) PISTON(3) PISTON (.05MM O/S)(4) PISTON RING TOP(4) PISTON RING TOP (0.5MM O/S)(5) PISTON RING 2ND(5) PISTON RING 2ND (0.5MM O/S)(6) PISTON RING OIL(6) PISTON RING OIL (0.5MM O/S)(7) PISTON PIN(8) PISTON PIN CLIP(8) PISTON PIN CLIP(9) CONNECTING ROD(9-1) CONNECTING ROD BOLT(10) KEY(10) KEY(11) OIL SEAL, 30-45-8(11) OIL SEAL, 30-45-8



Parts List
2006 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT 3V1000301M 3V1-00030-1 #010322XD~ $295.76 1
(2) BEARING (BLACK) 3V1074070M 3V1-07407-0 T=1.5 0 -0.006 $4.20 4
(2) BEARING (BROWN) 3V1074080M 3V1-07408-0 T=1.5 -0.006 -0.012 $4.31 4
(2) BEARING (BLACK) 3V1074070M 3V1-07407-0 T=1.5 0 -0.006 $4.20 4
(2) BEARING (BROWN) 3V1074080M 3V1-07408-0 T=1.5 -0.006 -0.012 $4.31 4
(3) PISTON 3V1000010M 3V1-00001-0 $27.35 2
(3) PISTON (.05MM O/S) 3V1000040M 3V1-00004-0 OPTION $34.44 2
(4) PISTON RING TOP 3V1000110M 3V1-00011-0 $7.05 2
(4) PISTON RING TOP (0.5MM O/S) 3V1000140M 3V1-00014-0 OPTION $7.18 2
(5) PISTON RING 2ND 3V1000120M 3V1-00012-0 $6.30 2
(5) PISTON RING 2ND (0.5MM O/S) 3V1000150M 3V1-00015-0 OPTION $6.03 2
(6) PISTON OIL RING 3V1000130M 3V1-00013-0 $9.41 2
(6) PISTON OIL RING (0.5MM O/S) 3V1000160M 3V1-00016-0 OPTION $6.95 2
(7) PISTON PIN 332000210M 332-00021-0 $7.34 2
(8) PISTON PIN CLIP 350000241M 350-00024-1 $0.86 4
(9) CONNECTING ROD 3V1000400M 3V1-00040-0 $86.78 2
(9-1) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 4
(10) KEY 3T5101310M 3T5-10131-0 $1.56 2
(11) OIL SEAL 30-45-8 3V1001210M 3V1-00121-0 $12.26 2
